AEF Series

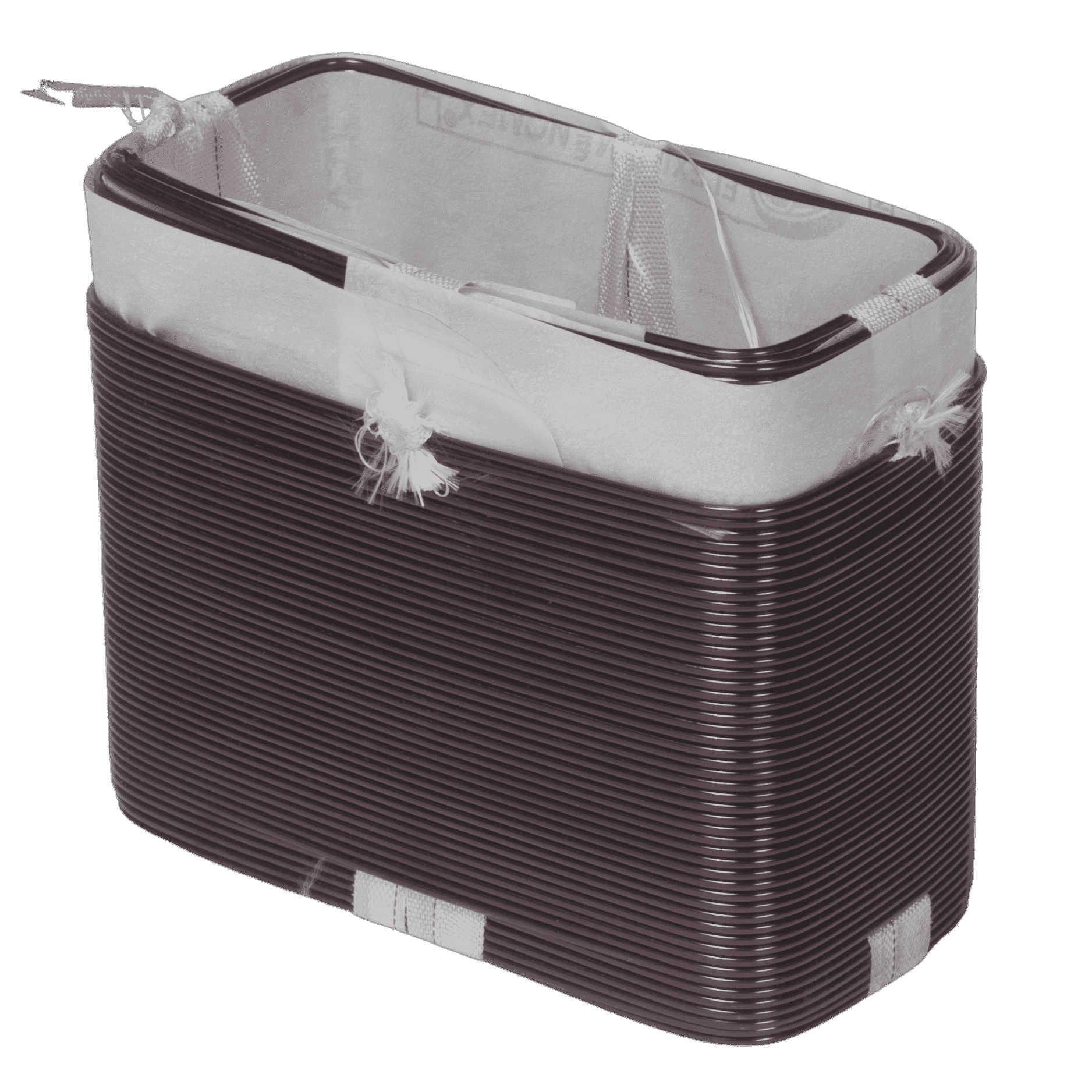

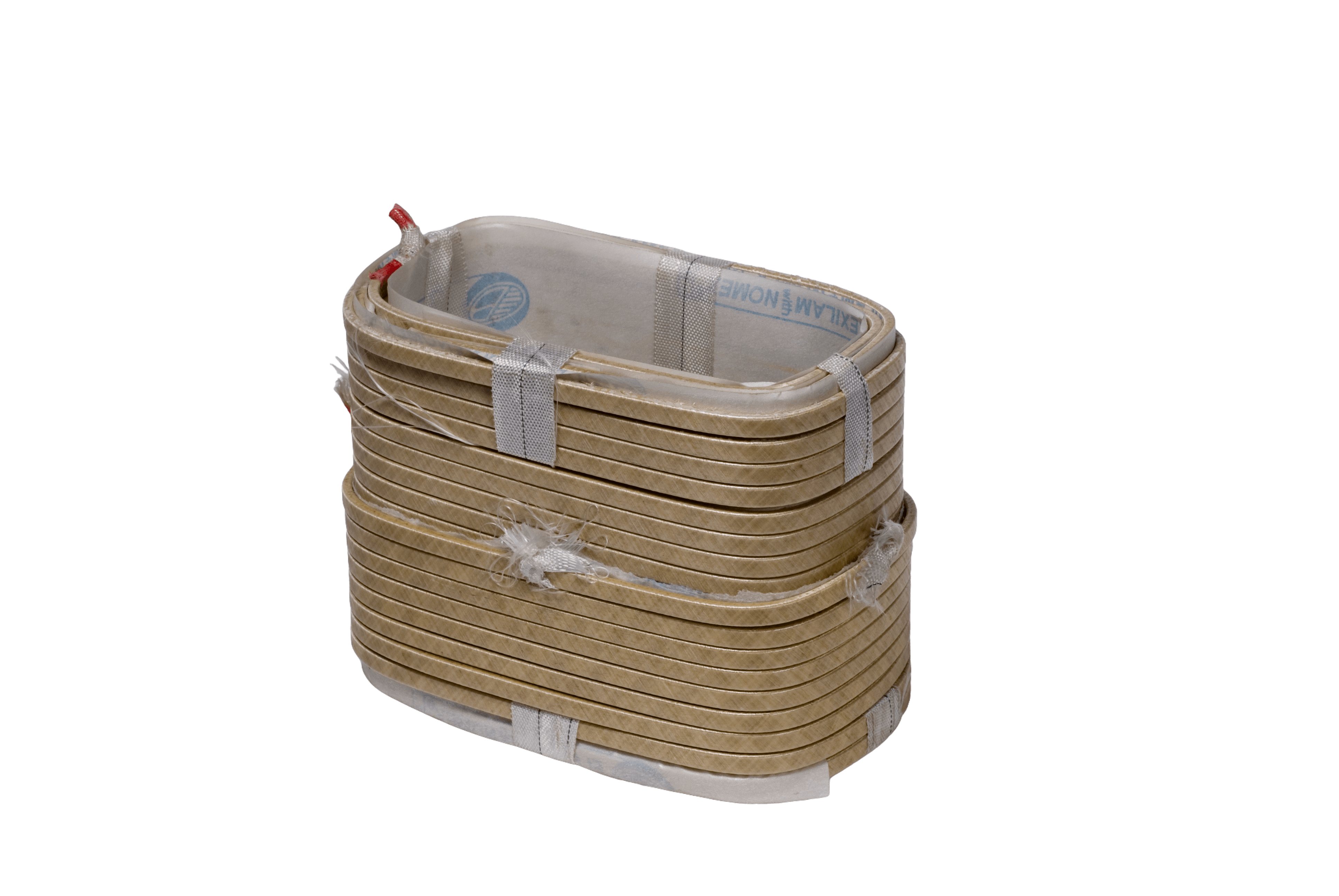

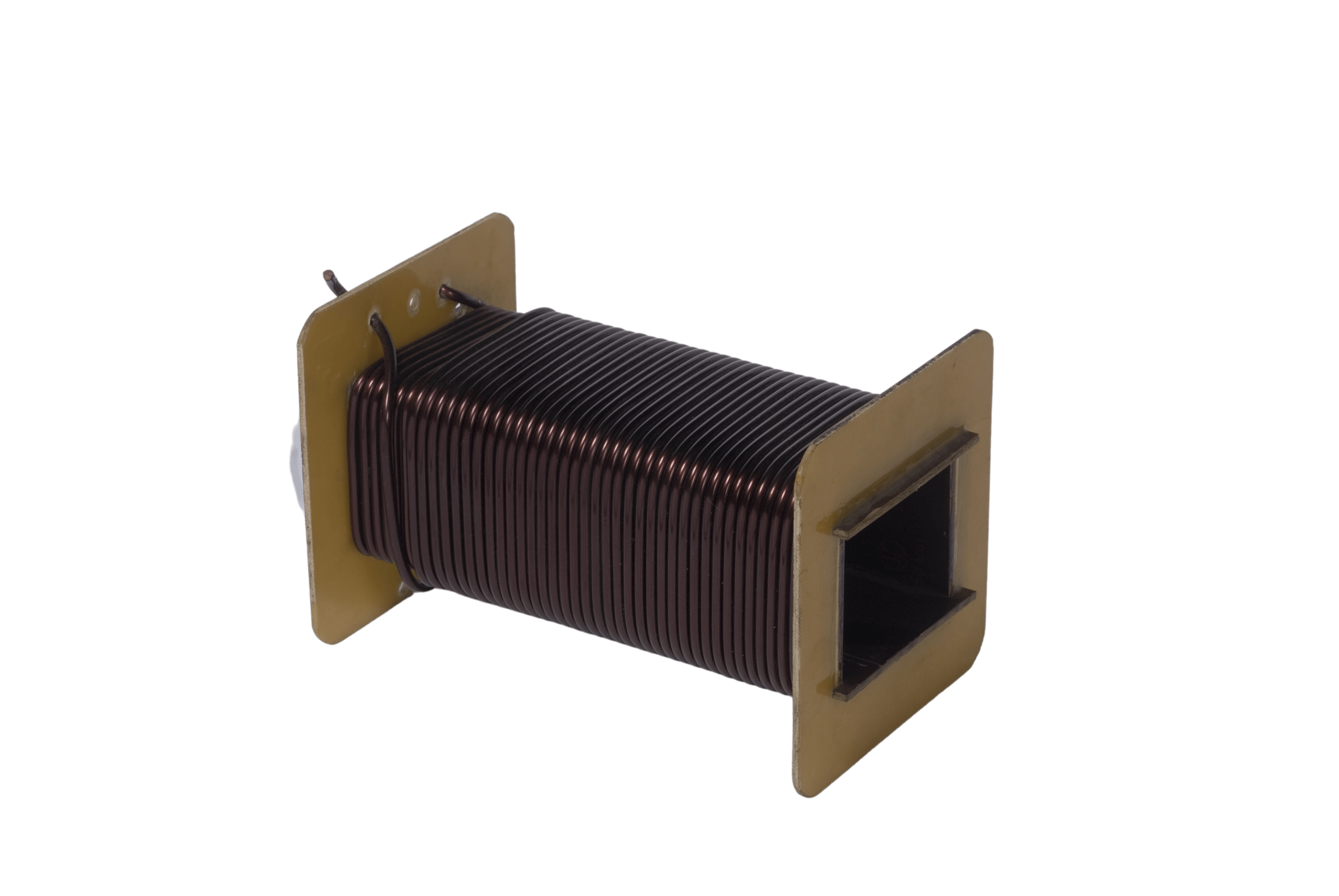

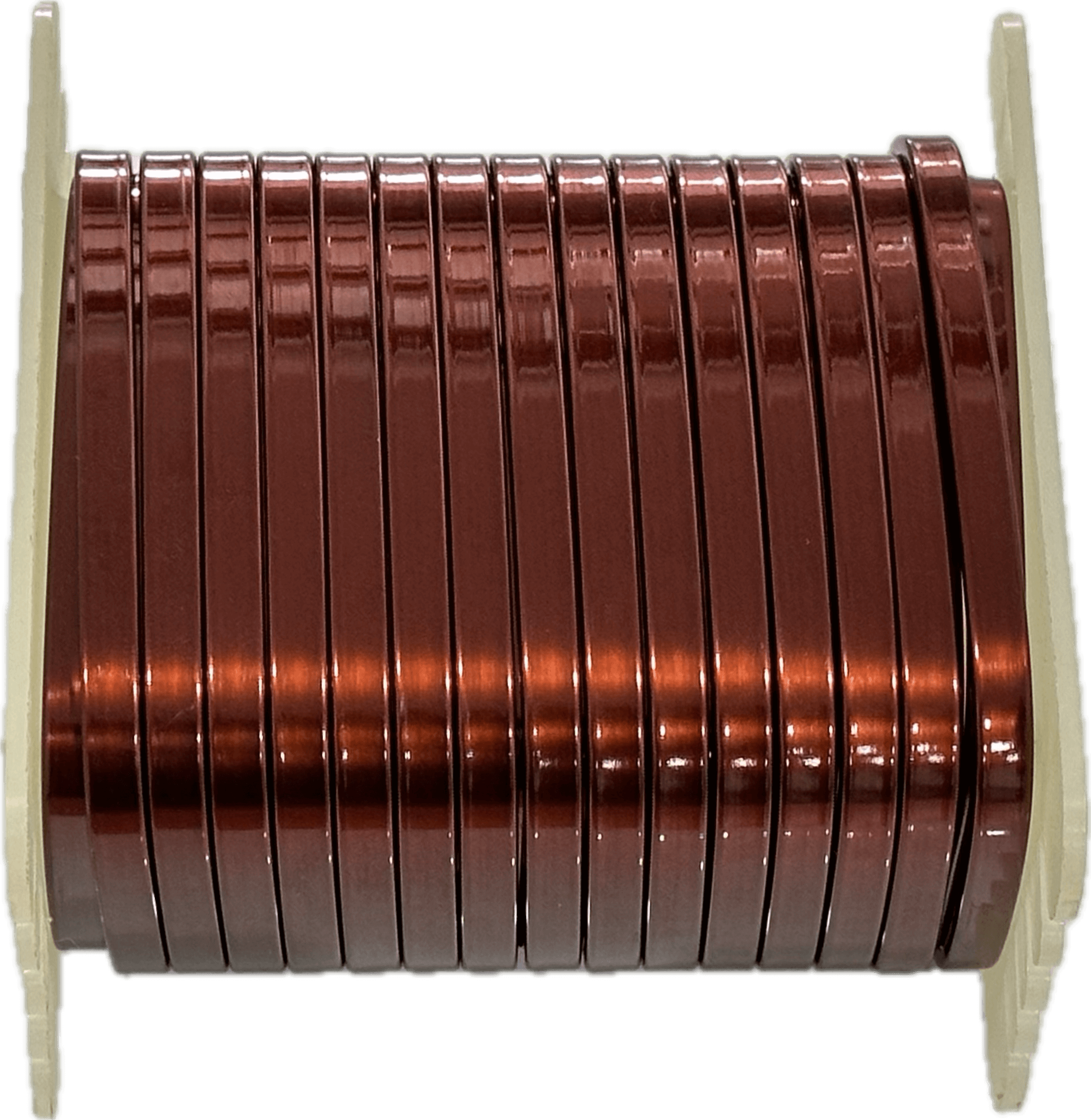

Step into a world of effortless operation and unrivaled convenience with the AEF series winding machine. Its extra-large dimensions make tackling strip and thick wire coils a breeze, allowing operators to intervene smoothly and efficiently.

Built for L.T. Coil Mastery

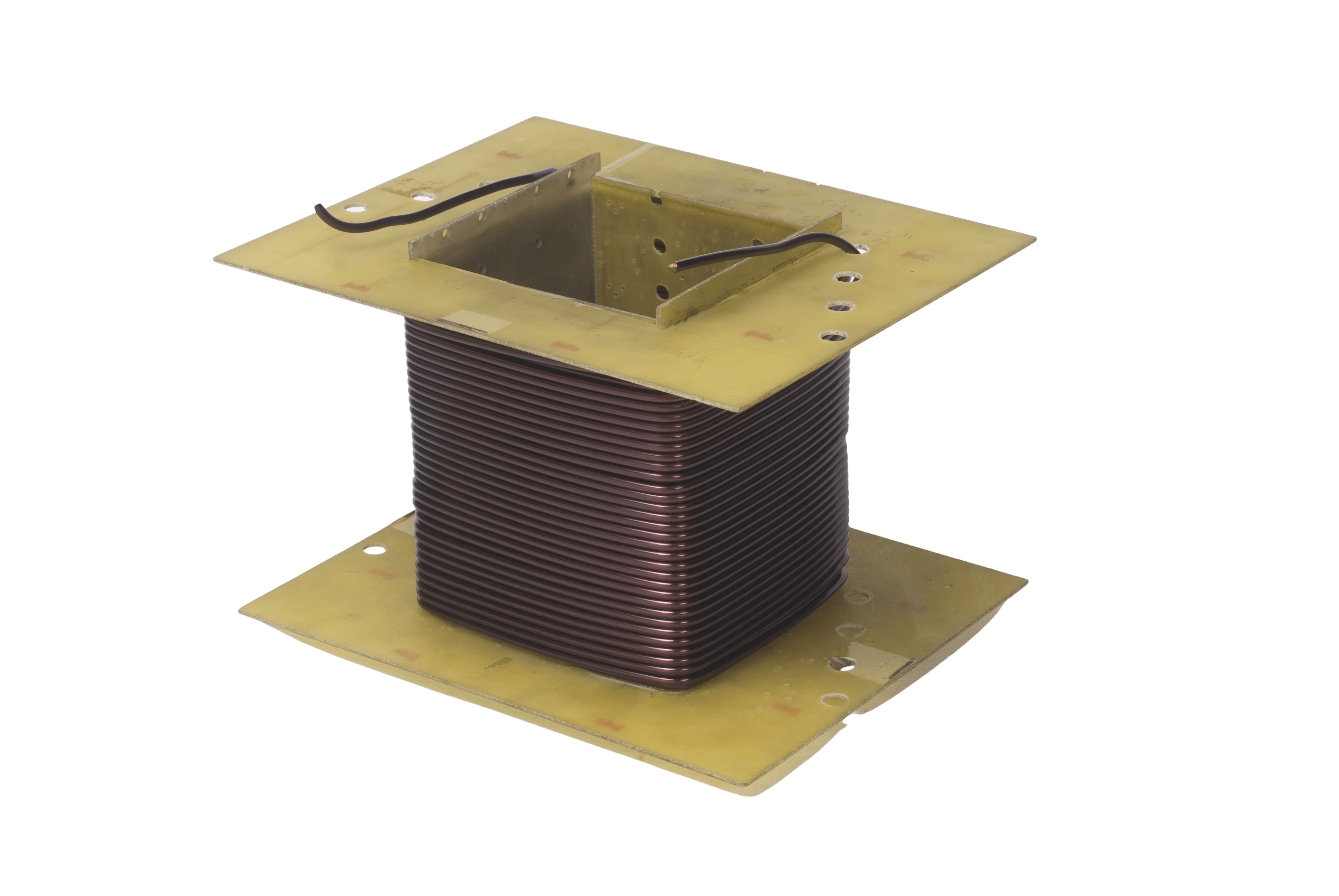

  • Designed for Your Needs: The AEF series is specifically engineered to excel in L.T. coil winding for transformers. Say goodbye to frustrations and hello to optimized performance.
  • Effortless Control: Enjoy variable speed control with a dedicated knob, enhanced by a Jog facility with a foot switch. Navigate your winding process with precision and comfort.
  • Simple Yet Powerful Programming: Menu-driven programming and a large, clear LCD display make setup a walk in the park. Add, modify, and list programs with ease, empowering your operators.

Unleash Unmatched Power and Precision

  • Torque You Can Trust: The AEF series boasts an AC vector drive and gearbox, delivering exceptional torque for even the thickest wire/strip coils.
  • Dimensional Perfection: Achieve precise coil dimensions with minimal tolerance thanks to the pneumatic pressure system.

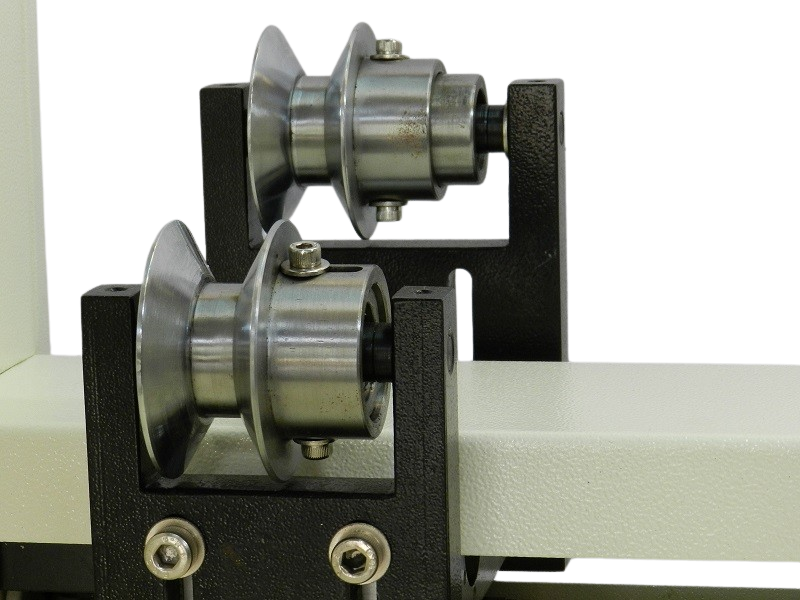

  • Versatility Unbound: Adjustable width pulleys cater to both strip and wire winding, making the AEF a true all-rounder.

Ready to Supercharge Your Operation?

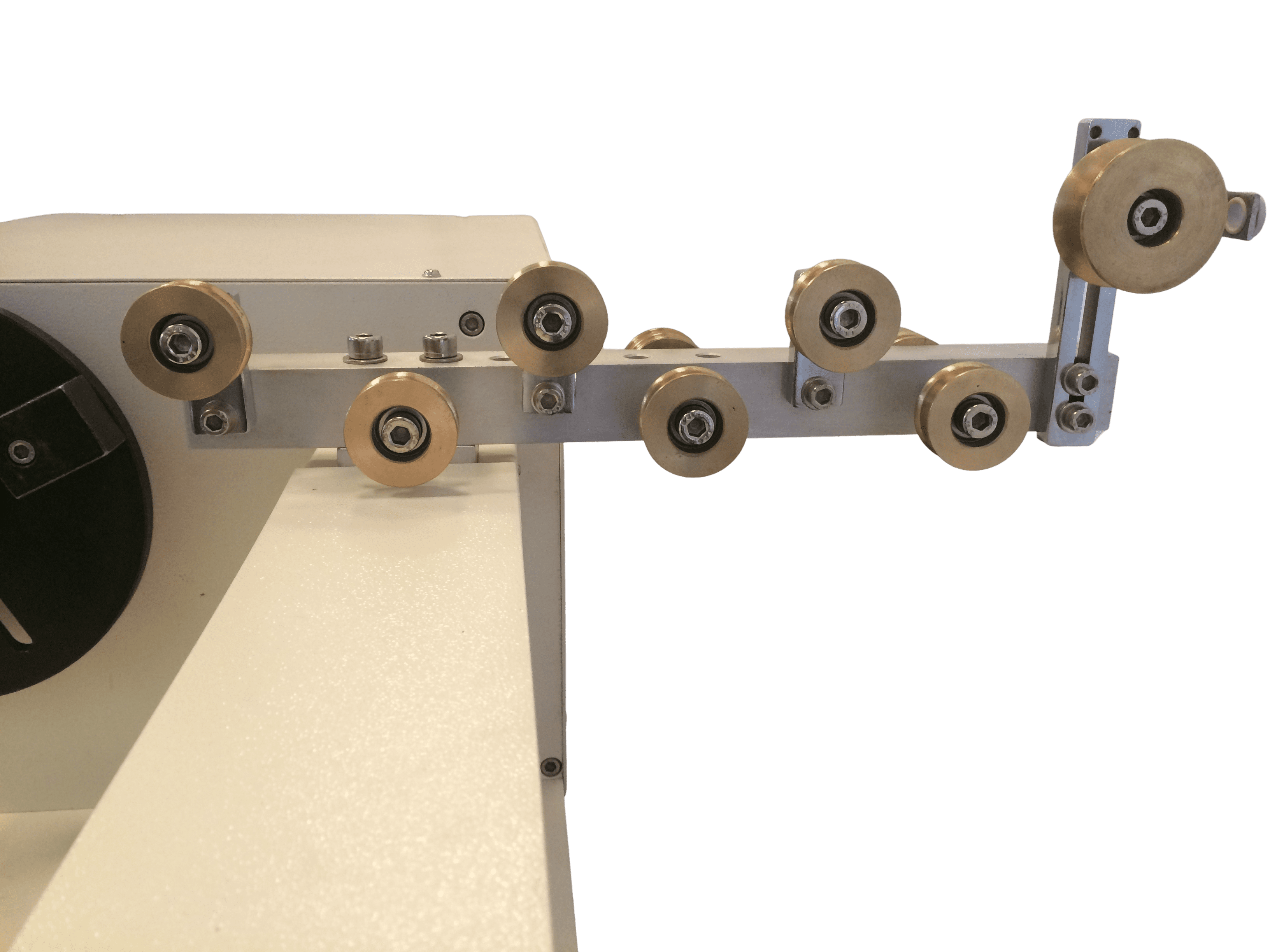

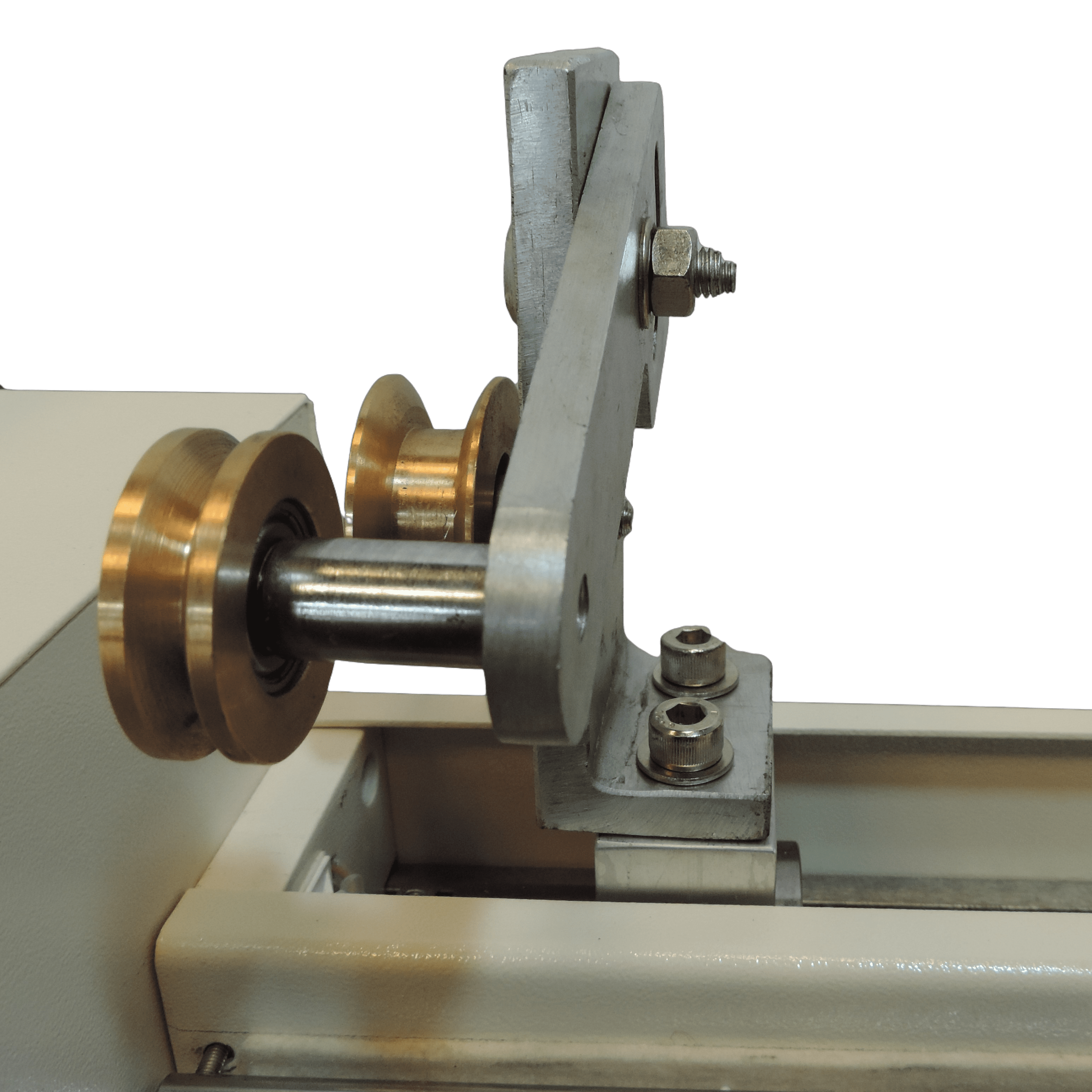

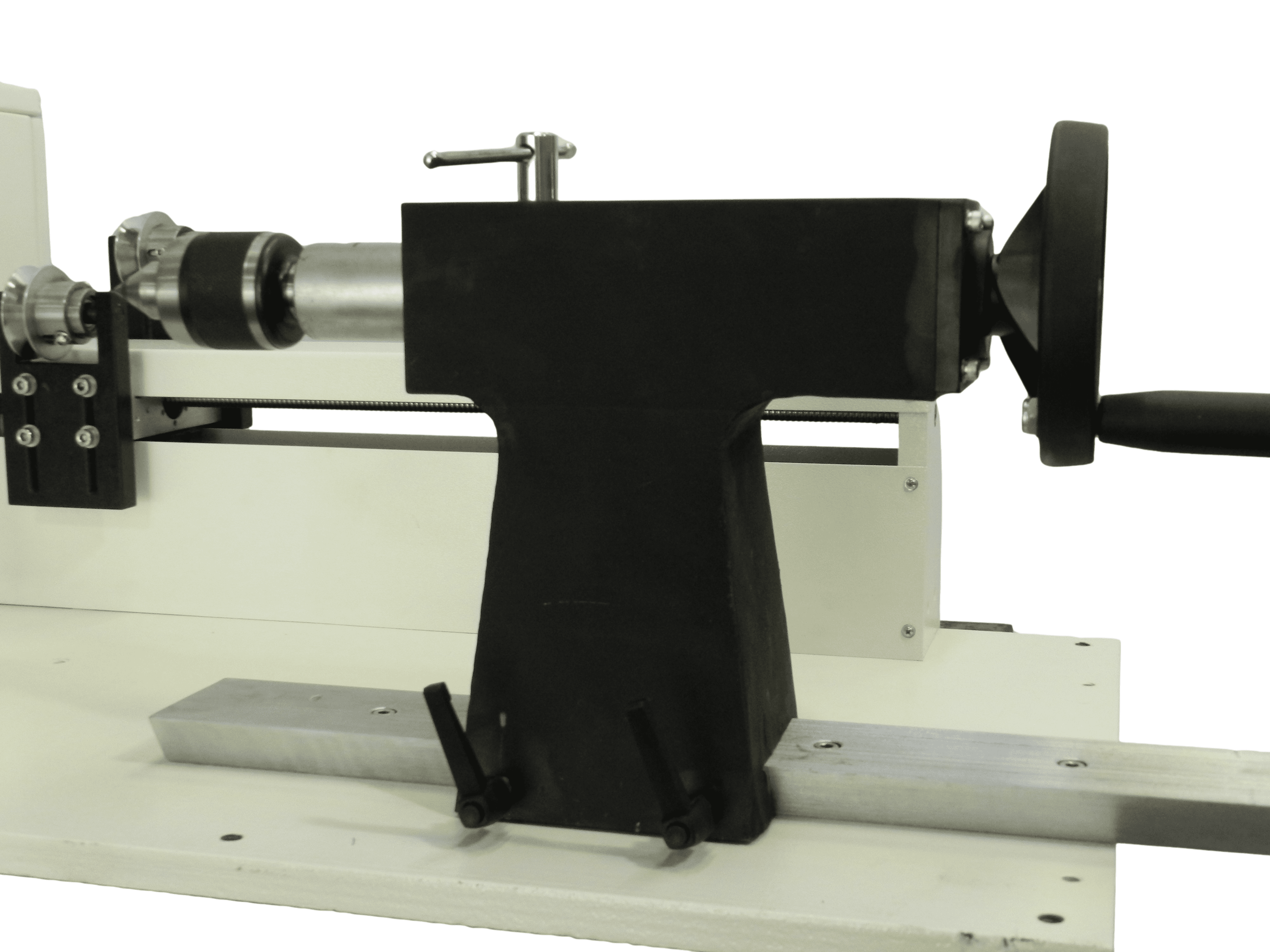

  • Start Strong: Essential accessories like wire guide, faceplate, and tailstock come standard, ensuring a smooth workflow from the get-go.

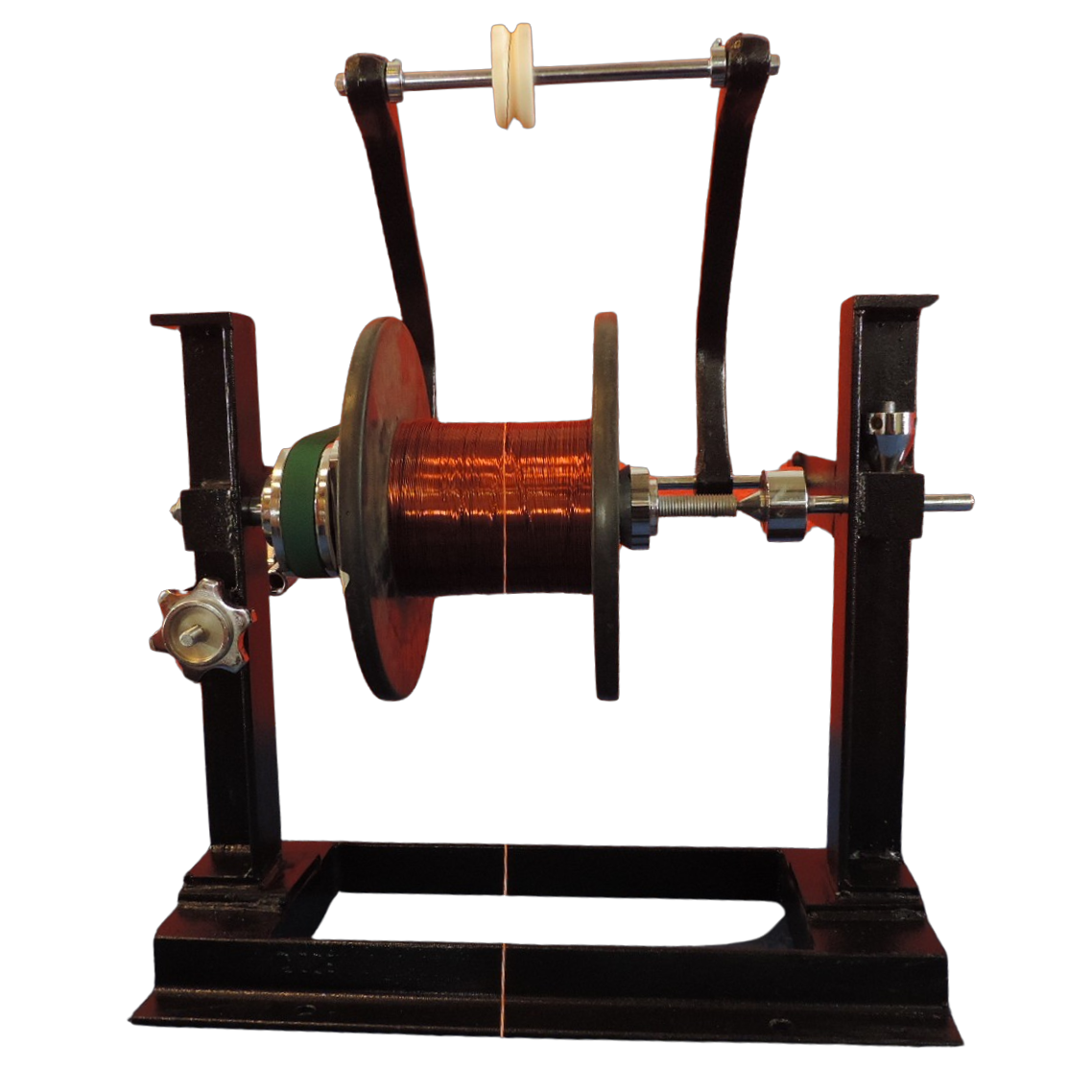

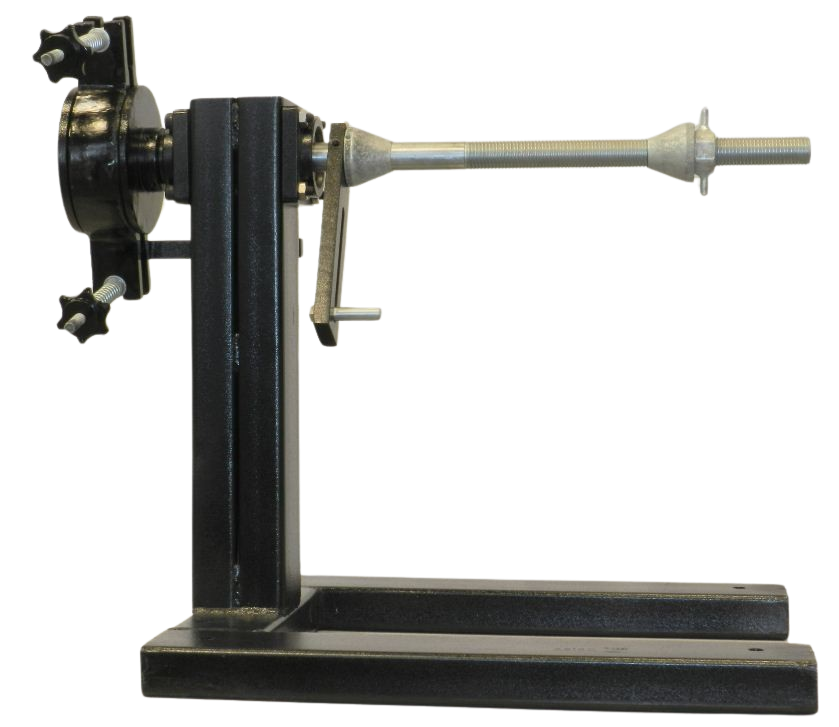

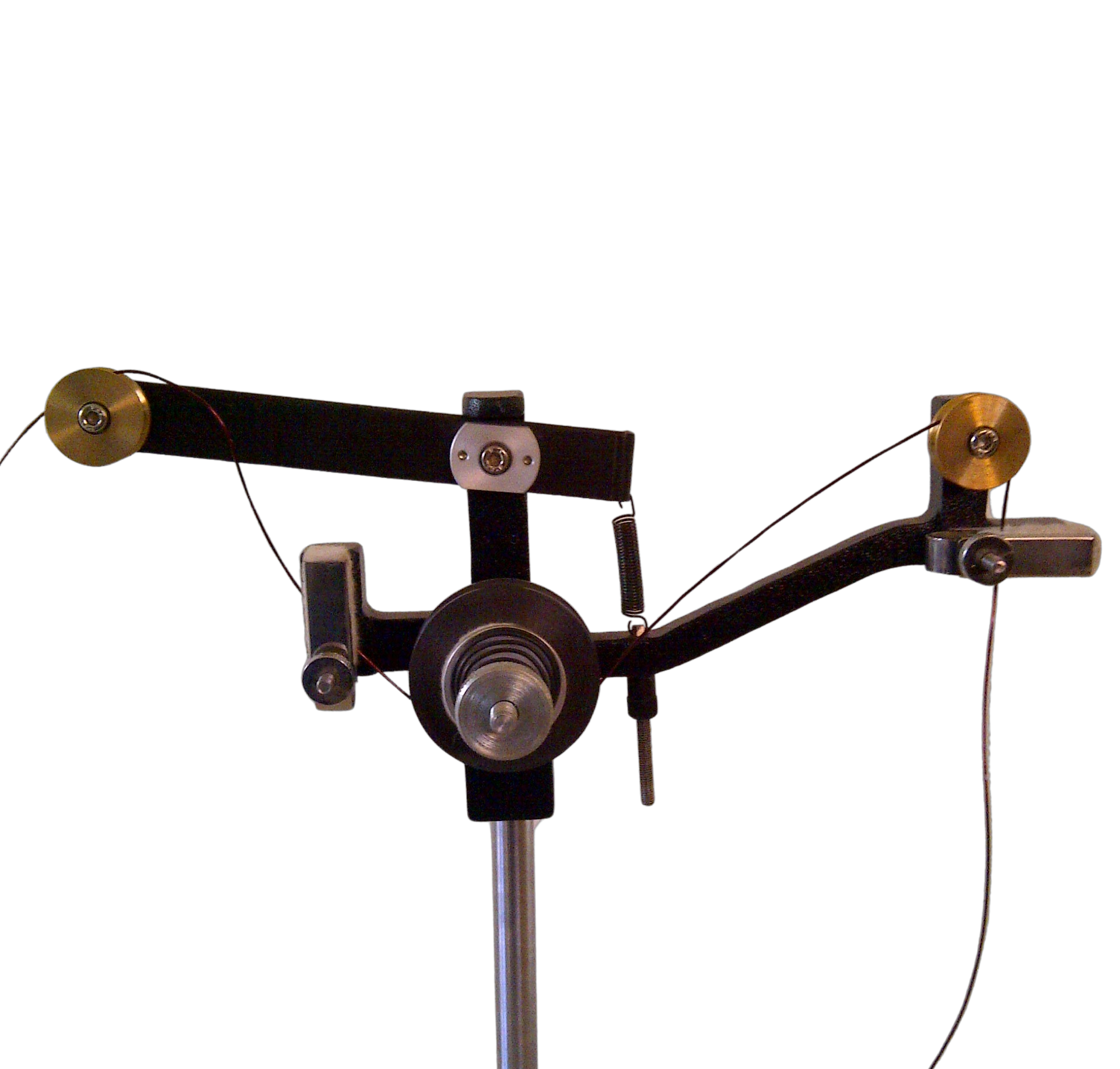

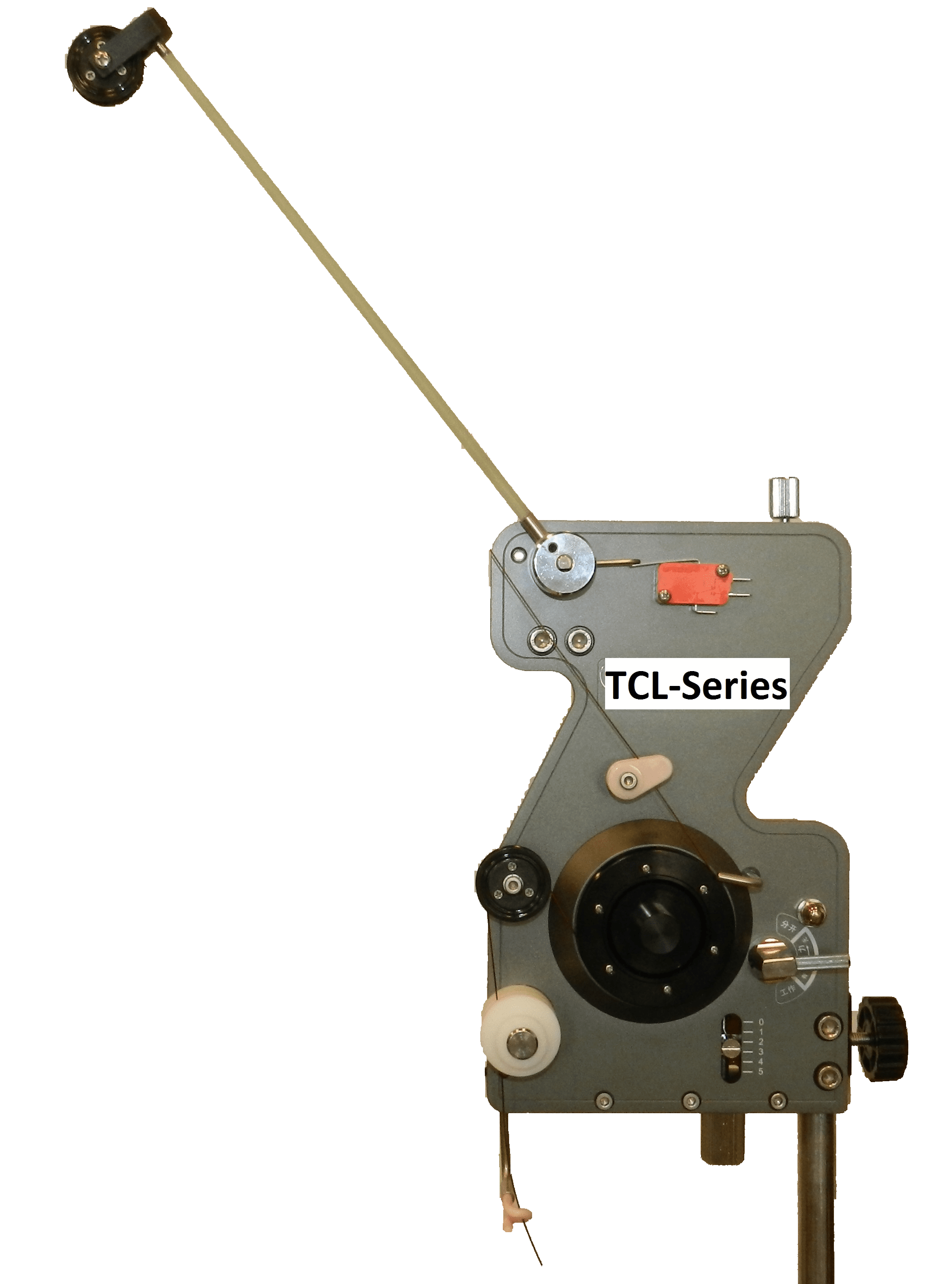

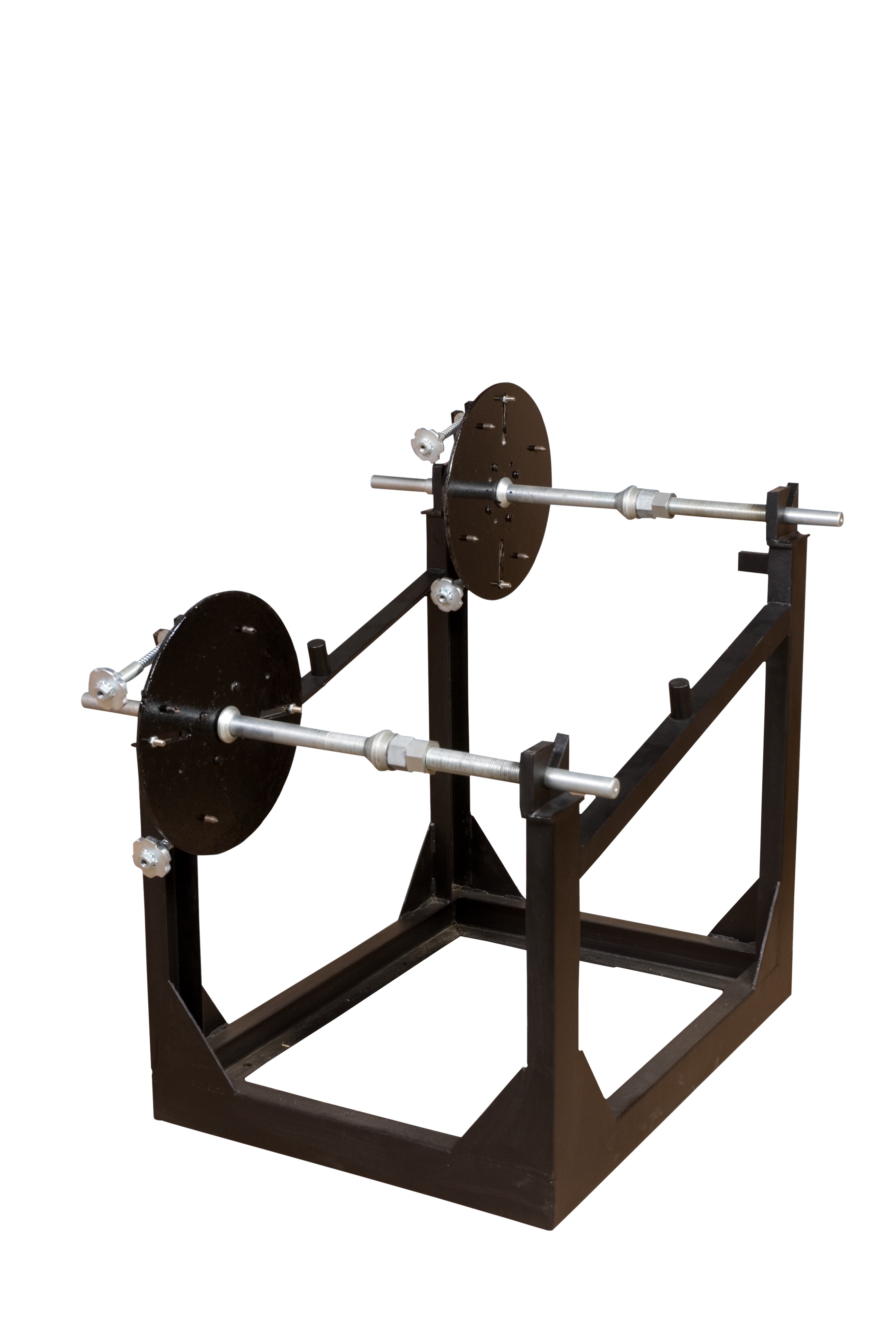

  • Upgrade to Dominate: Expand your capabilities with optional accessories like the tensioner cum spool holder (up to 150lbs) and paper roller holder for interlayer insulation.

The AEF series is more than just a machine; it's a gateway to effortless L.T. coil winding. Experience the freedom of unparalleled convenience and power. Contact us today and unlock the full potential of your production line!

Products & Capabilities

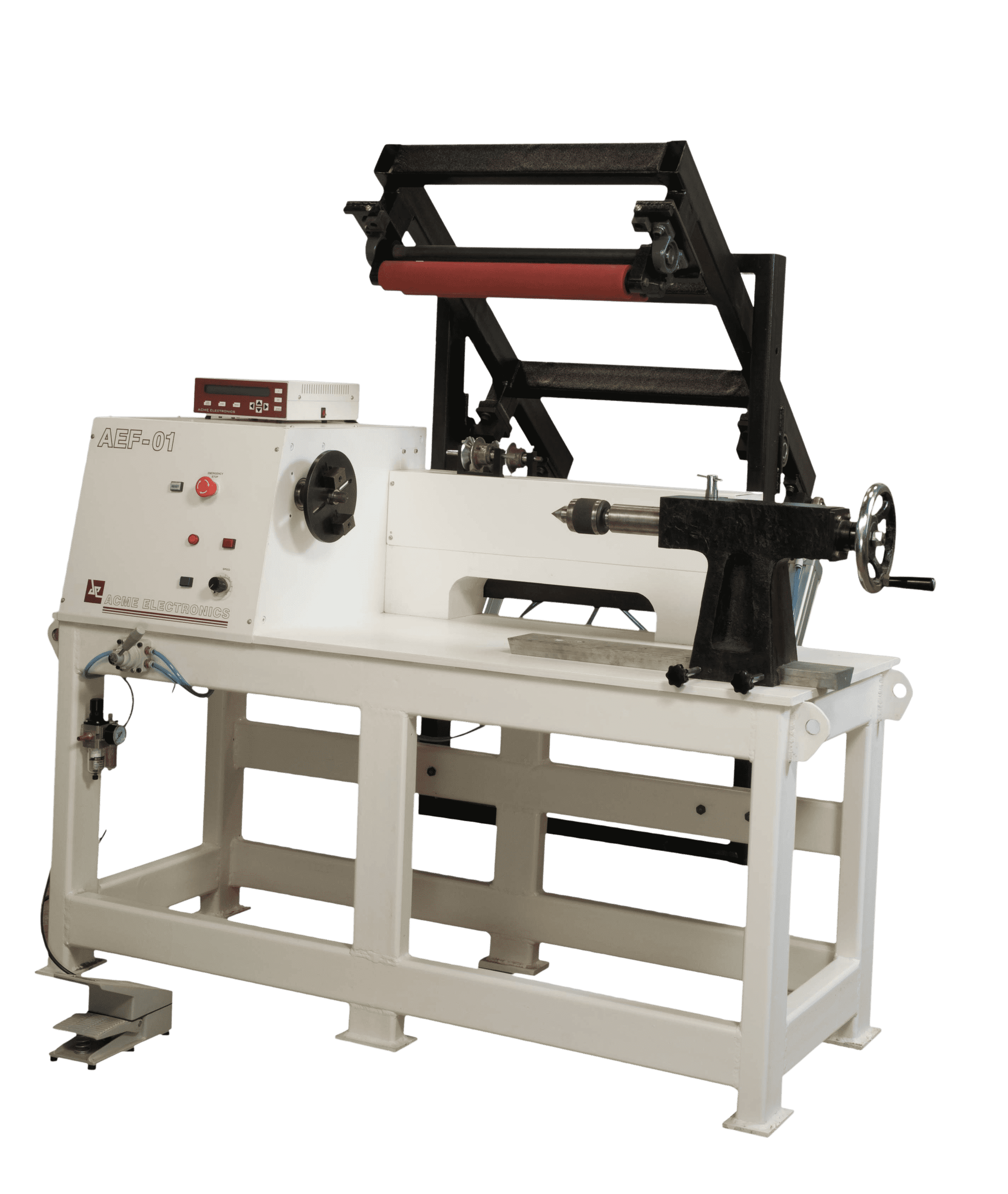

Single Spindle side Loading Winding Machine

AEF - 01 Sigle Spindle Side Loading Winding Machine

Inch mm
Wire Size upto (Inch/AWG) 0.2 / 4; 0.6 x 0.12 -
Bobbin Diameter 20 -
Dimensions (W x H x H) 60 x 25 x 45 -
Winding Width 18 -
Speed in rpm 100 -
