Experience the AEX series, cutting-edge winding machines built for demanding tasks. Their compact construction features a robust cast-iron body, ensuring unparalleled durability and stability. Say goodbye to bulky machines and hello to a space-saving powerhouse.
Programming complex winding patterns is now a breeze thanks to the AEX series' wider LCD display. Its intuitive menu-driven interface and clear visuals make setting up even the most intricate processes effortless. No more squinting at tiny screens or deciphering cryptic manuals.

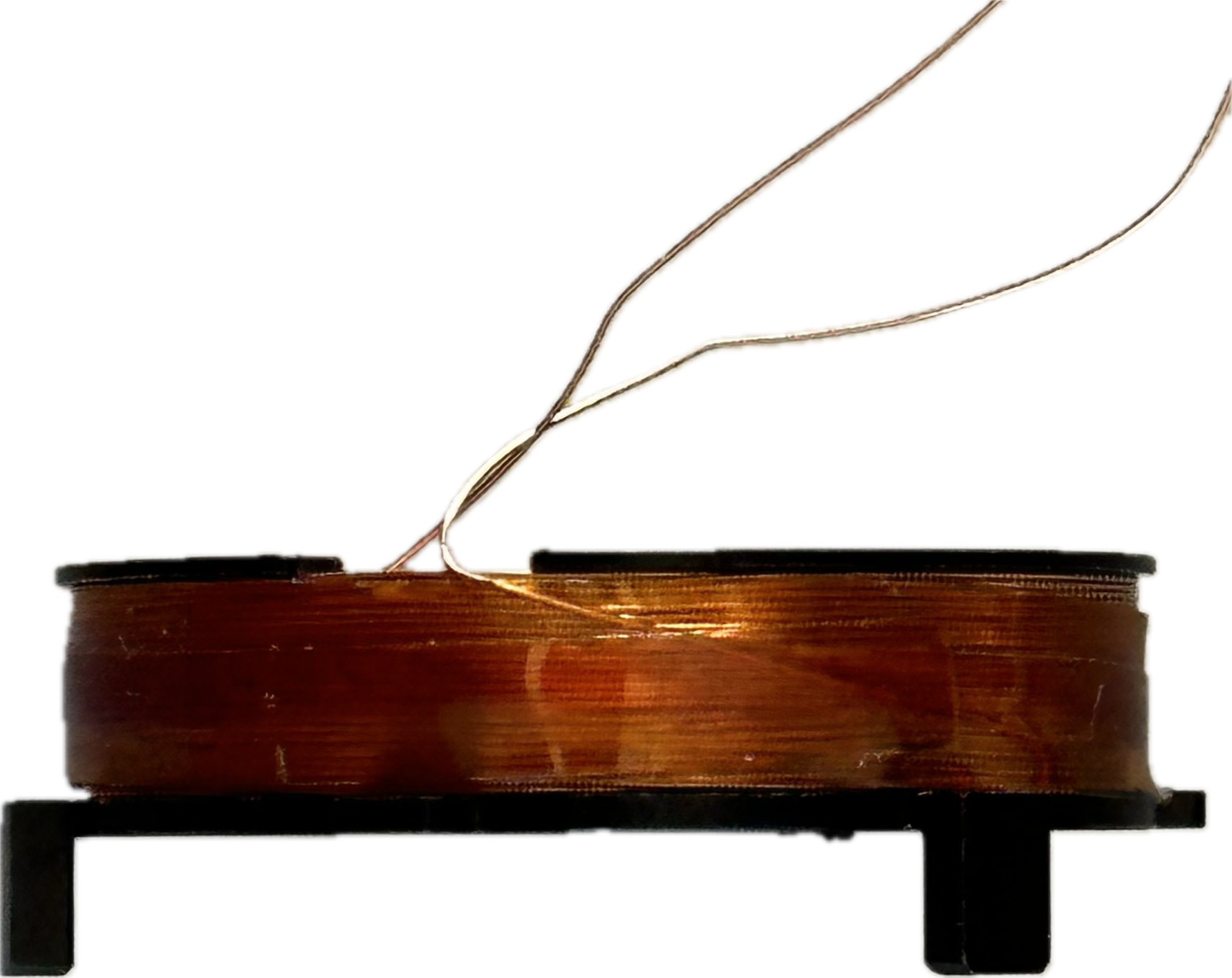

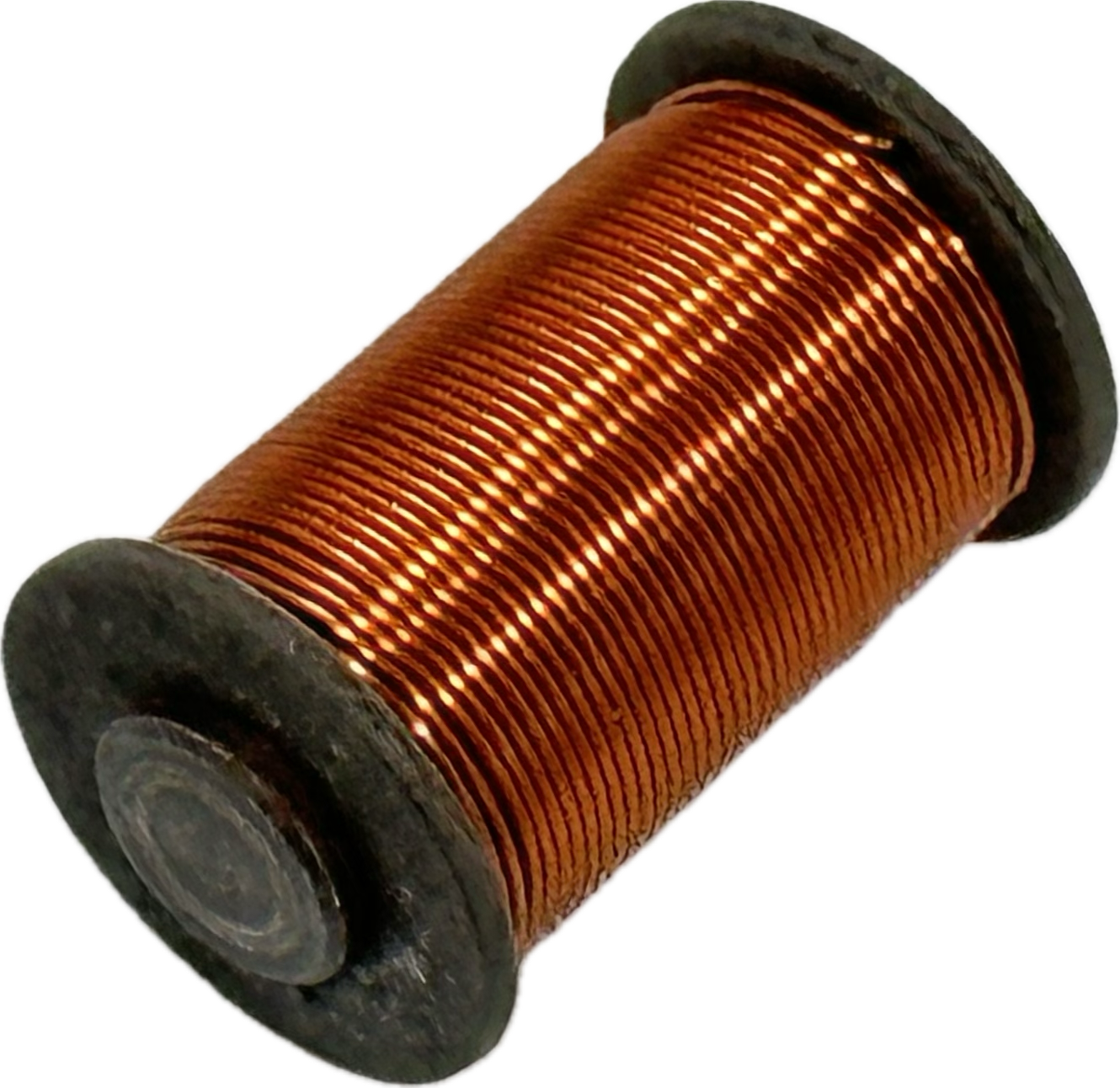

Whether you're winding miniature transformers or complex telecom coils, the AEX series has you covered. Its diverse capabilities cater to a vast range of applications, from RF/IF coils and relay coils to multi-section coils and high-production jobs.
AEX series machines boast advanced features like programmable speed control, soft start/stop, and a double braking system. This ensures unmatched precision with every turn, reaching an astonishing accuracy of 0.05 turns. No more worrying about inconsistencies or wasted materials.
User-friendly programming is key to efficiency. The AEX series offers 99 program storage slots and a large 40x2 LCD display, making adding, modifying, and managing winding patterns a breeze. Its intuitive interface lets you list, run, and delete programs with ease, saving you valuable time and effort.

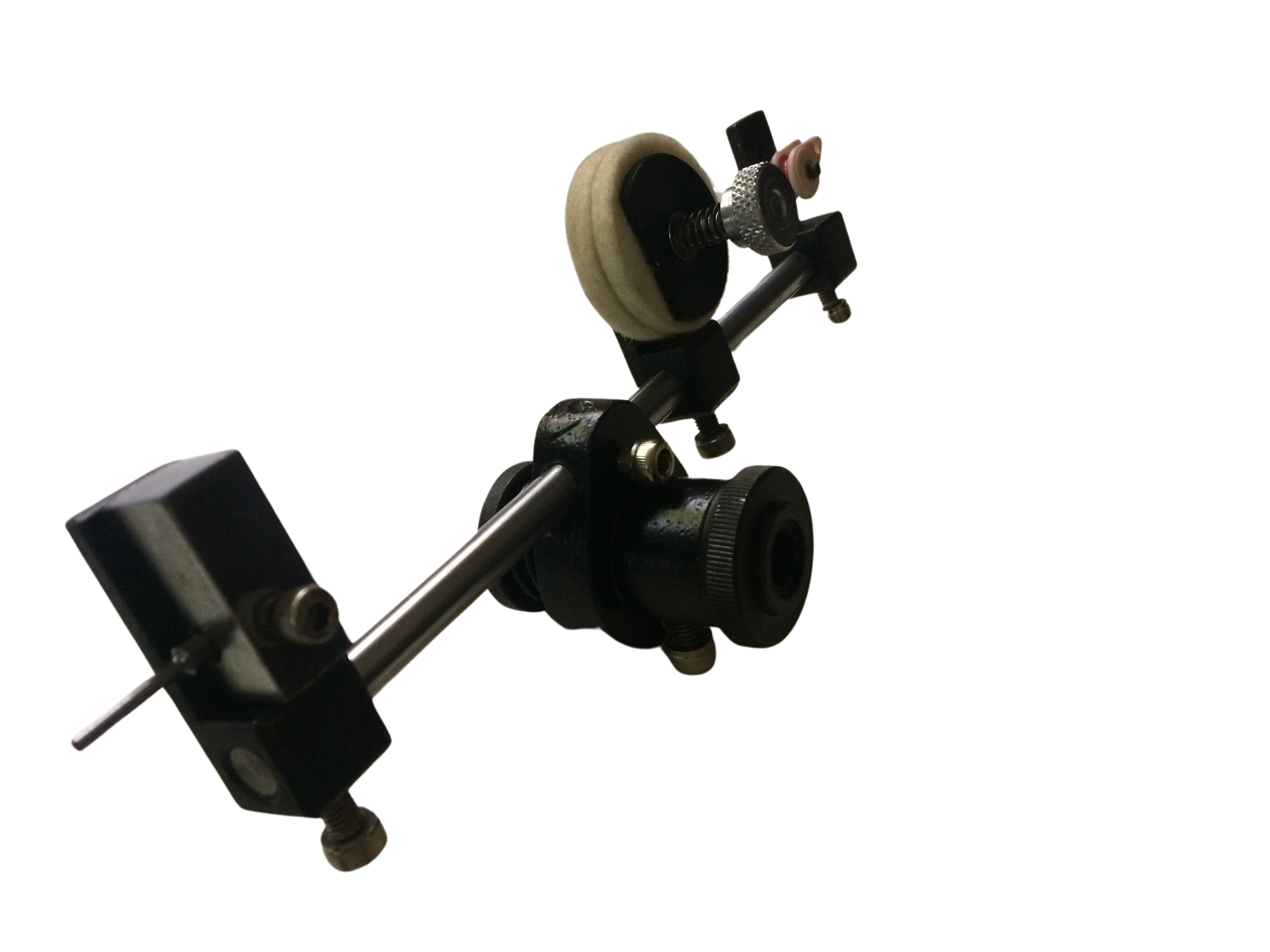

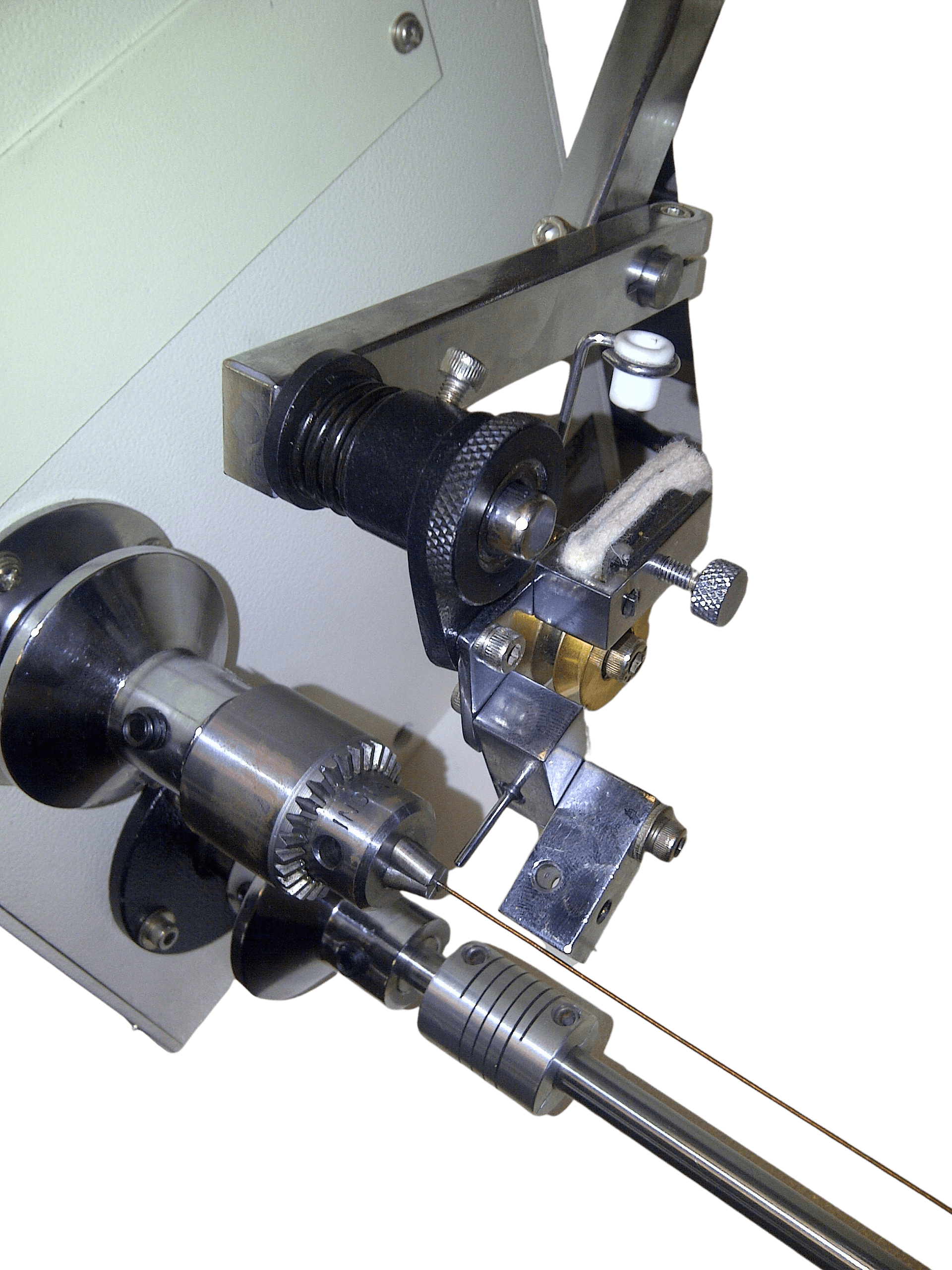

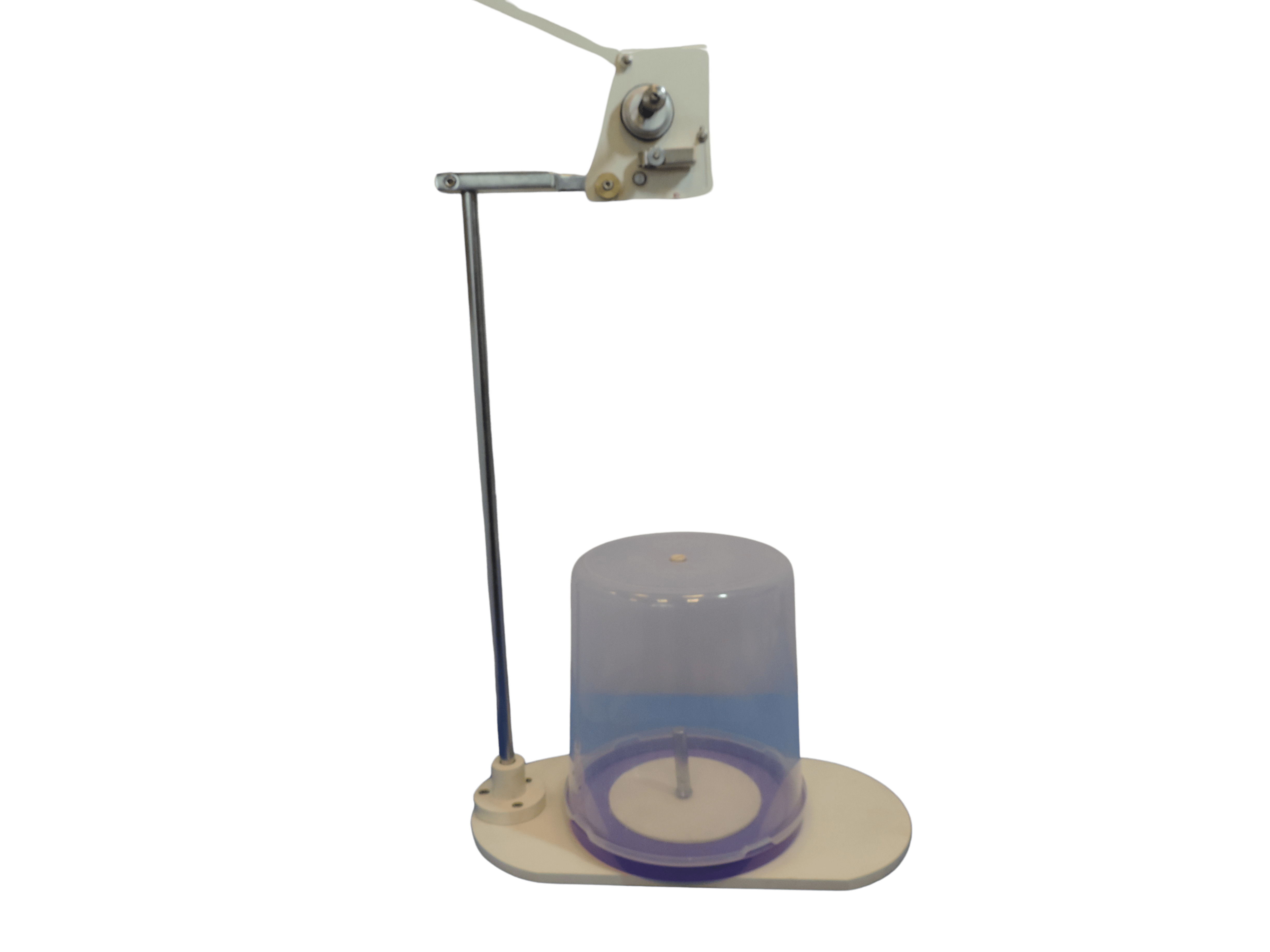

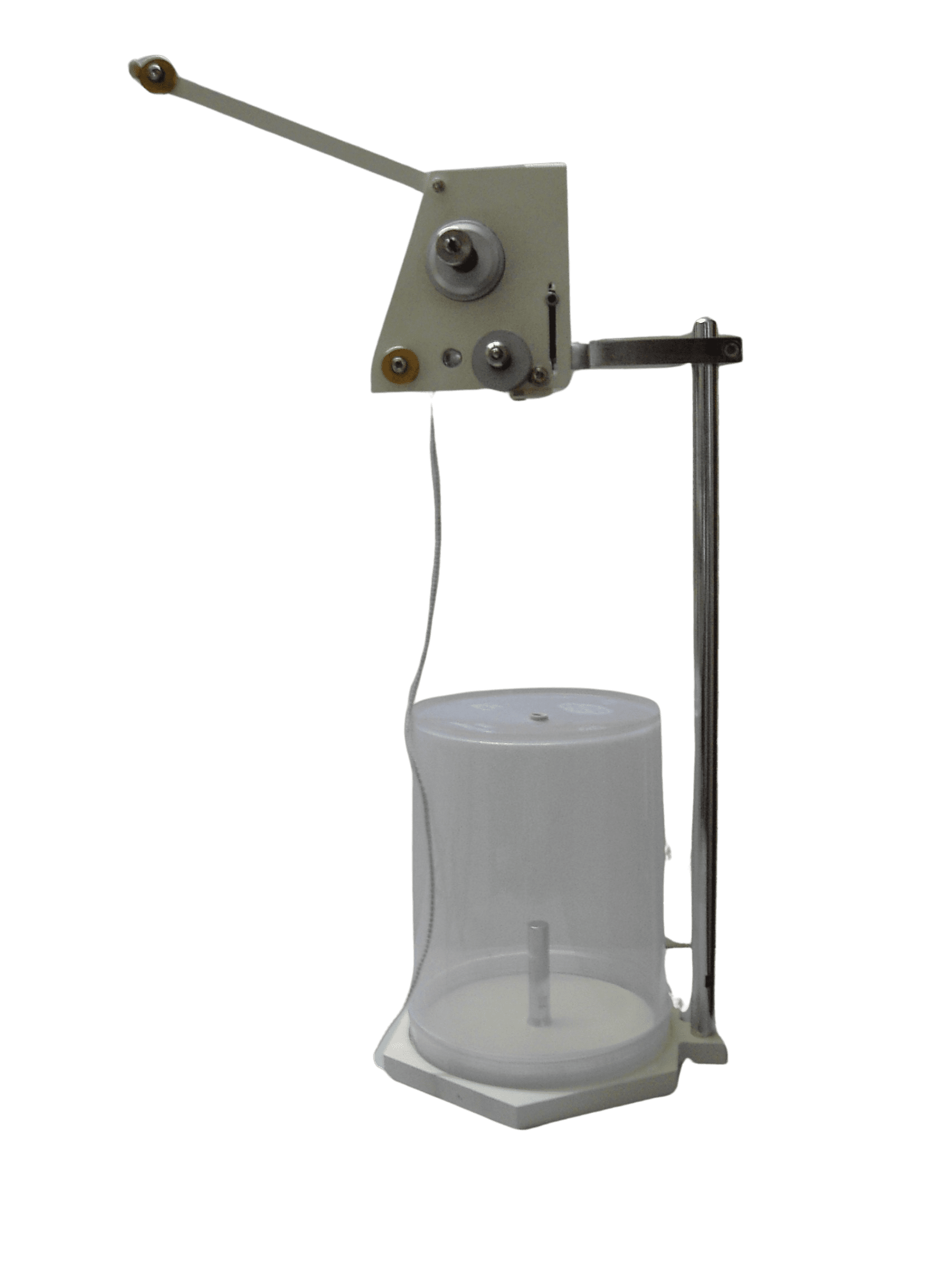

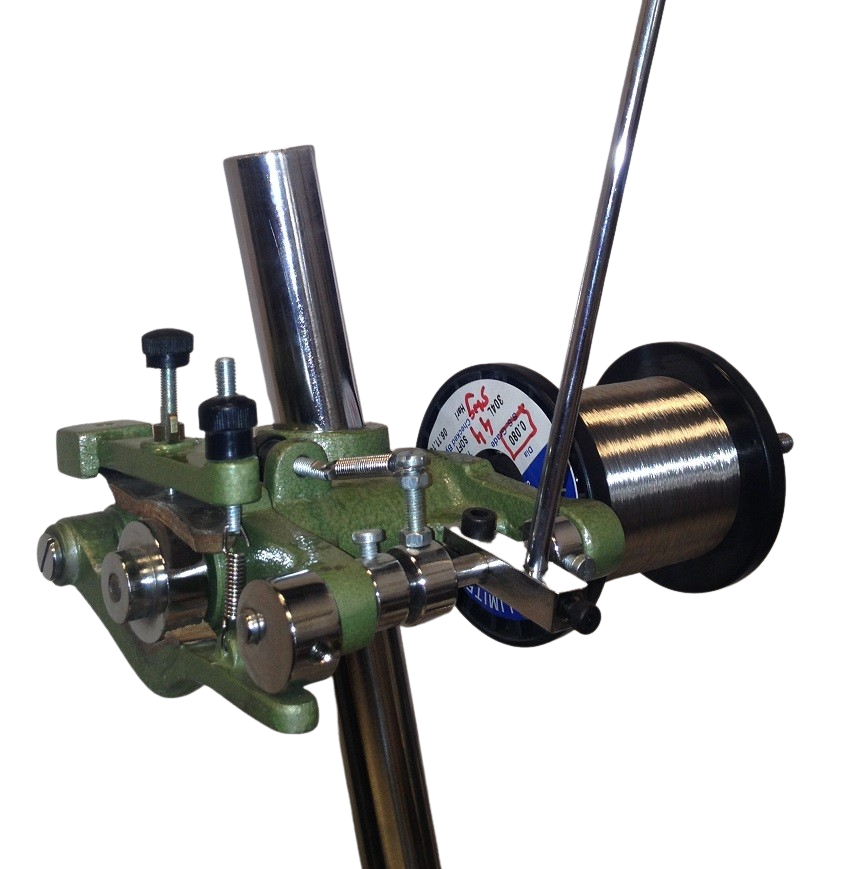

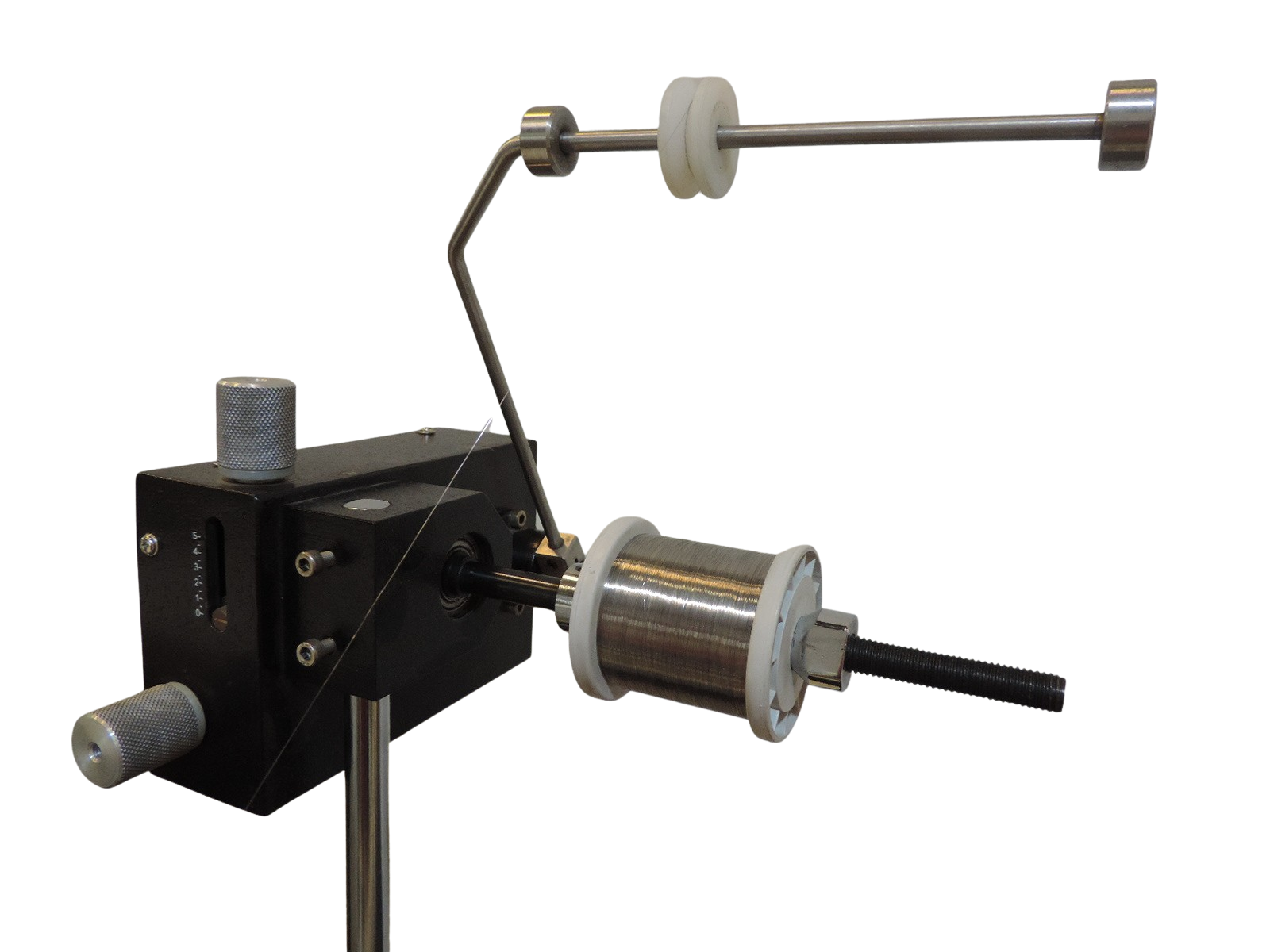

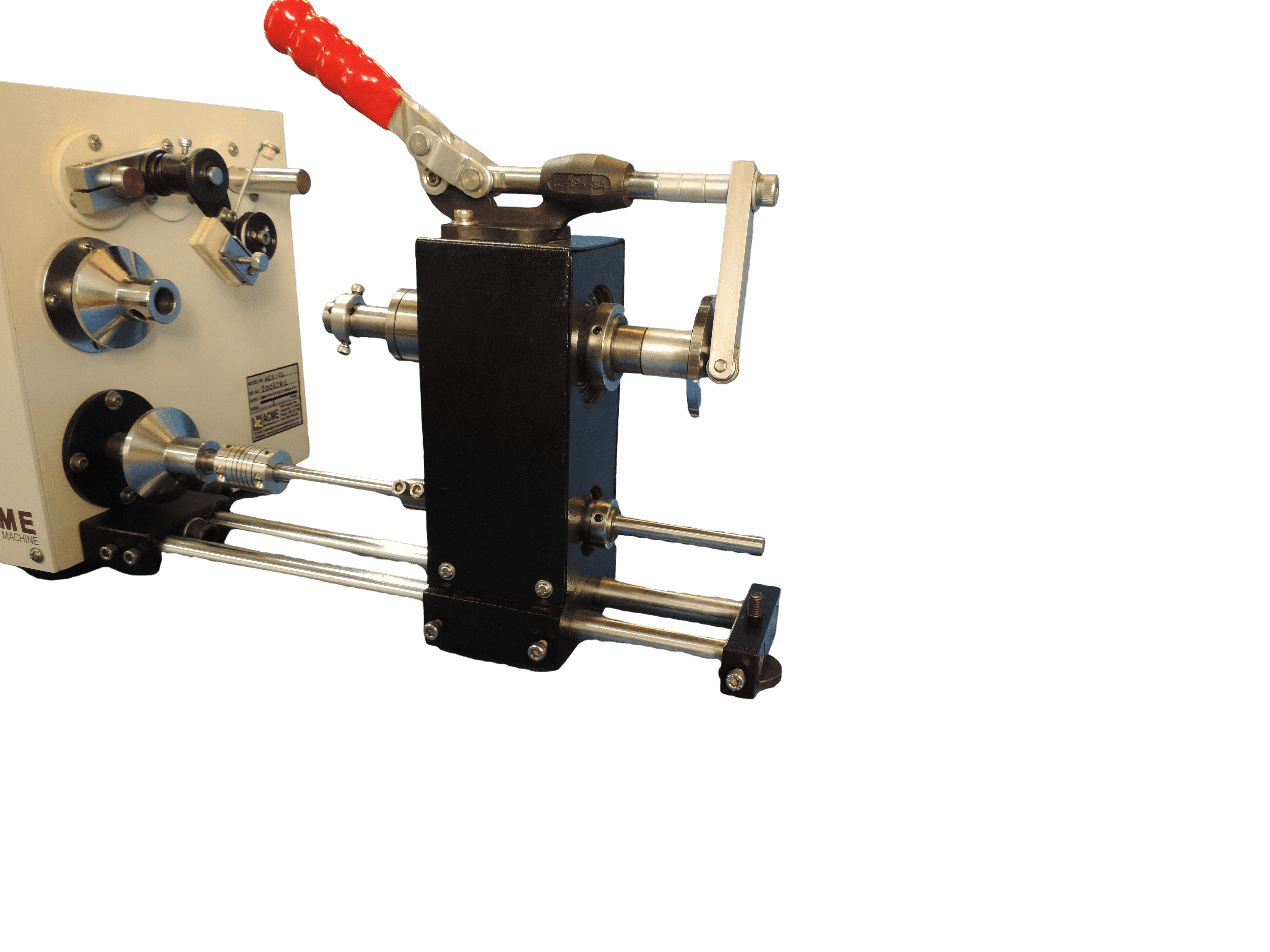

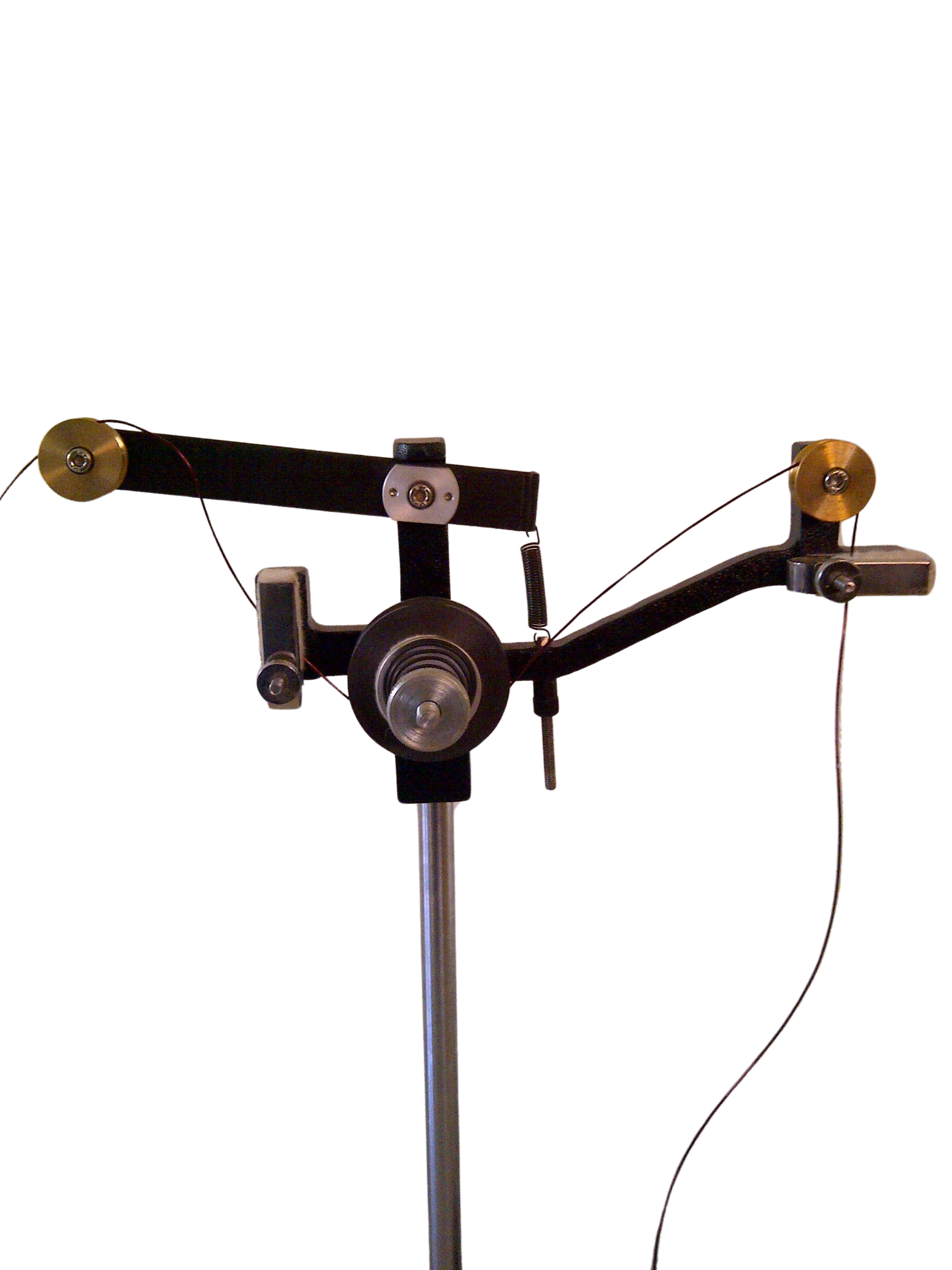

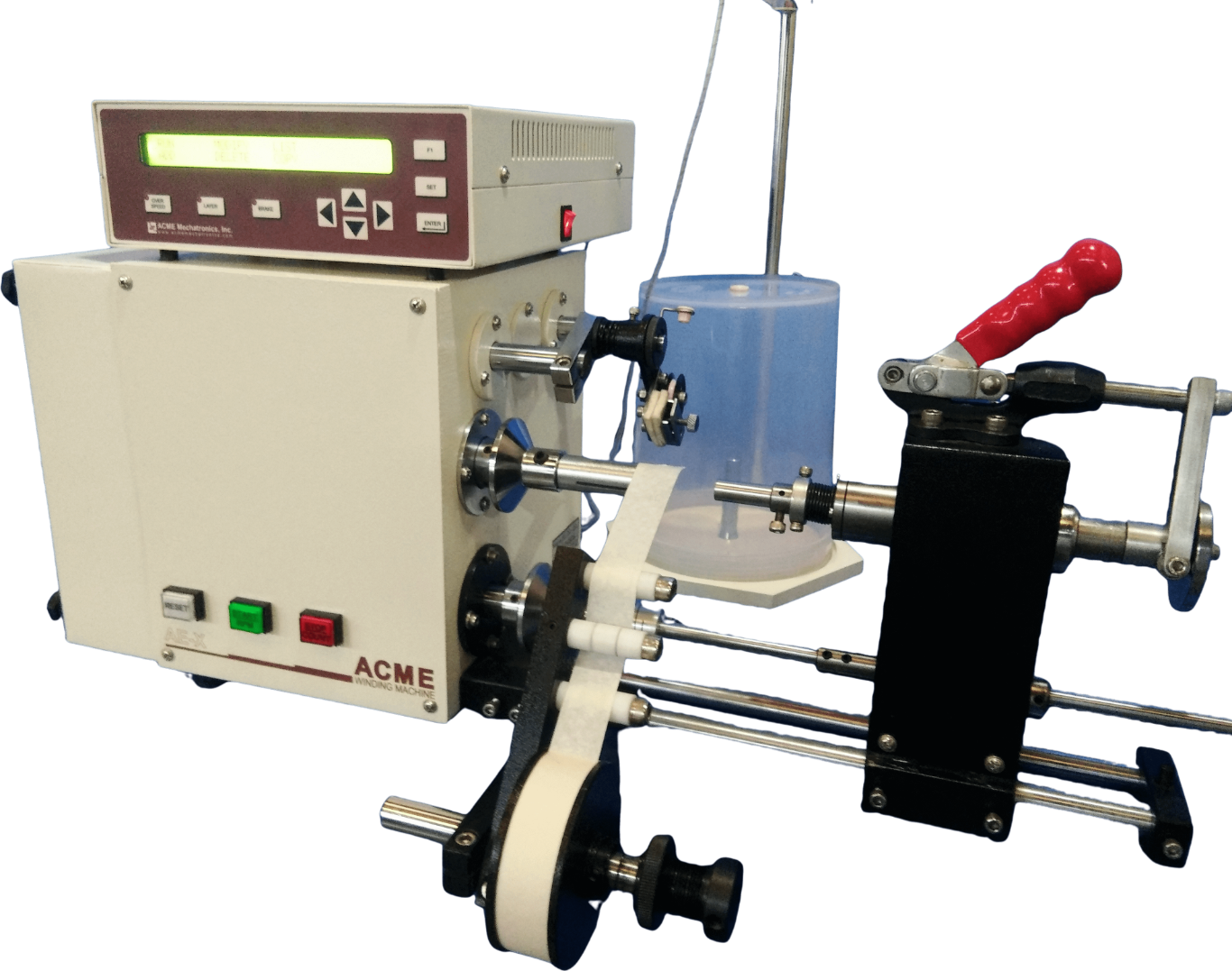

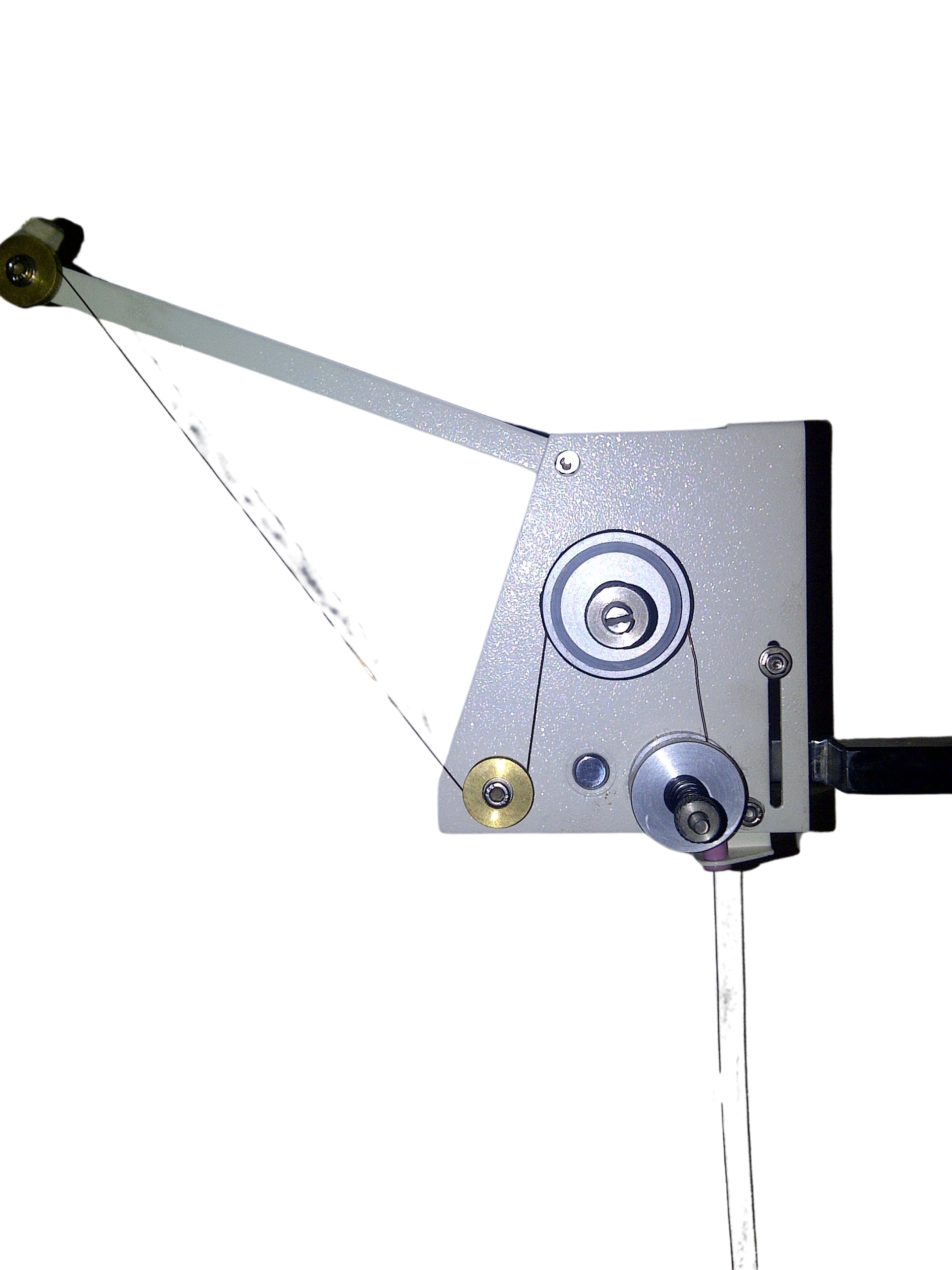

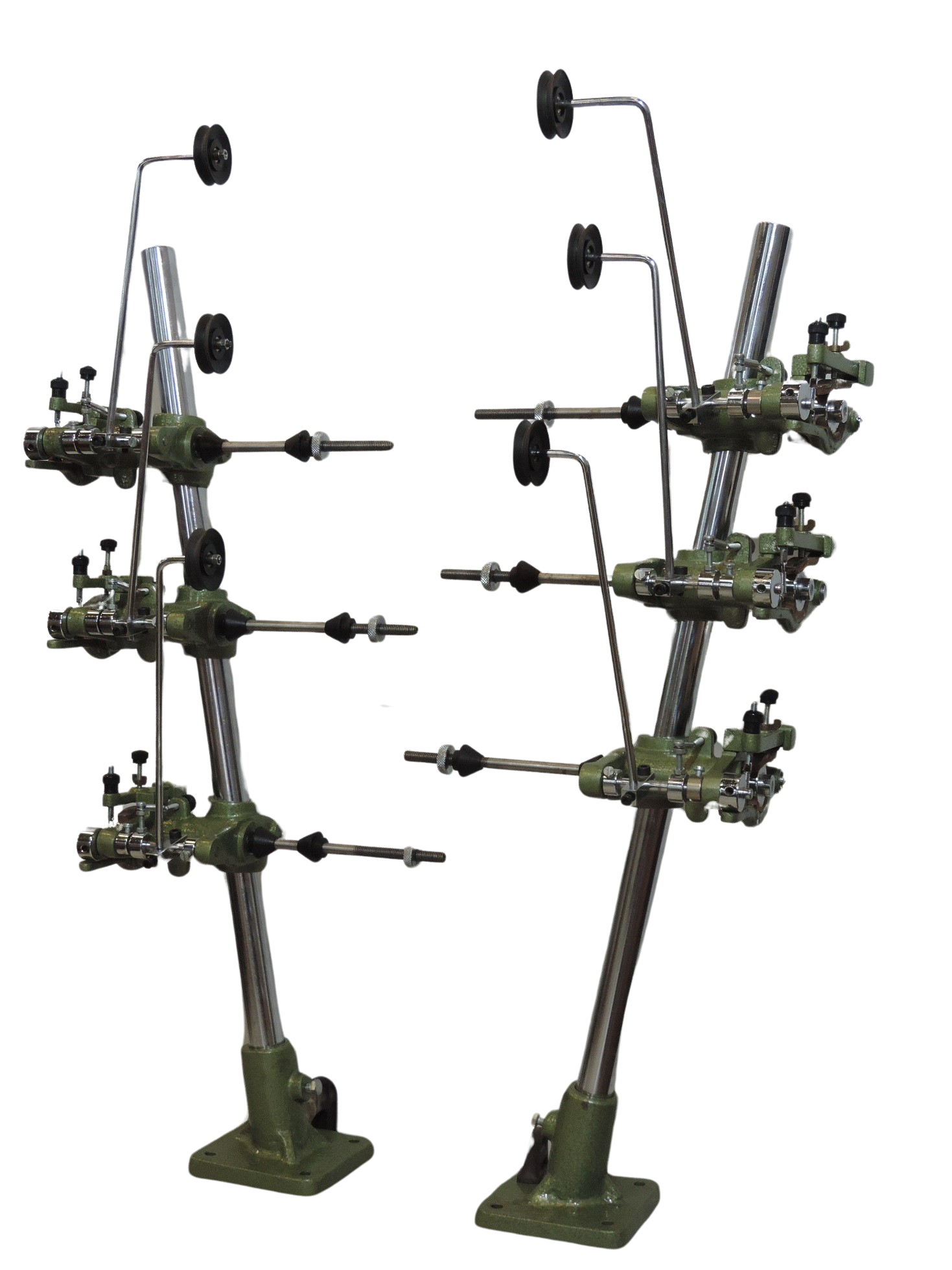

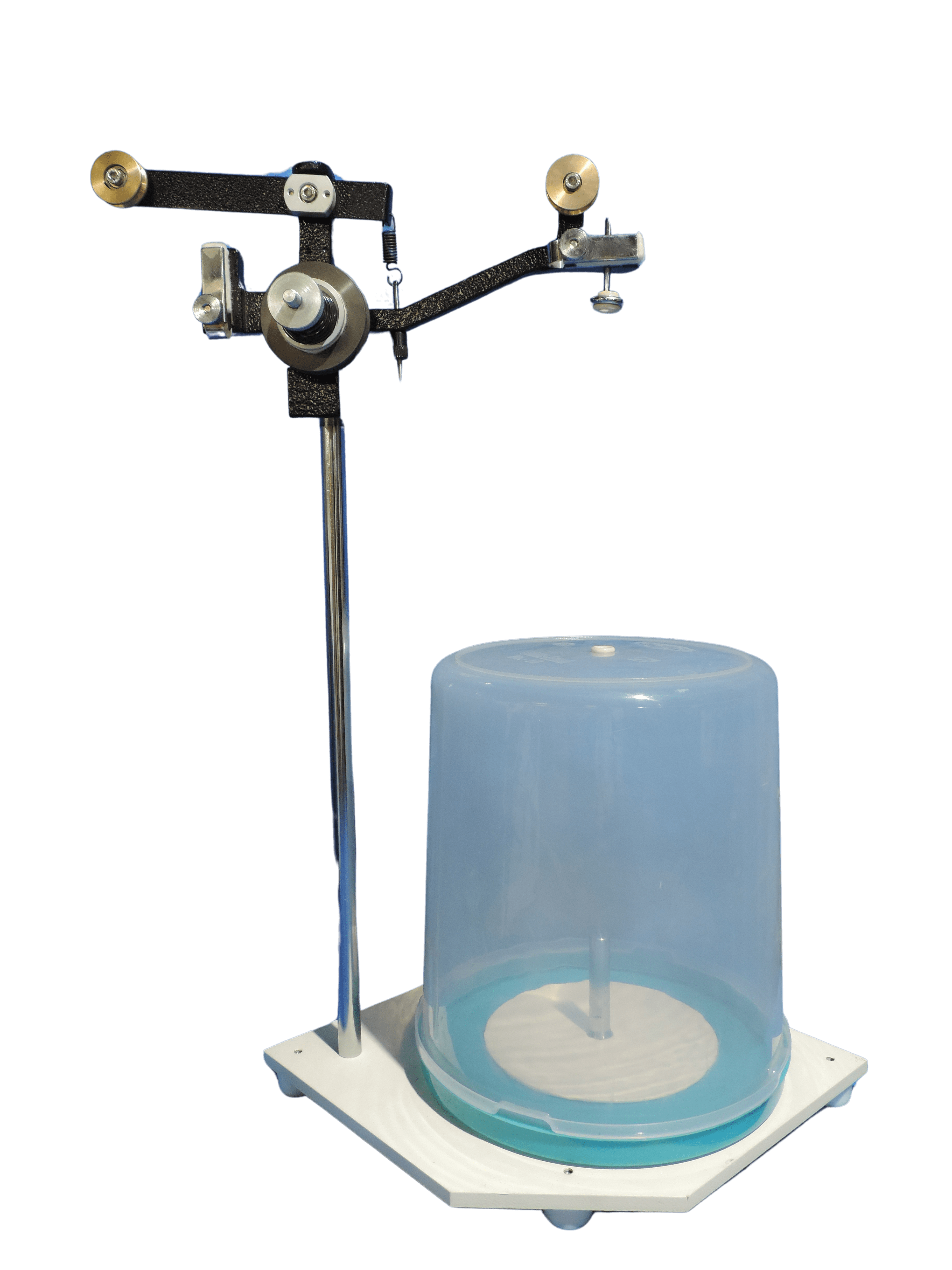

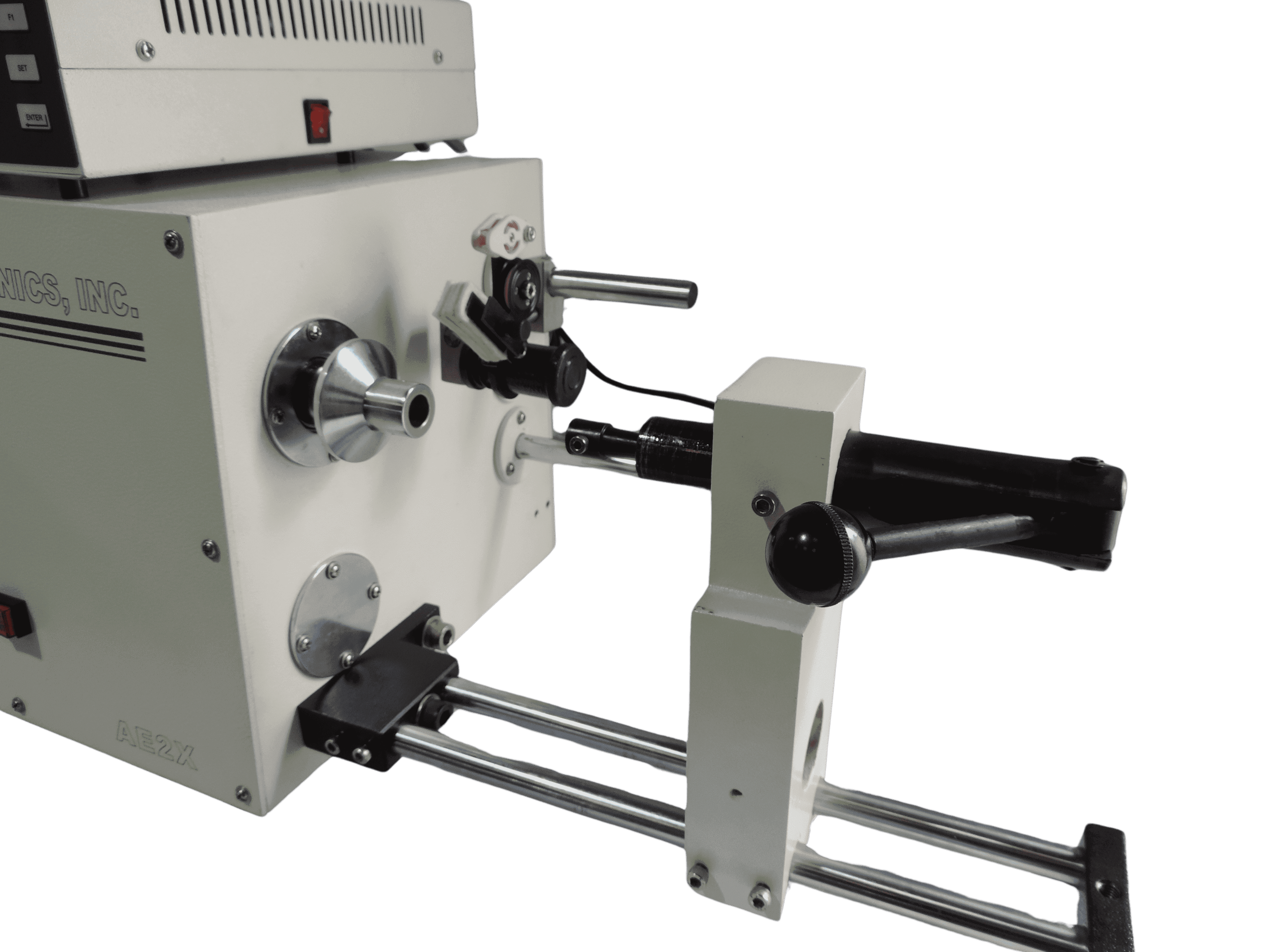

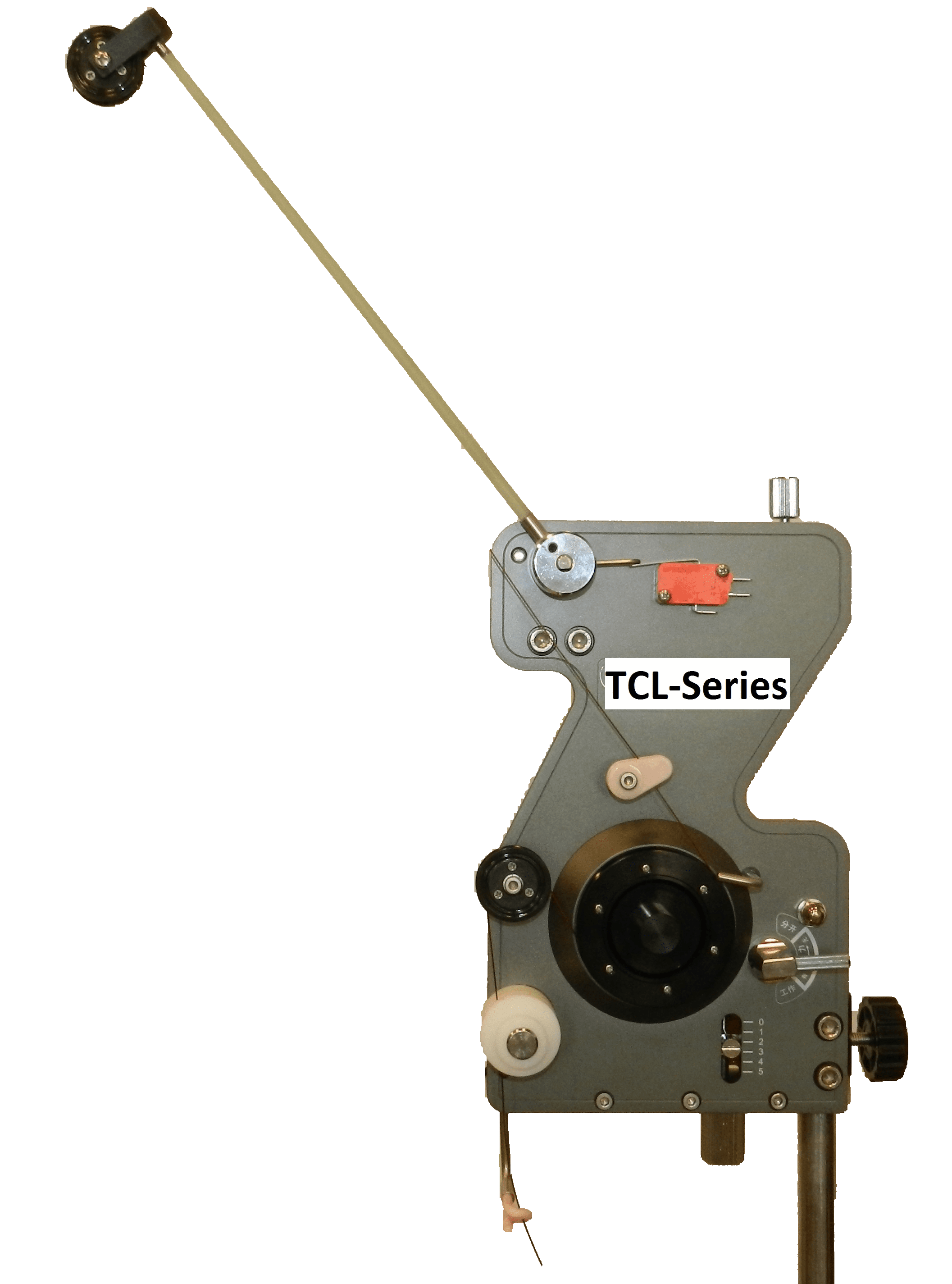

Need something beyond the standard? The AEX series allows for customized software development to meet your specific needs. Plus, a wide range of optional attachments like graduated tensioners, driven tailstocks, and horizontal tensioners further expand its functionality, letting you create your ideal winding solution.
The AEX series winding machines are built to elevate your production. Their compact design, intuitive operation, and unmatched precision make them the perfect choice for any coil winding application. Contact us today and experience the future of winding technology.

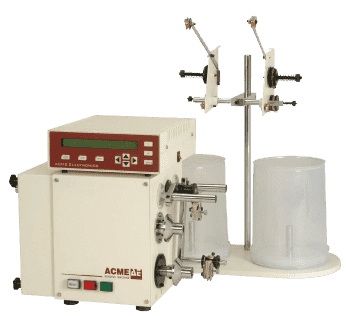

AEX - 01 Single Spindle Side Loading Winding Machine
| Inch | mm | |
|---|---|---|
| Winding Width : | 3.90 | 100 |
| Speed : | 9000 rpm (Max.) | 9000 rpm (Max.) |
| Wire Diameter : | Upto 0.040 | 0.20 to 1.00 |
| Bobbin Diameter : | 3.10 | 80 |
| Dimension WDH : | 17*14*25 | 425*350*620 |
AEX - 02 Double Spindle Side Loading Winding Machine
| Inch | mm | |
|---|---|---|
| Winding Width : | 3.90 | 100 |
| Speed : | 9000 rpm (max.) | 9000 rpm (max.) |
| Wire Diameter : | Upto 0.040 | 0.20 to 1.00 |
| Bobbin Diameter : | 3.10 | 80 |
| Dimension WDH : | 17*14*25 | 425*350*620 |
AEX - 04 Four Spindle Front Loading Winding Machine
| Inch | mm | |
|---|---|---|
| Winding Width : | 2.70 | 70 |
| Speed : | 8000 rpm (max.) | 8000 rpm (max.) |
| Wire Diameter : | Upto 0.020 | 0.20 to 0.50 |
| Bobbin Diameter : | 2.30 | 60 |
| Dimension WDH : | 30*17*32 | 750*425*810 |
AEX - 01 Single Spindle Front Loading Winding Machine
| Inch | mm | |
|---|---|---|
| Winding Width : | 3.90 | 100 |
| Speed : | 9000 rpm (max.) | 9000 rpm (max.) |
| Wire Diameter : | Upto 0.040 | 0.20 to 1.00 |
| Bobbin Diameter : | 3.10 | 80 |
| Dimension WDH : | 17*14*25 | 425*350*620 |
