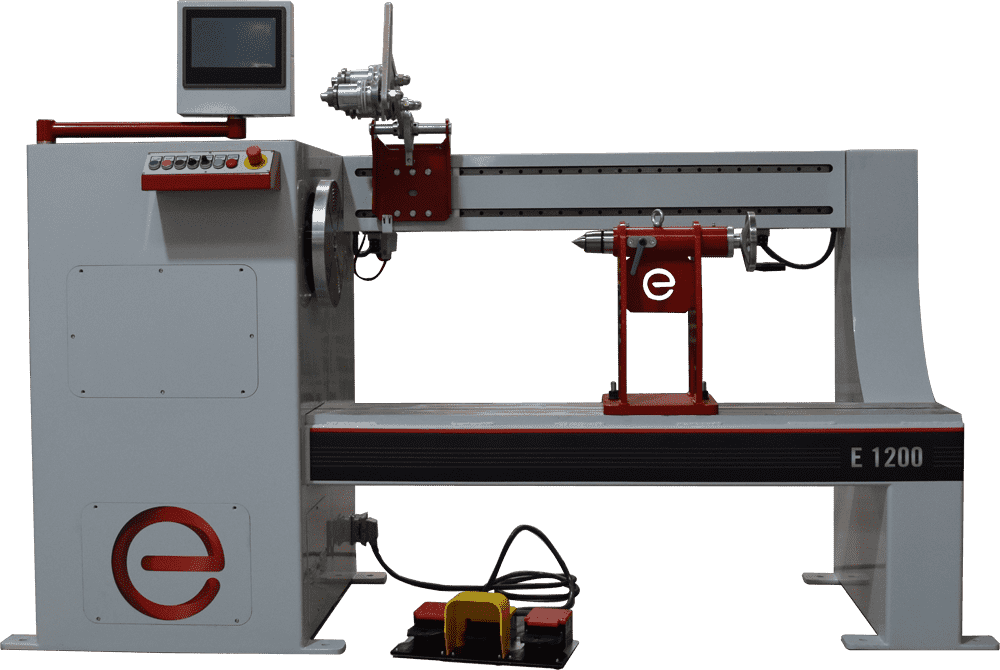

E1200 Series

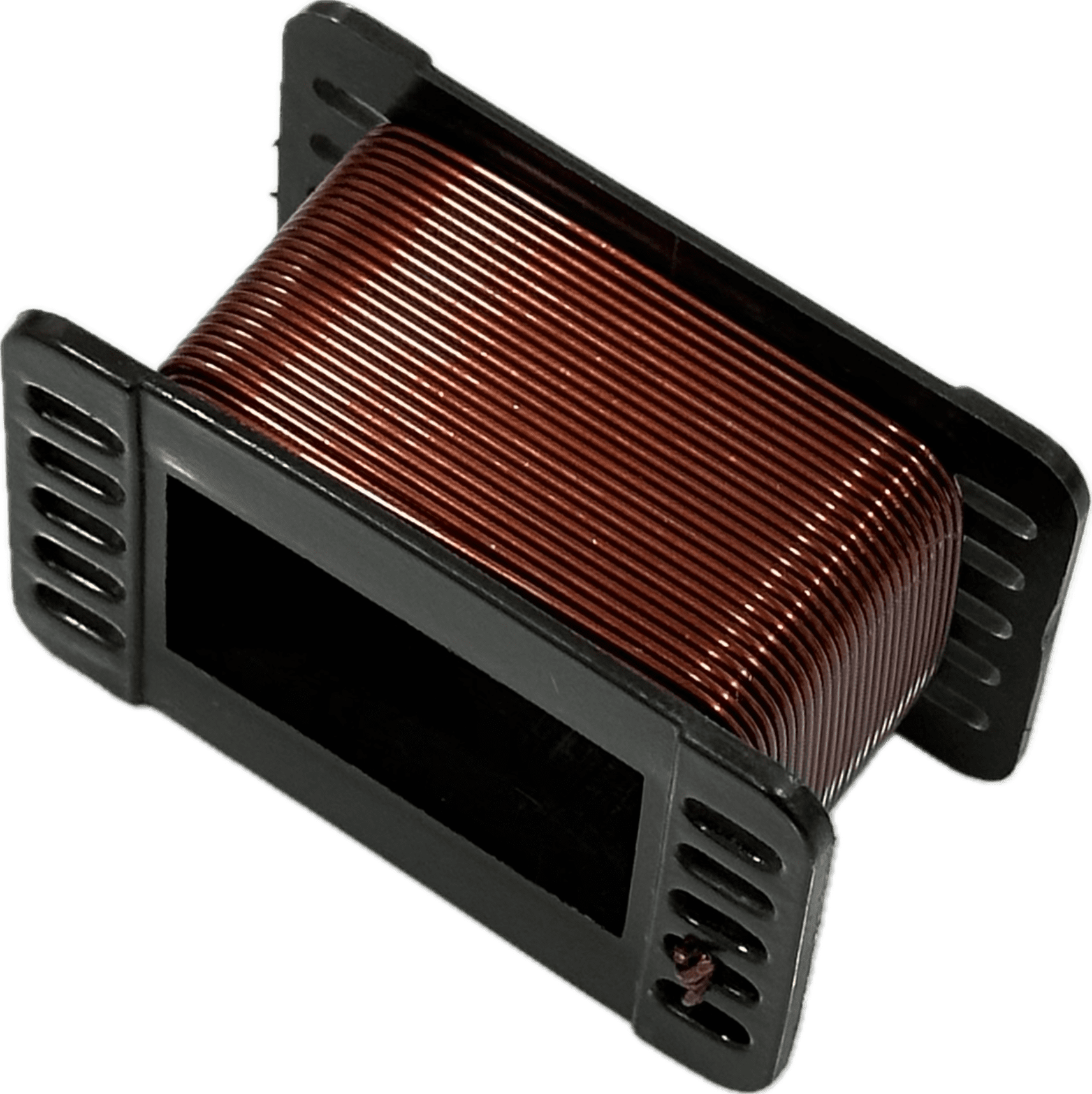

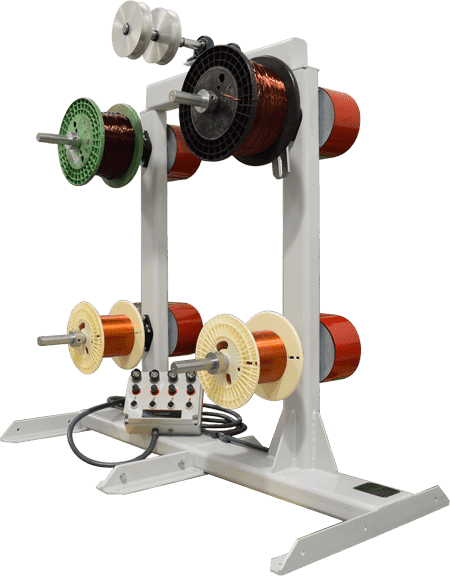

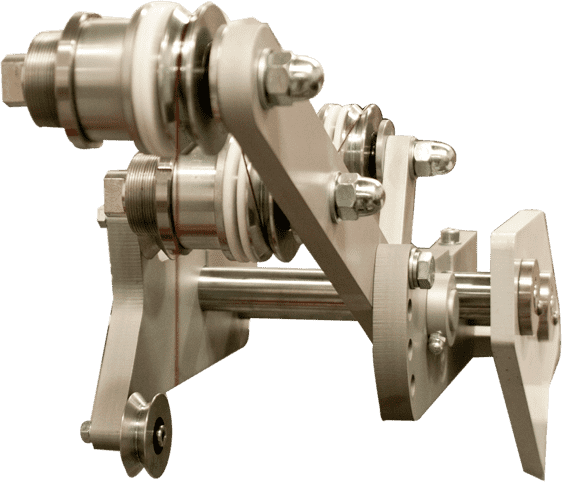

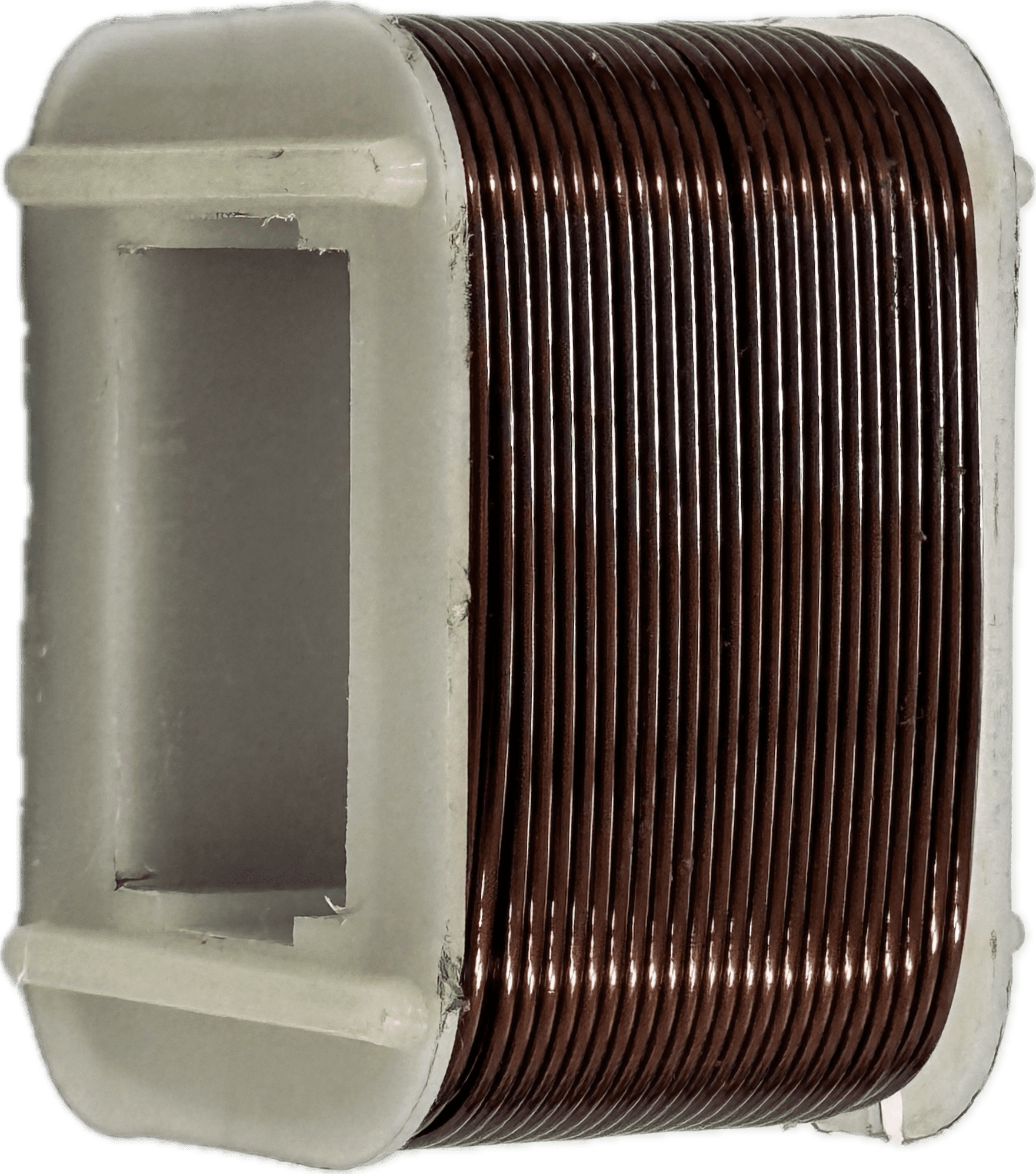

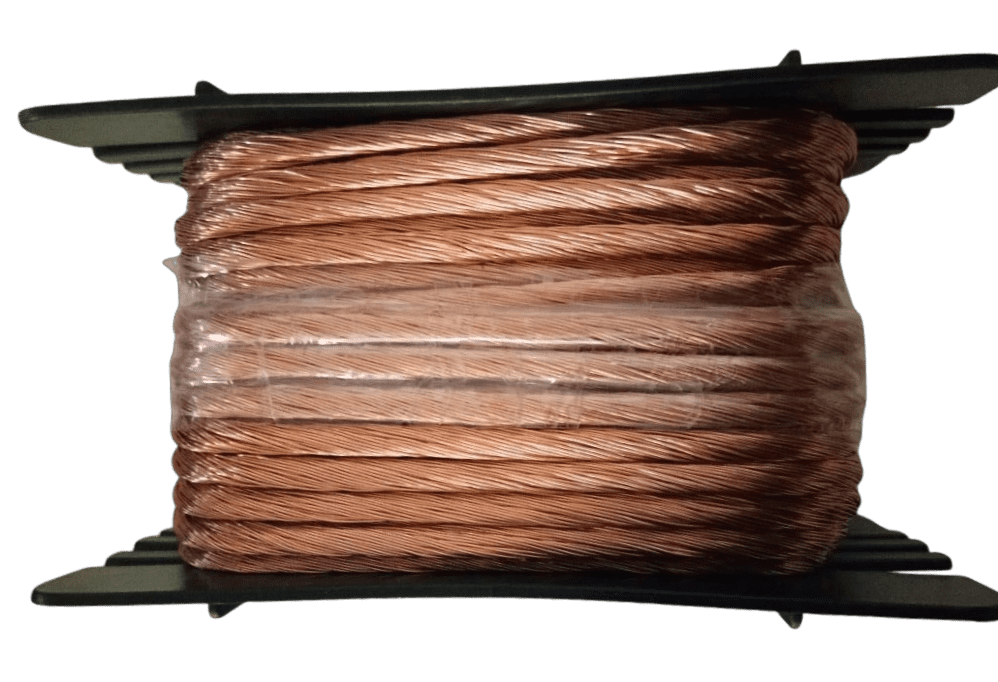

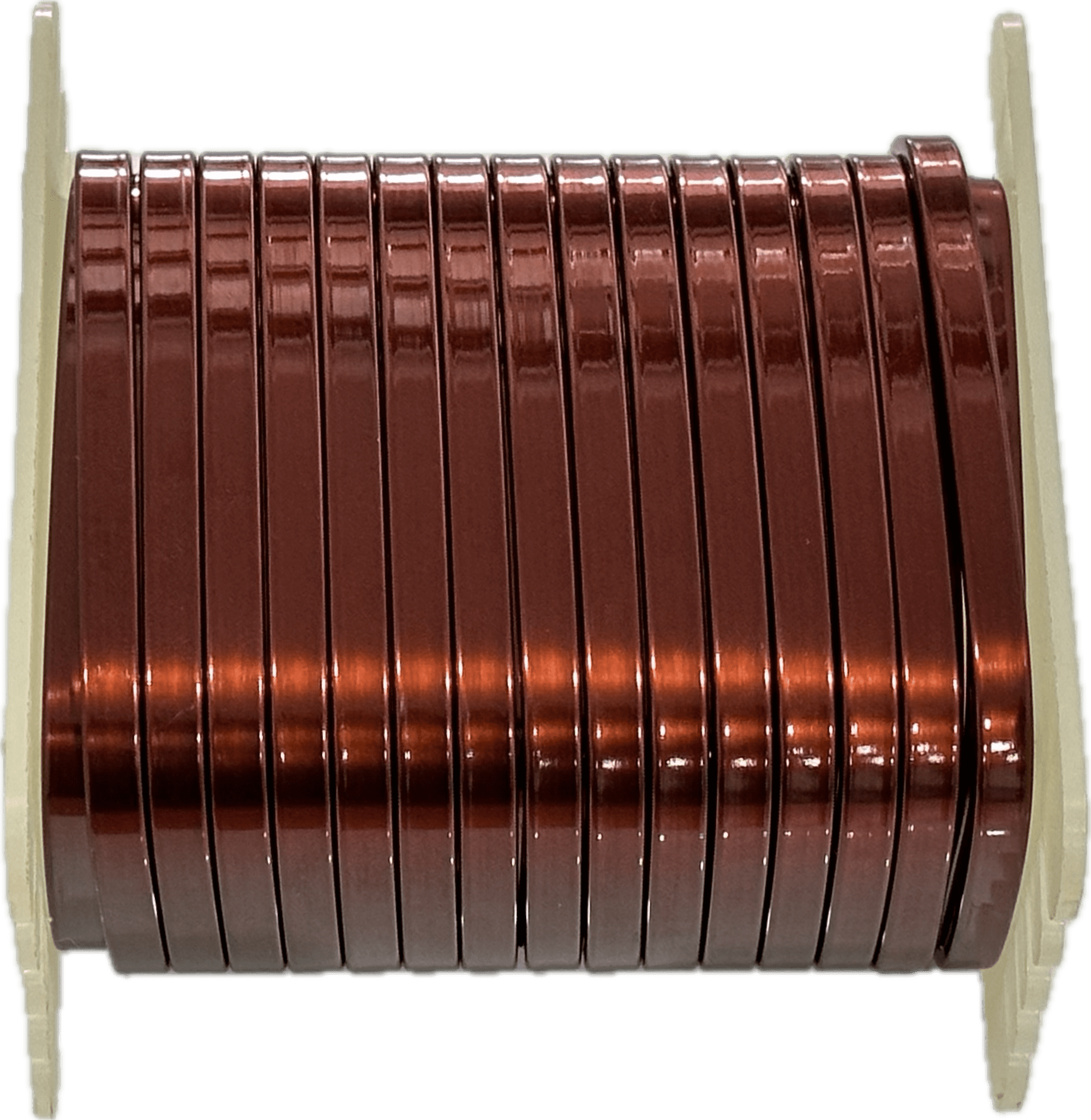

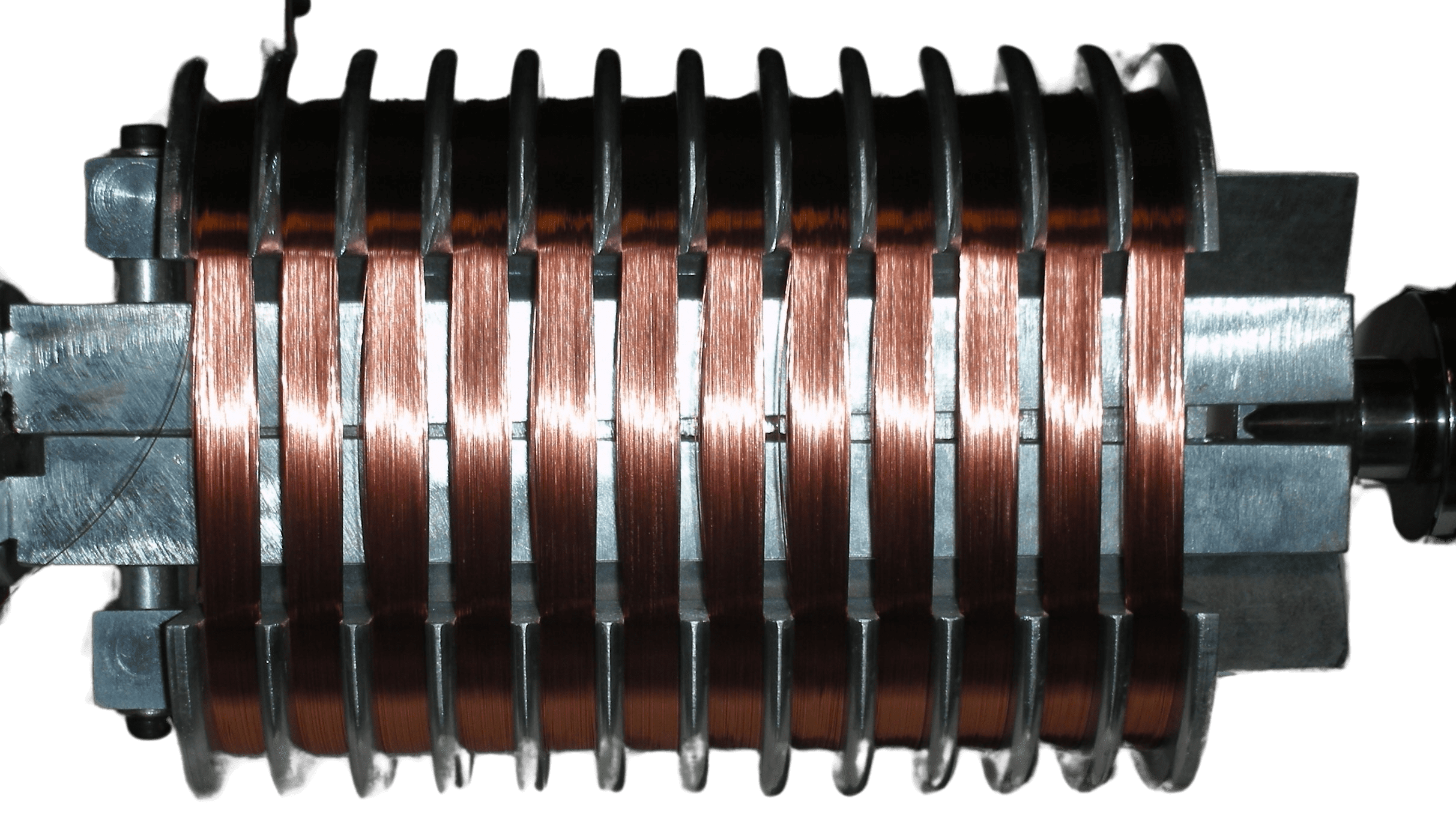

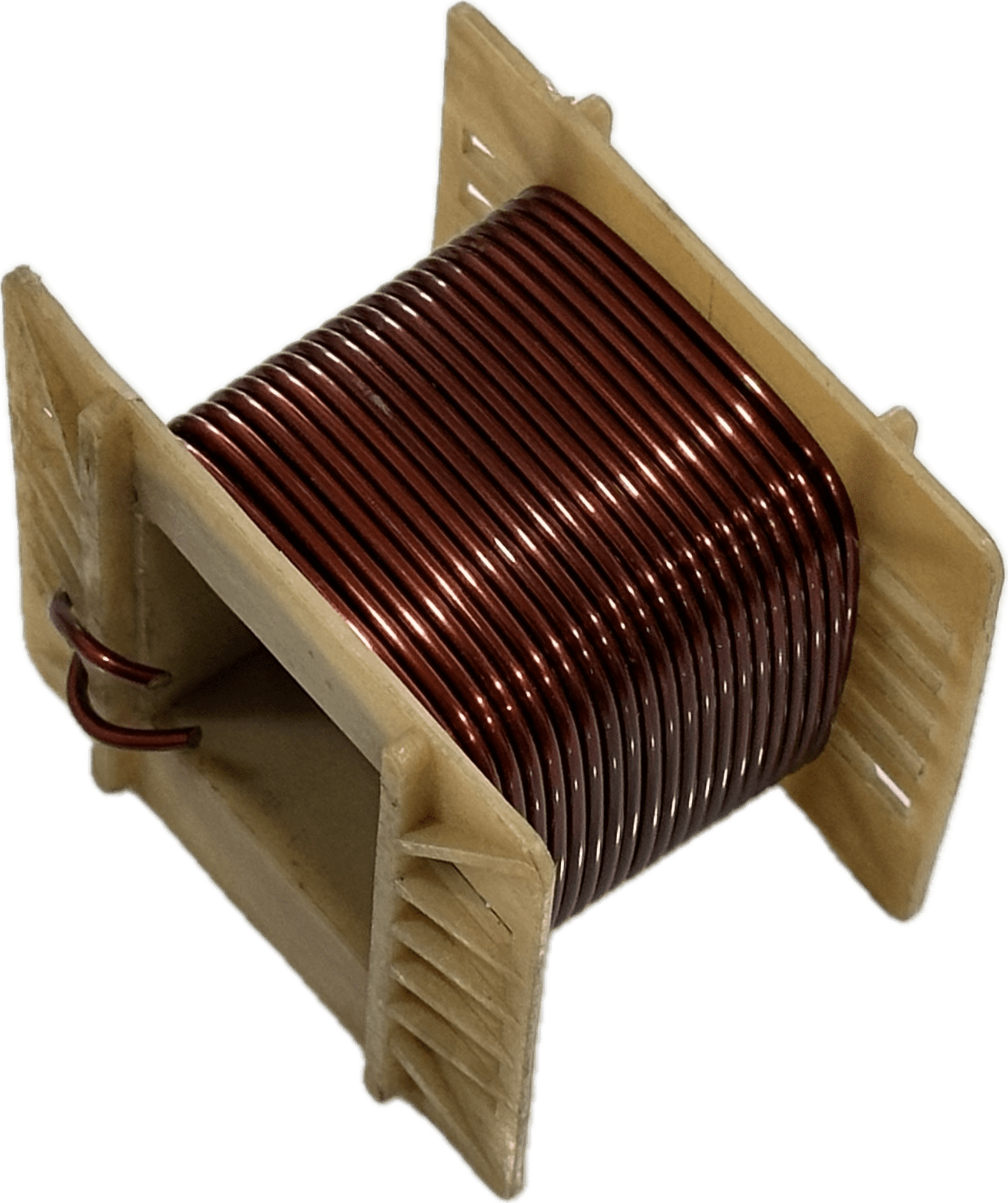

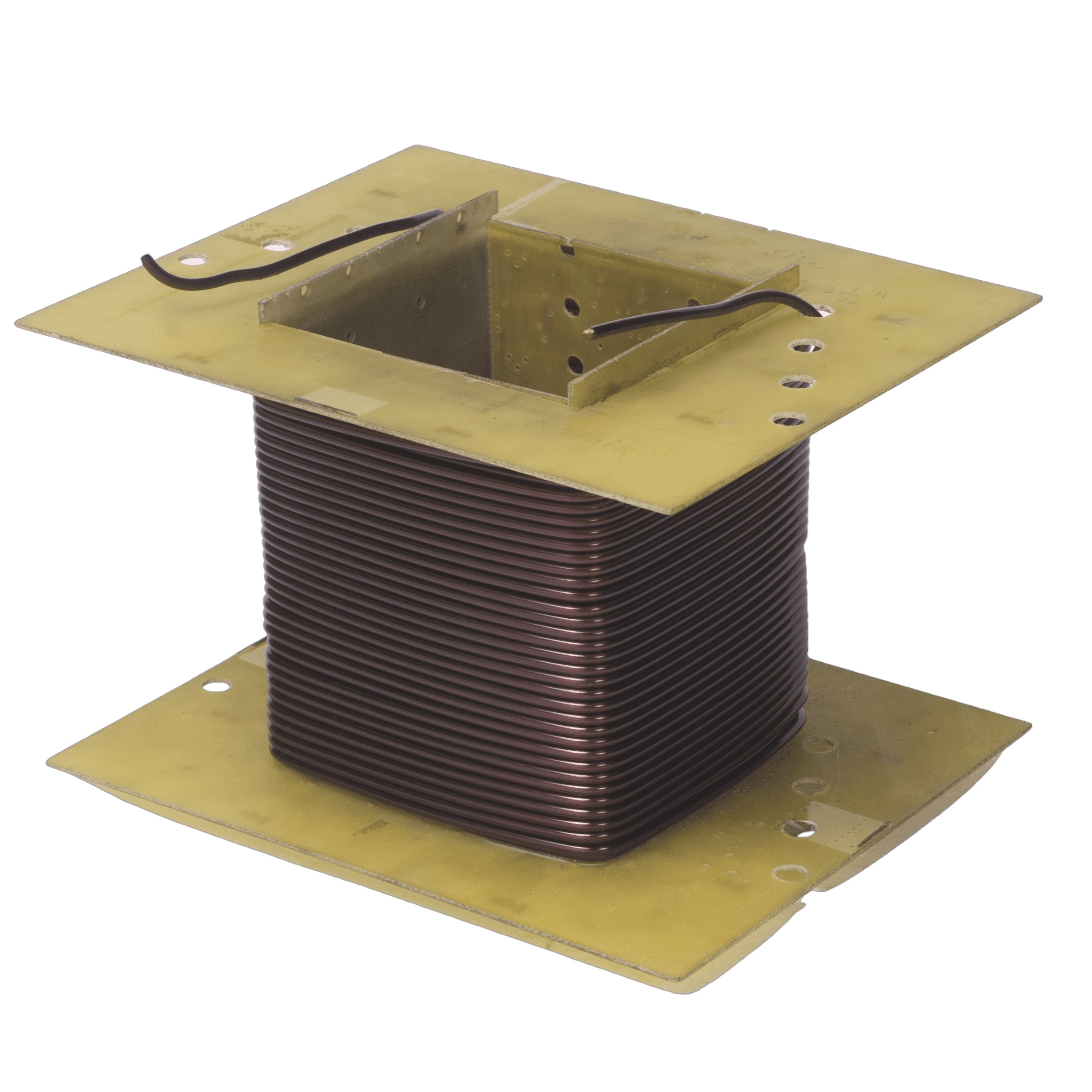

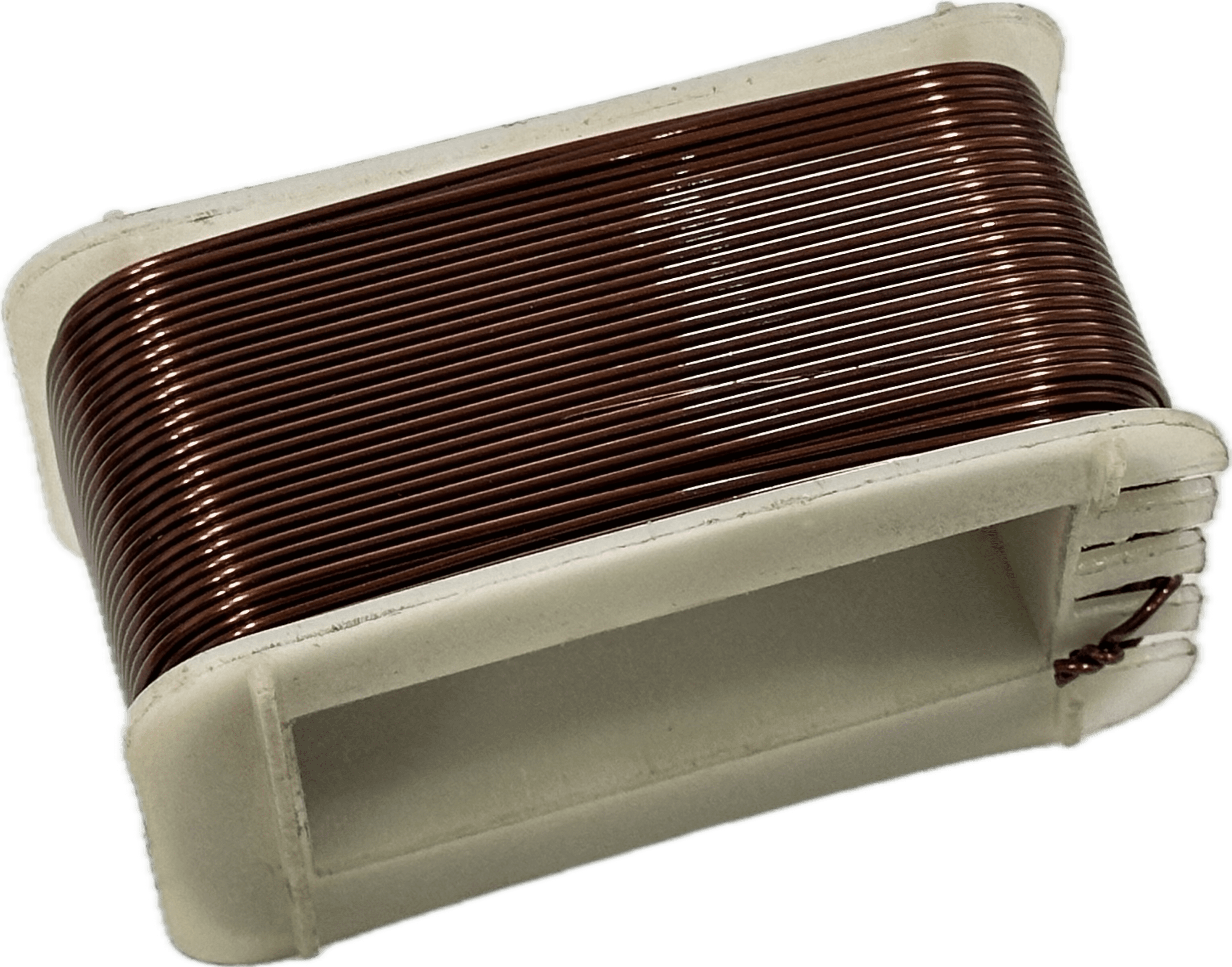

Specially crafted for LV coils and motor coils, the E1200 series is suitable for high-intensity manual winding. It provides the flexibility of automatic or manual winding capability, with or without a wire guiding/traverse unit.

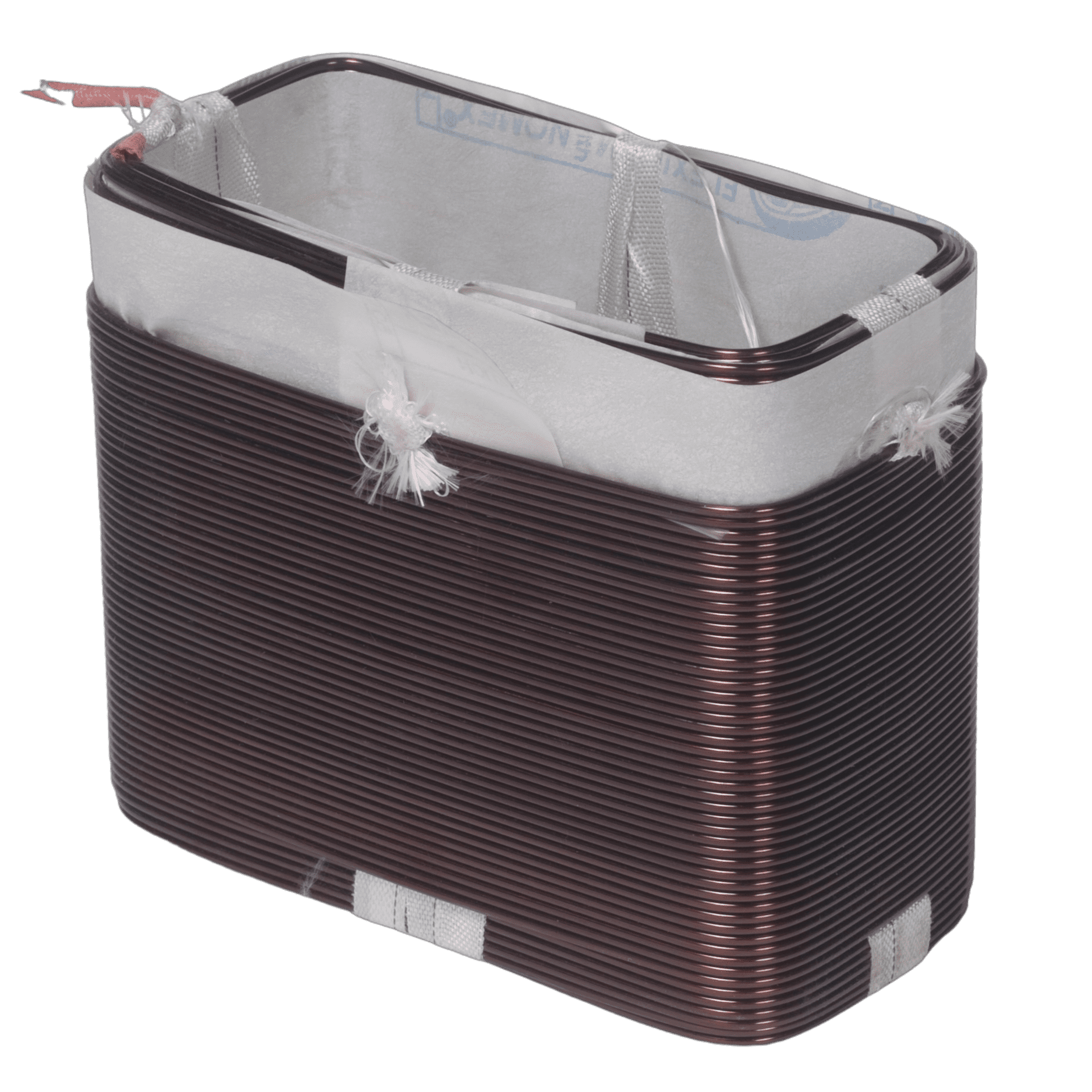

Tailored for High Voltage Coil Production

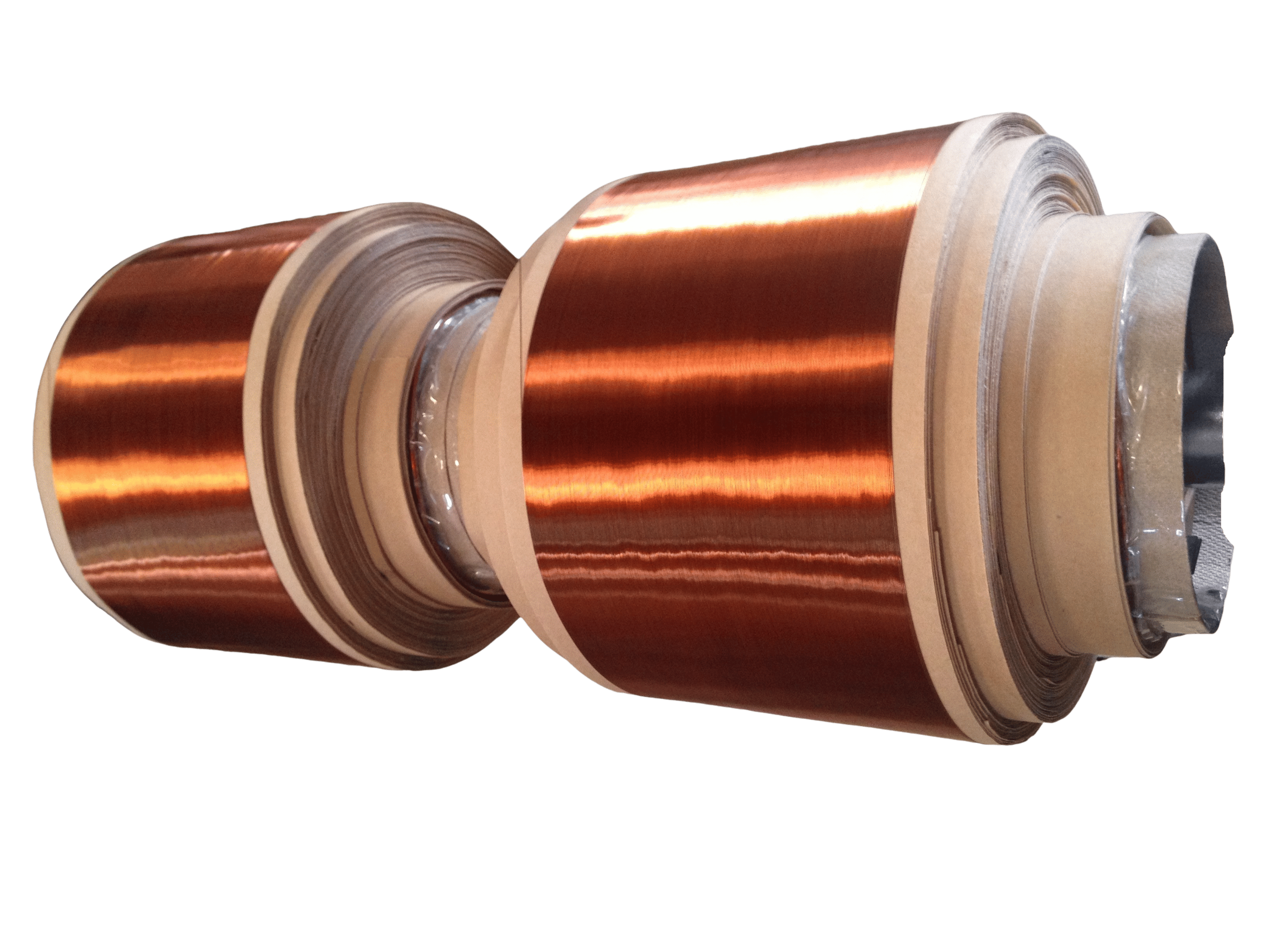

This large floor-standing coil winding machine, equipped with a mobile and folding tailstock, is specifically designed for the efficient production of High Voltage coils.

Synchronous Technology with Brushless Motor

Featuring synchronous technology in the faceplate and guider system powered by a brushless motor, the machine allows precise regulation and synchronization between these two critical movements.

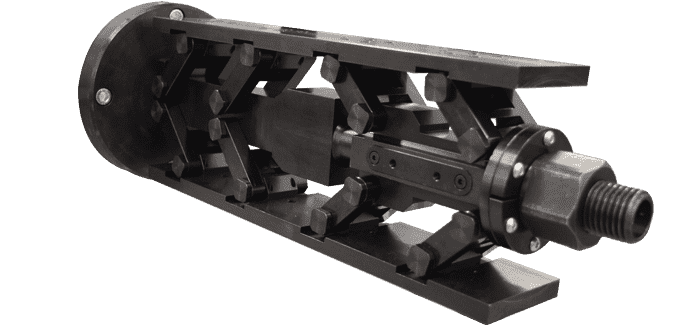

Precision Movement with Gear Motor

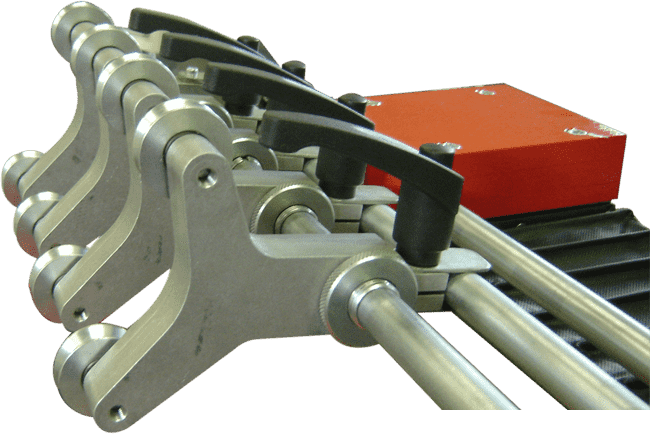

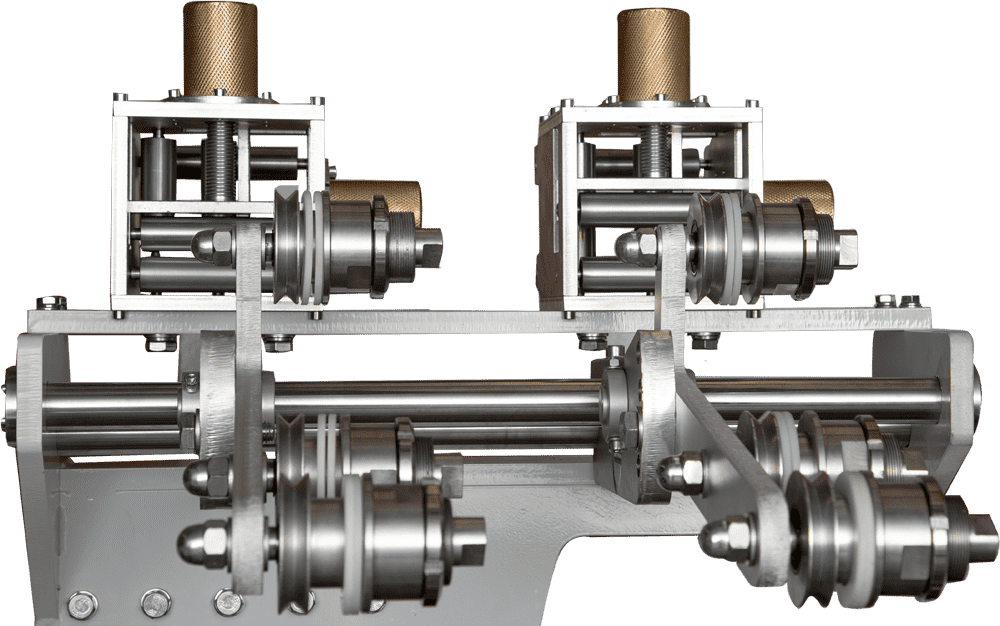

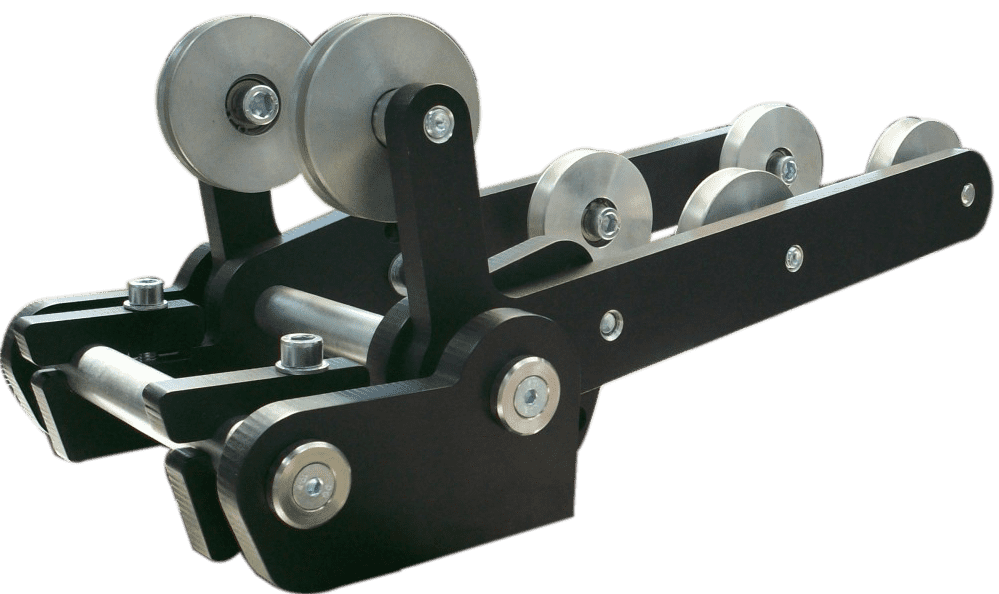

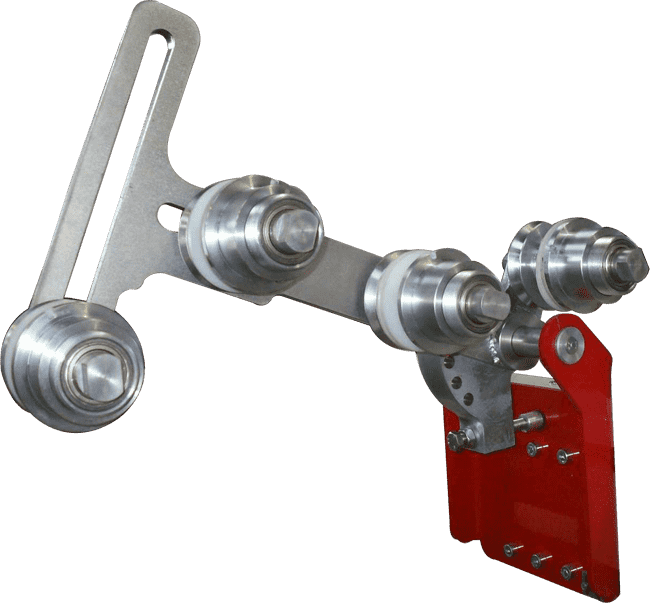

The gear motor facilitates the movement of the faceplate, while the ball screw guider system, guided by slides and linear guide rails with ball recirculation, ensures precise and reliable operation.

Safety and Efficiency

The machine includes protection covers at the front, ensuring safety during operation. Its high-efficiency electromechanical elements contribute to energy savings and improved machine maintenance.

Numeric Control and CNC Programming

Governed by numeric control and CNC electronic programming, the machine features a 10.1" touch screen. Its flexibility and versatility are enhanced with the inclusion of a foot pedal for user convenience.

Absolute Synchronization for Error-Free Operation

The CNC control system ensures absolute synchronization between headstock rotation and guider movement, faithfully reproducing the operator's programmed instructions. The easy and visual program interface allows for the creation of various coil types and offers multiple options in the winding process, saving time and minimizing errors.

Belt Position **
Torque (Nm) Speed (Rpm)
270 360
1033 96

Products & Capabilities

Single Spindle side Loading Winding Machine

E1200 Series

Inch mm
Spindle Center Height - 1000 mm
Max. Winding Diameter - 800 mm
Electrical Supply - 380 V + N + GND/ 50 Hz
Air Supply - Not Required
Distance between Points - 1200 mm
Tailstock: Morse cone - No. 4
Pitch Accuracy - 0,01mm
Winding Shaft Speed* - See Below
Total Machine Weight approx. - 1200 Kg
Max. Winding Length - 1100 mm
Face Plate Diameter - 350 mm
Max. Coil and Tool Weight - 850 Kg
Tailstock: Opening stroke - 140 mm
