The primary function of these wire guider are to ensure precise wire guidance and wide range of guider are available depending on wire size, strip size and quantity of wires.
Wire Guide are mounted on programmable traverse unit to guide wire as per programmed pitch. This becomes the most important accessory of the machine ensuring it is guided precisely on to the bobbin from tensioner unit.

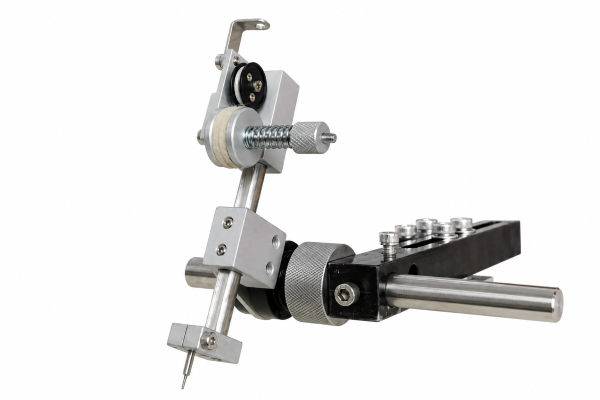

Appropriate for delicate wire applications, equipped with a tungsten nozzle for smooth and trouble-free wire guiding, suitable for wires upto 0.6mm in diameter.
Designed for wires with diameters ranging from 1.00mm to 1.5mm, the tension is created through the reverse bending of the wire, supplemented by a spring-activated tension system on the main pulley.
Used for wire upto 0.8mm and comes as standard accessory for AEX machine. Fine adjusting knob helps to precisely locate first turn wire position.
For wire 1.00 to 3.00mm wire diameter for AEH series. This accessory is a standard accessory for AEH series and can be used for other machine too.
Used for wire upto 0.8mm and comes as a standard accessory for AEW and AEH series machine.
Used for bondable wire to apply liquid over wire during wining.
Designed for wire required to be straighten during winding. Uneven wire or special material wire needs to be straighten to achieve quality winding.

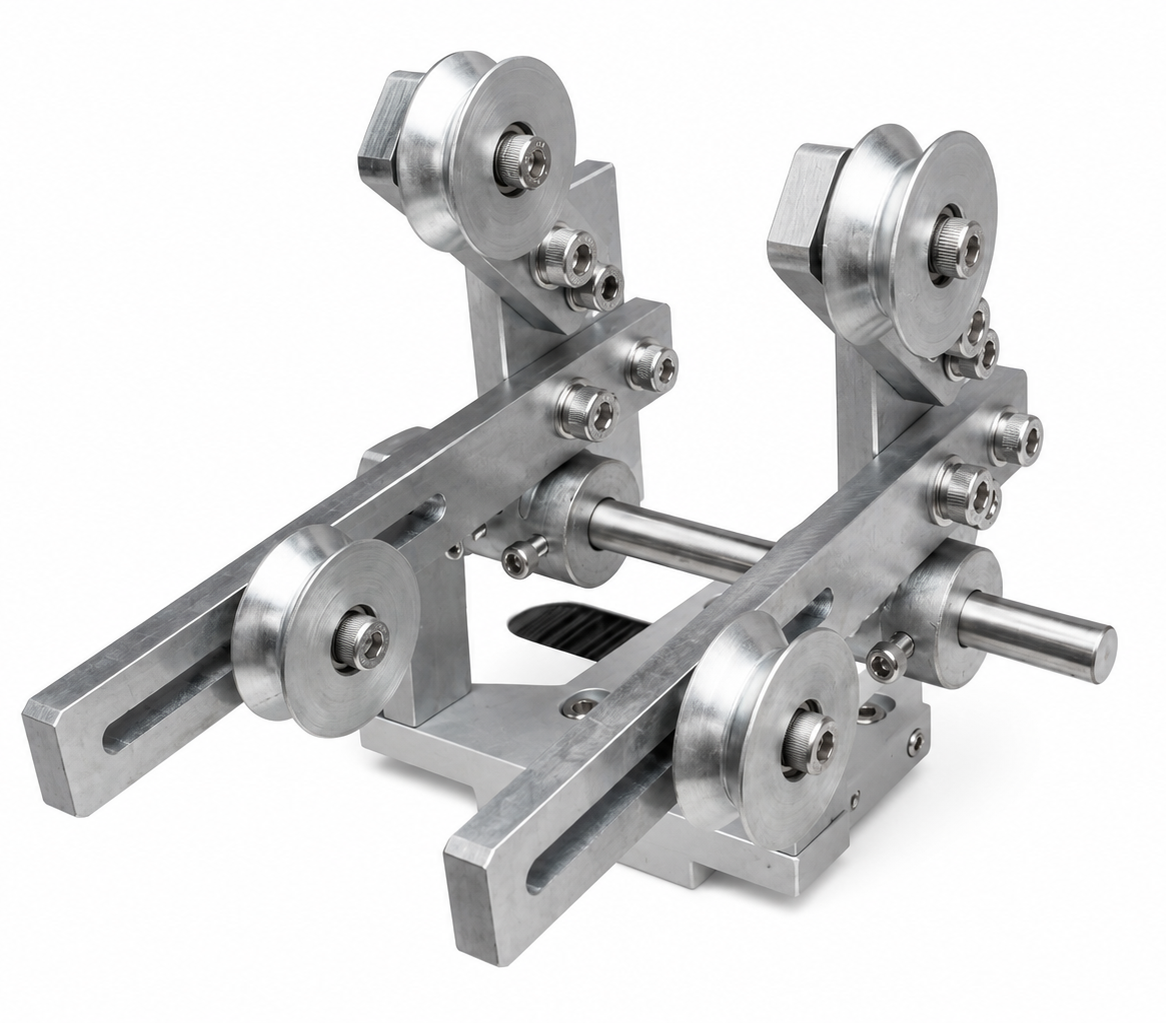

Suitable specifically for thicker wire and strips or for bifilar winding for heavy wire.

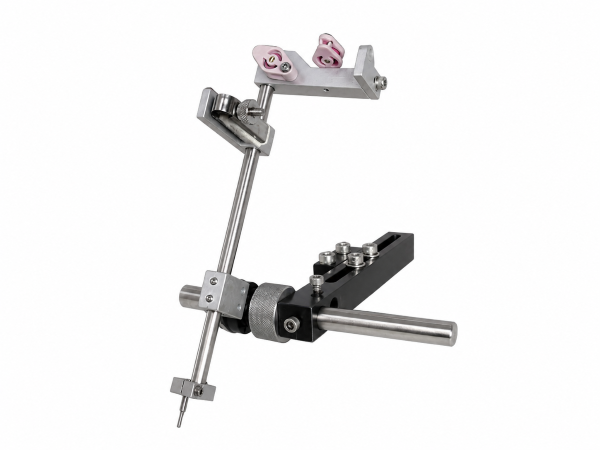

Suitable for fine wire to precisely locate wire on the bobbin or for multi section bobbins to precisely move wire from one section to another.
Best suited for fine wire up to 1.00 mm diameter with multiple tungsten nozzle from 0.3 to 1.2mm with manual adjustable position.
Best suited for larger wire over 0.90mm.

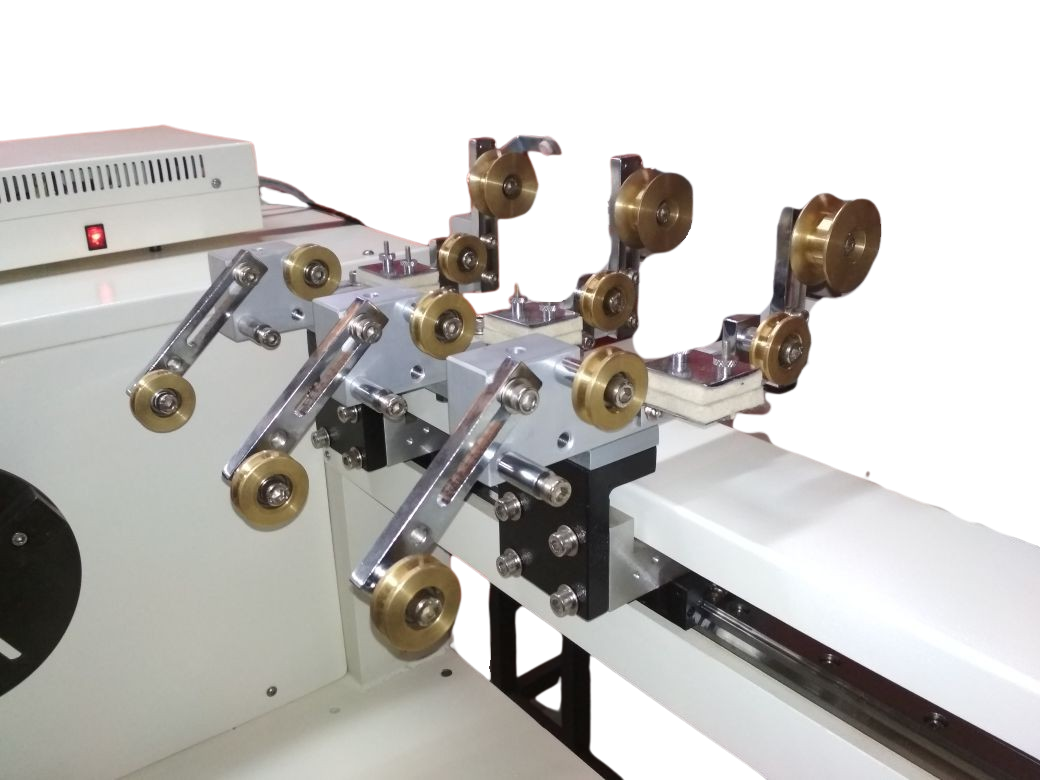

Best suited for larger wire over 0.90mm for multi coil winding.
These guiders are specifically designed for square or rectangular copper strips, accommodating a maximum packet size of 55mm wide * 20mm high. Additionally, the wire guide is equipped with an extra pulley set that facilitates the guidance of round wire.
