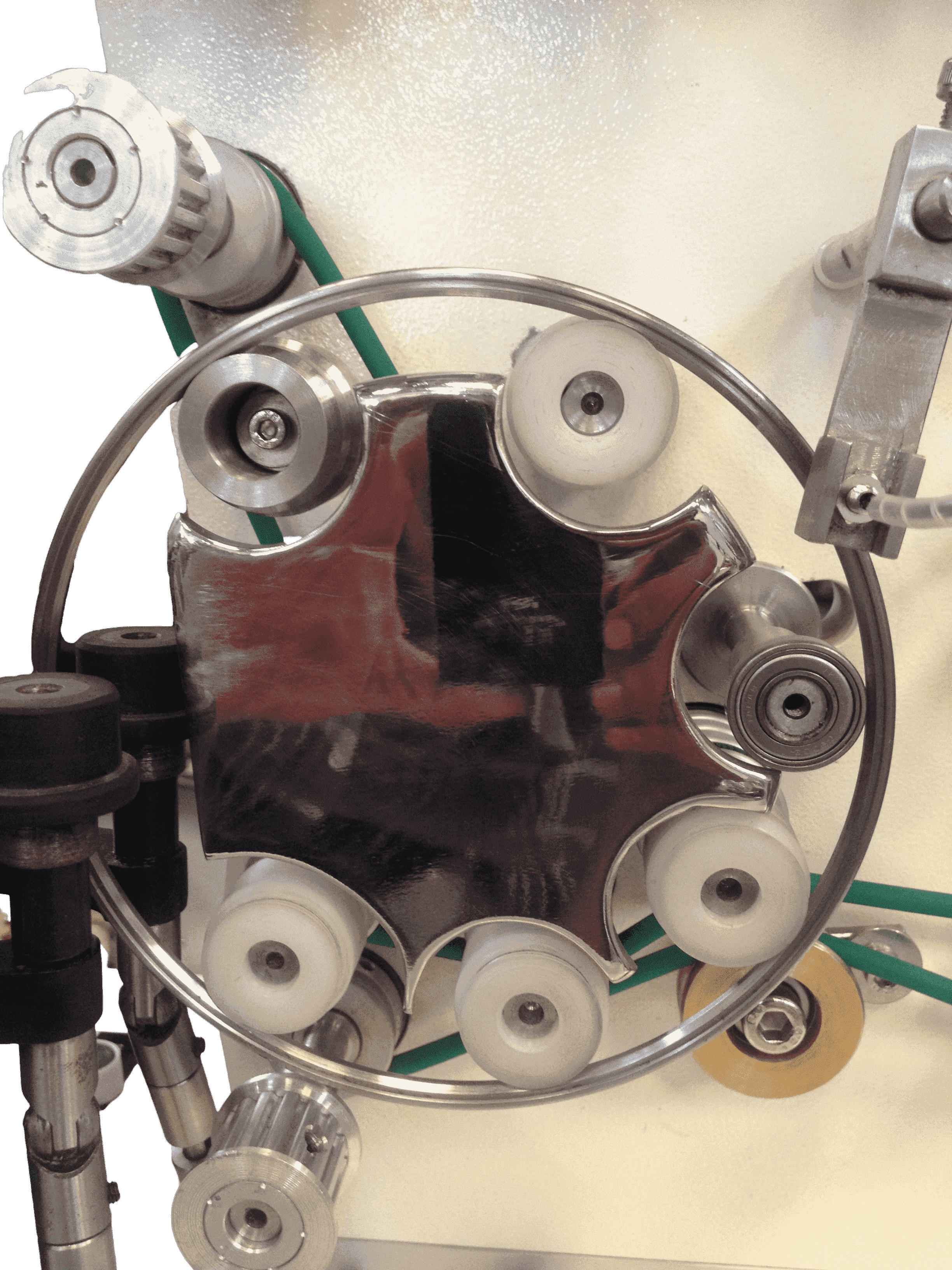

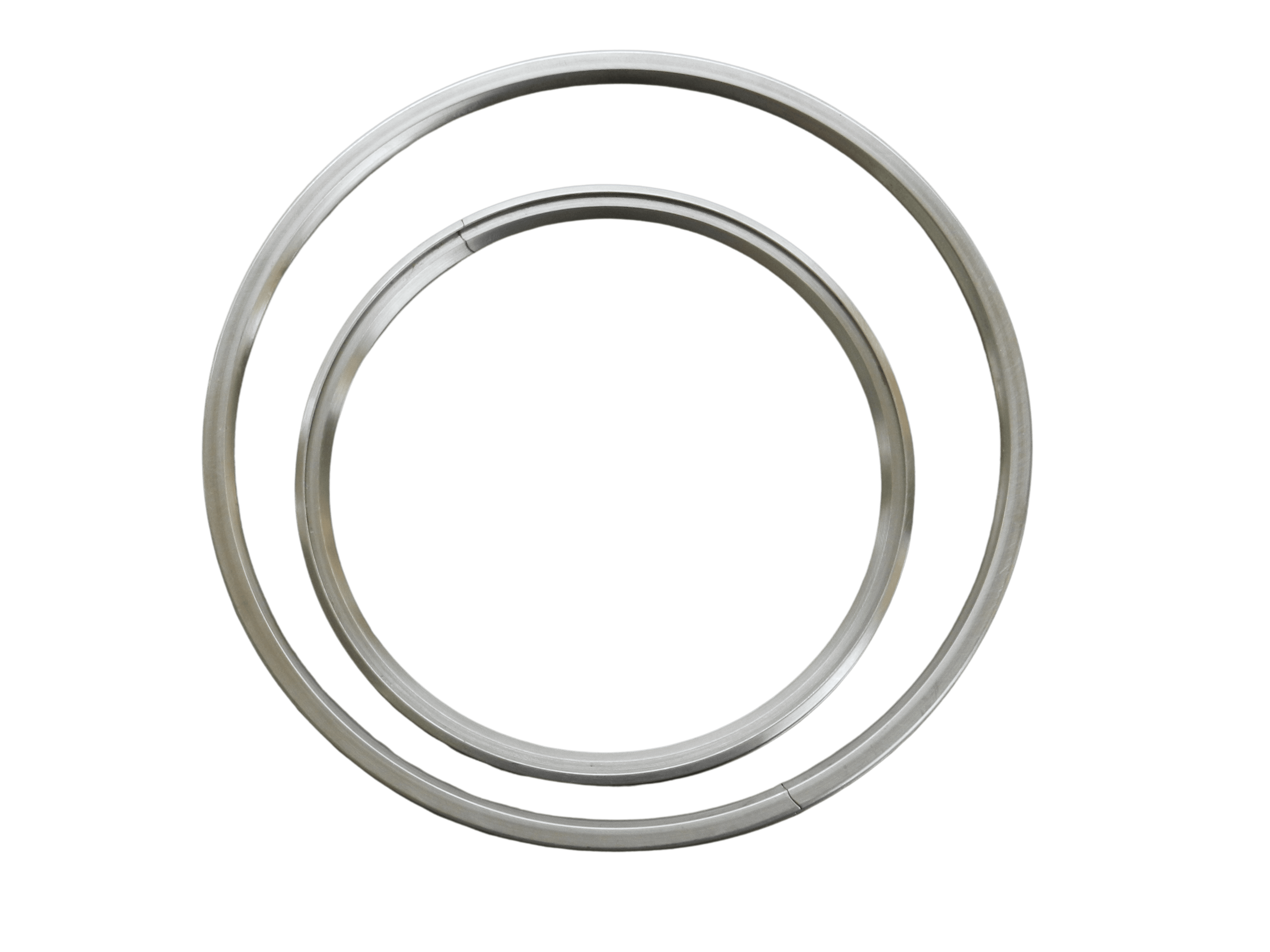

6 inch diameter slider type shuttle to wind larger core with wire from 28AWG and higher with ability to wind multiple layer, segment and tapping

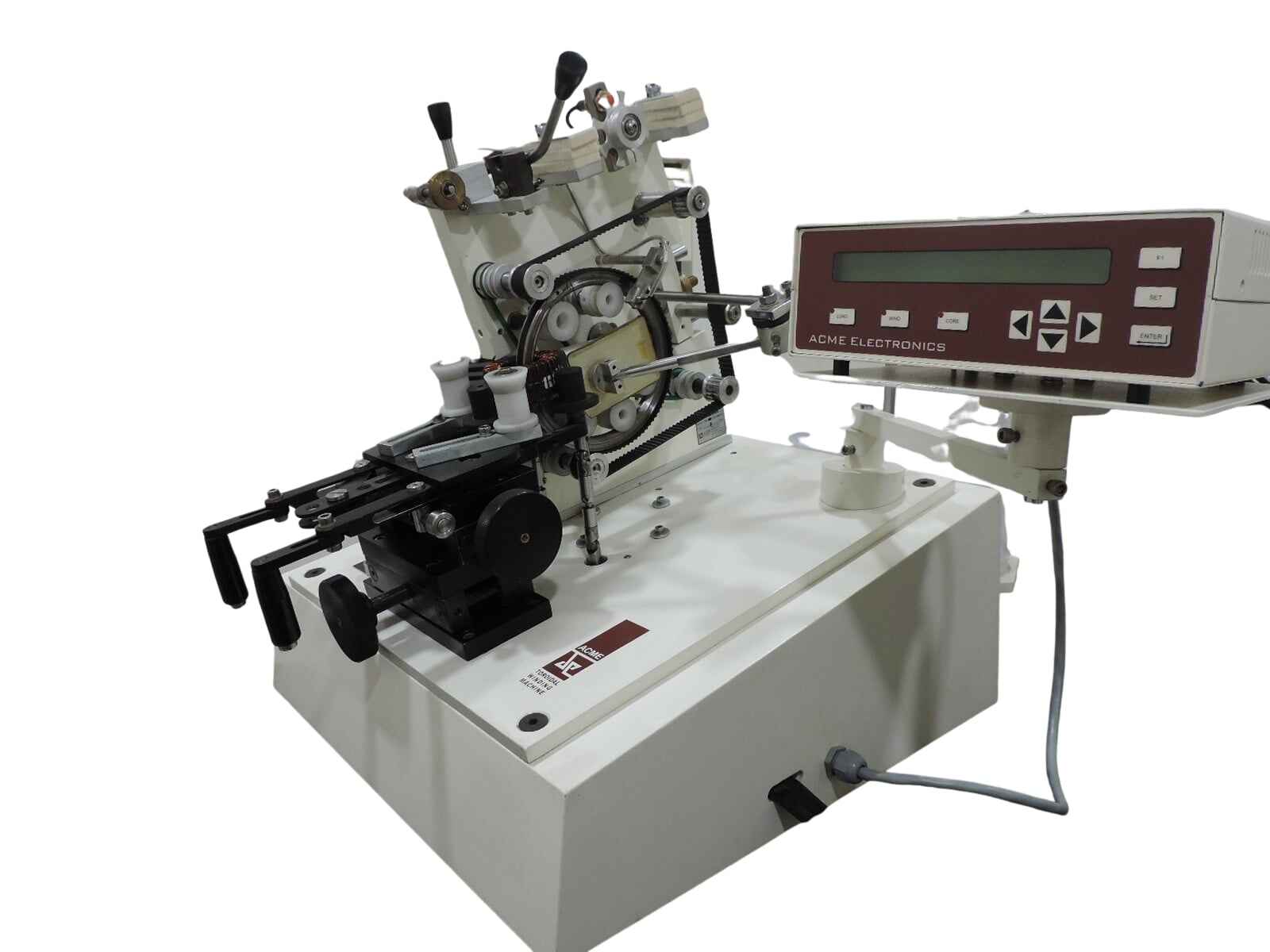

MT-06B Winding Machine
| Inch | mm | |
|---|---|---|
| Speed(Max) : | 800 rpm | 800 rpm |
| Finished OD : | 1.70 | 45 |
| Wire Diameter : | Upto 0.060 | 1.30 to 0.25 |
| Finished ID : | 0.30 | 8.0 |
| Finished Height : | 1.38 | 35 |
