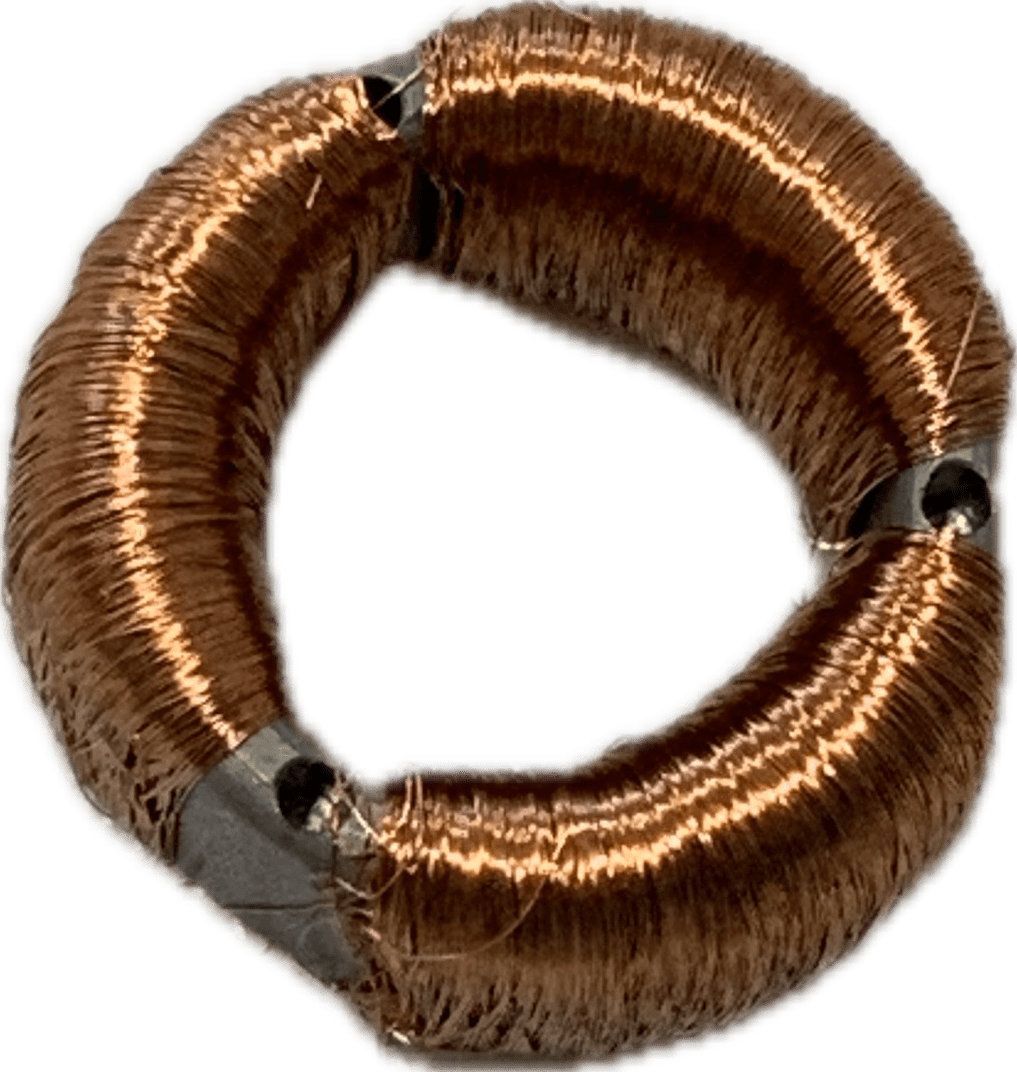

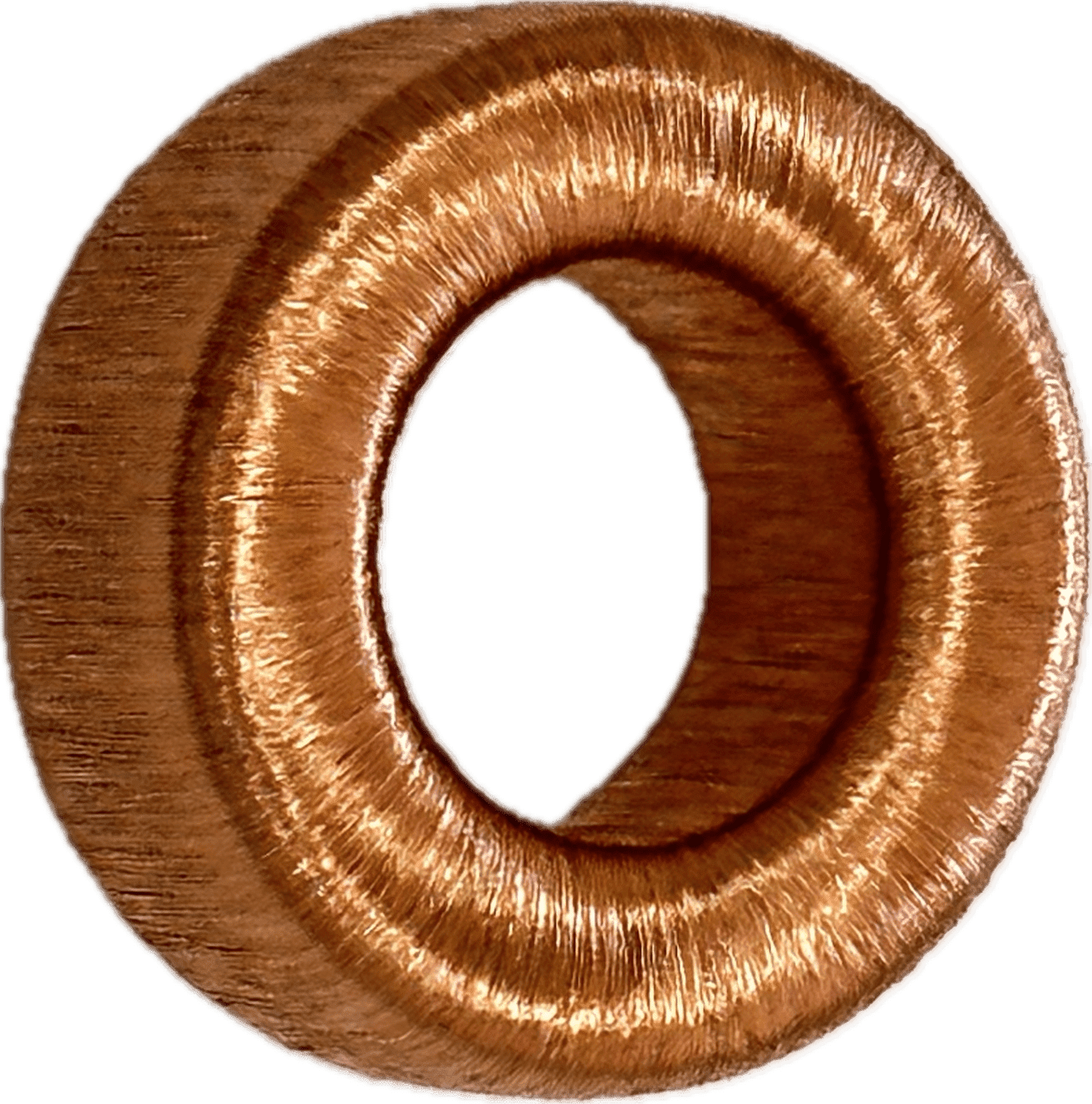

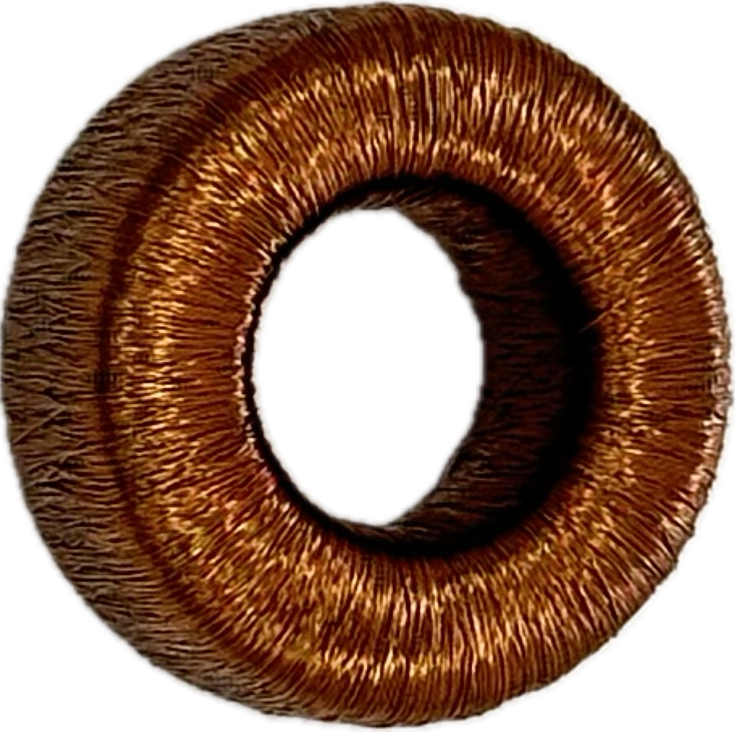

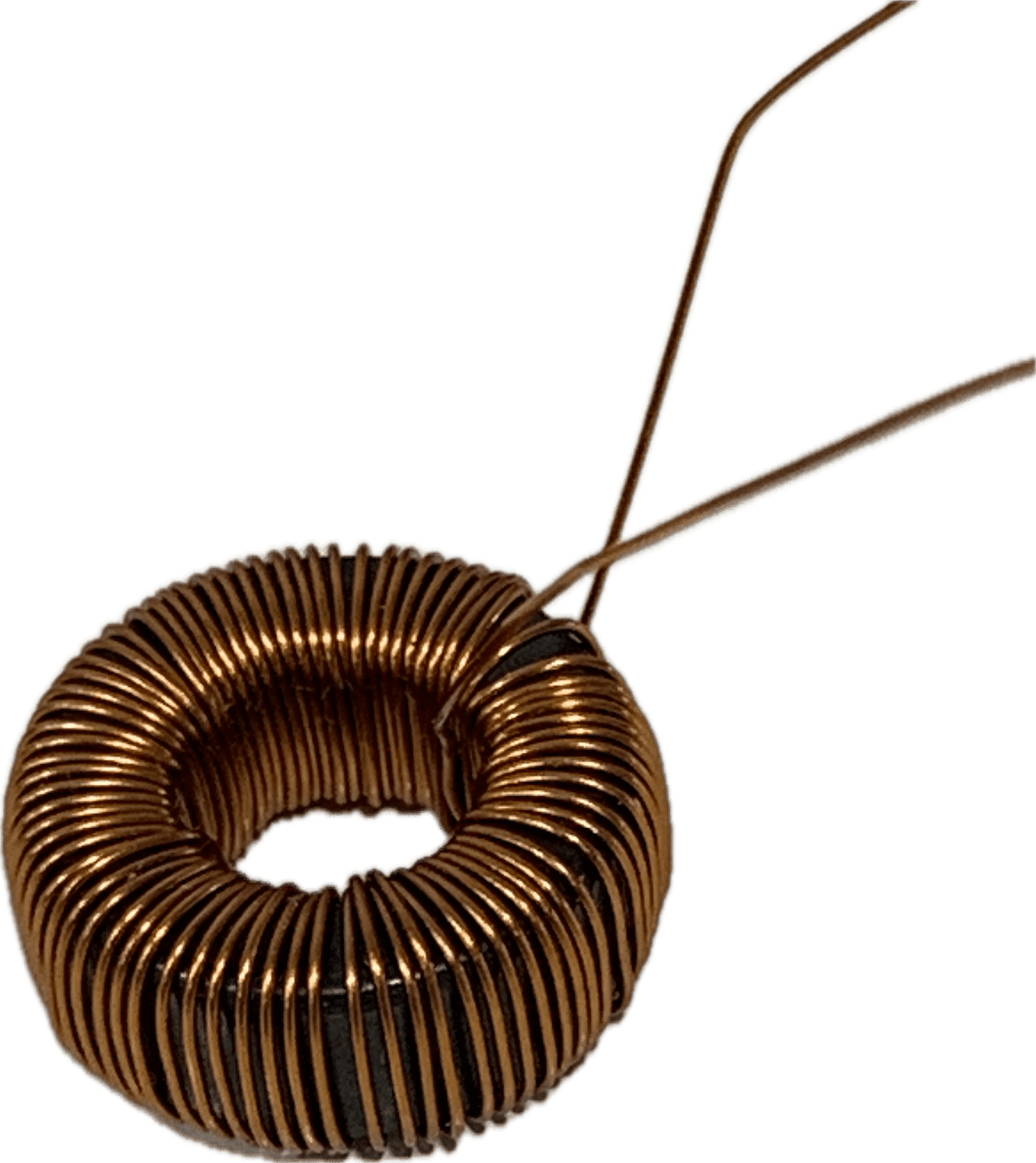

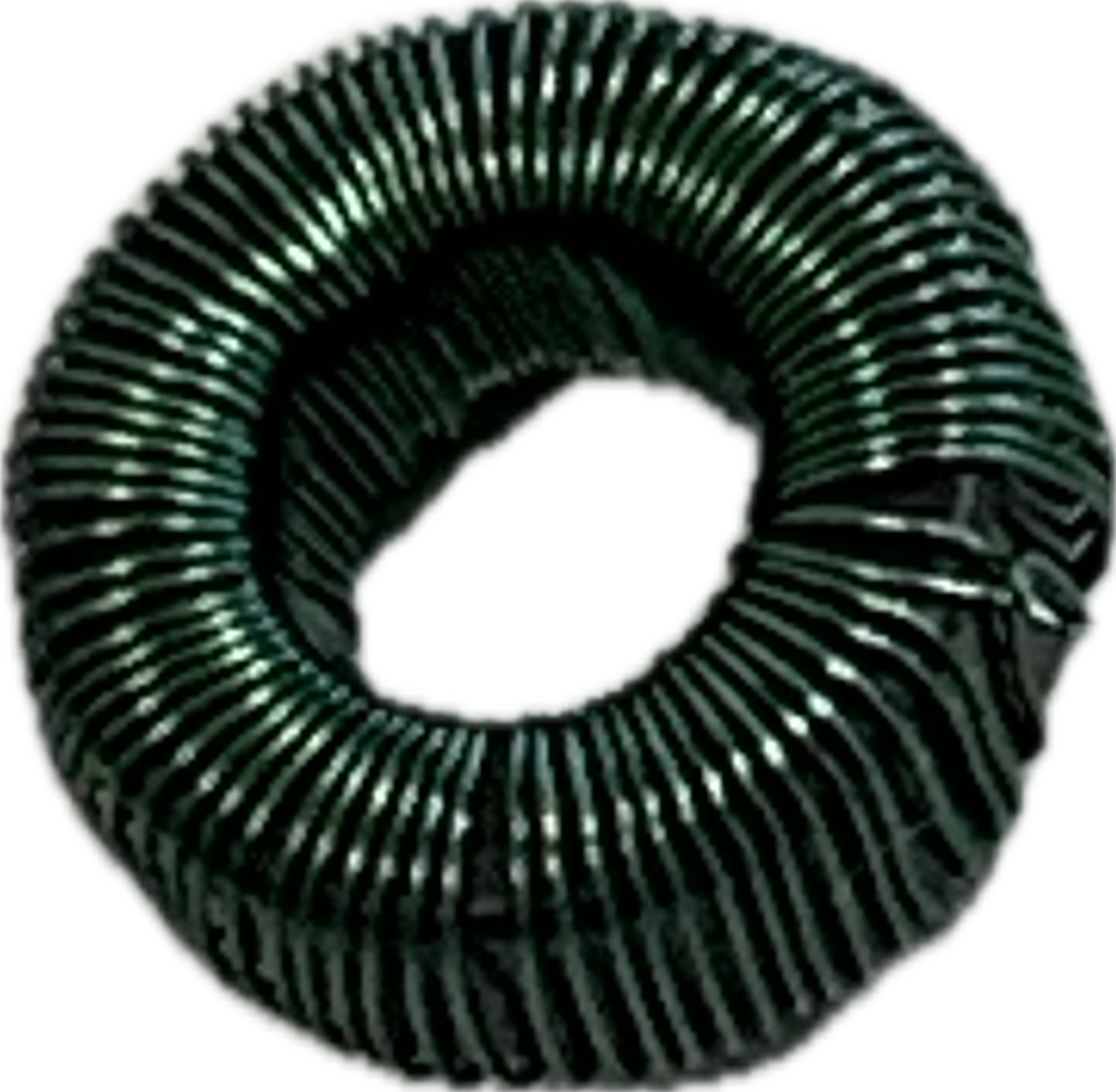

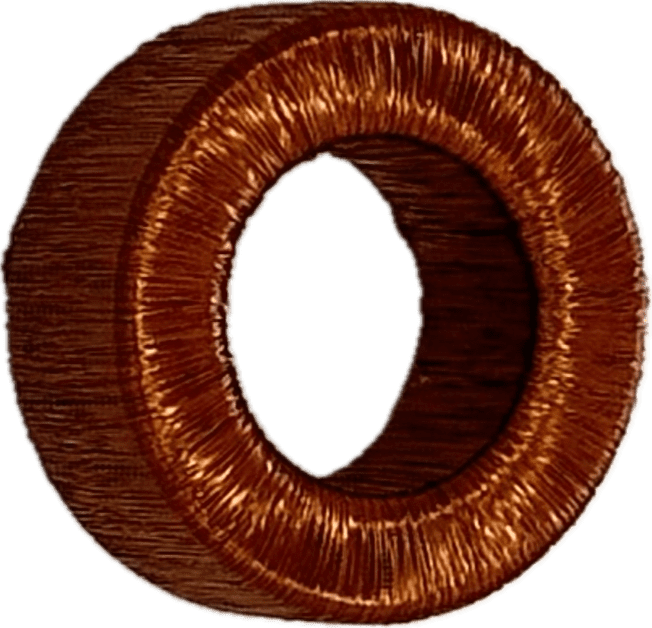

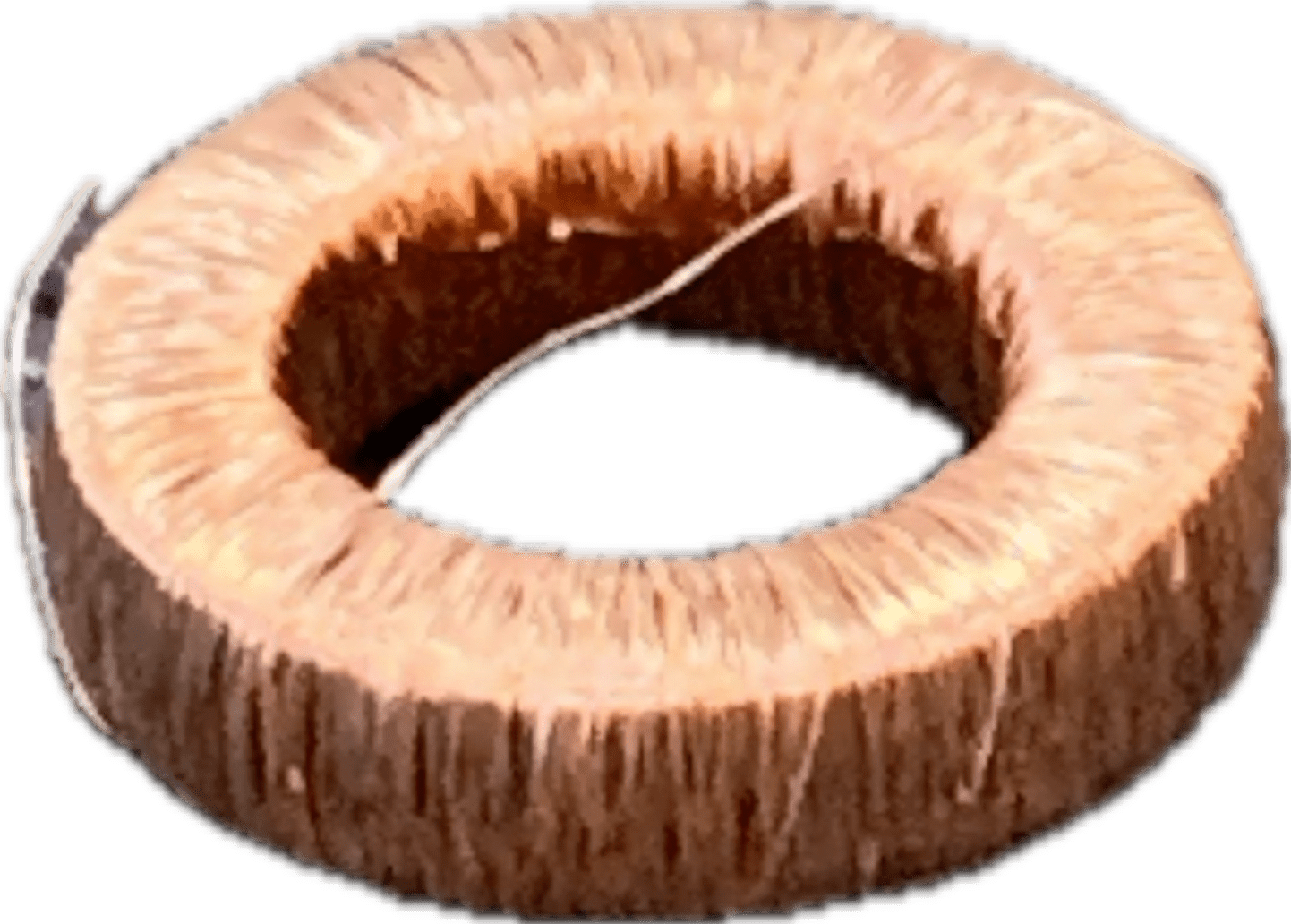

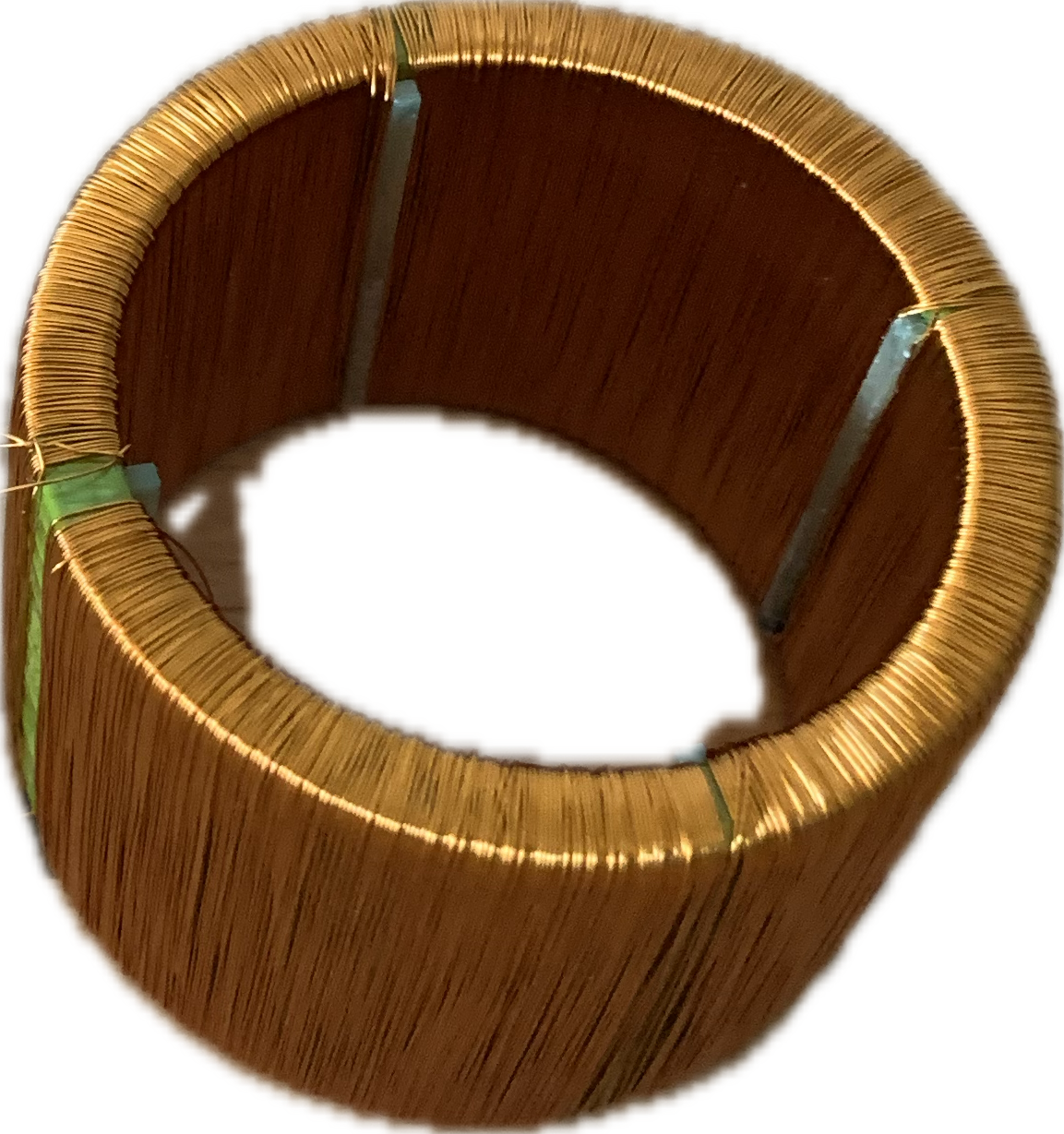

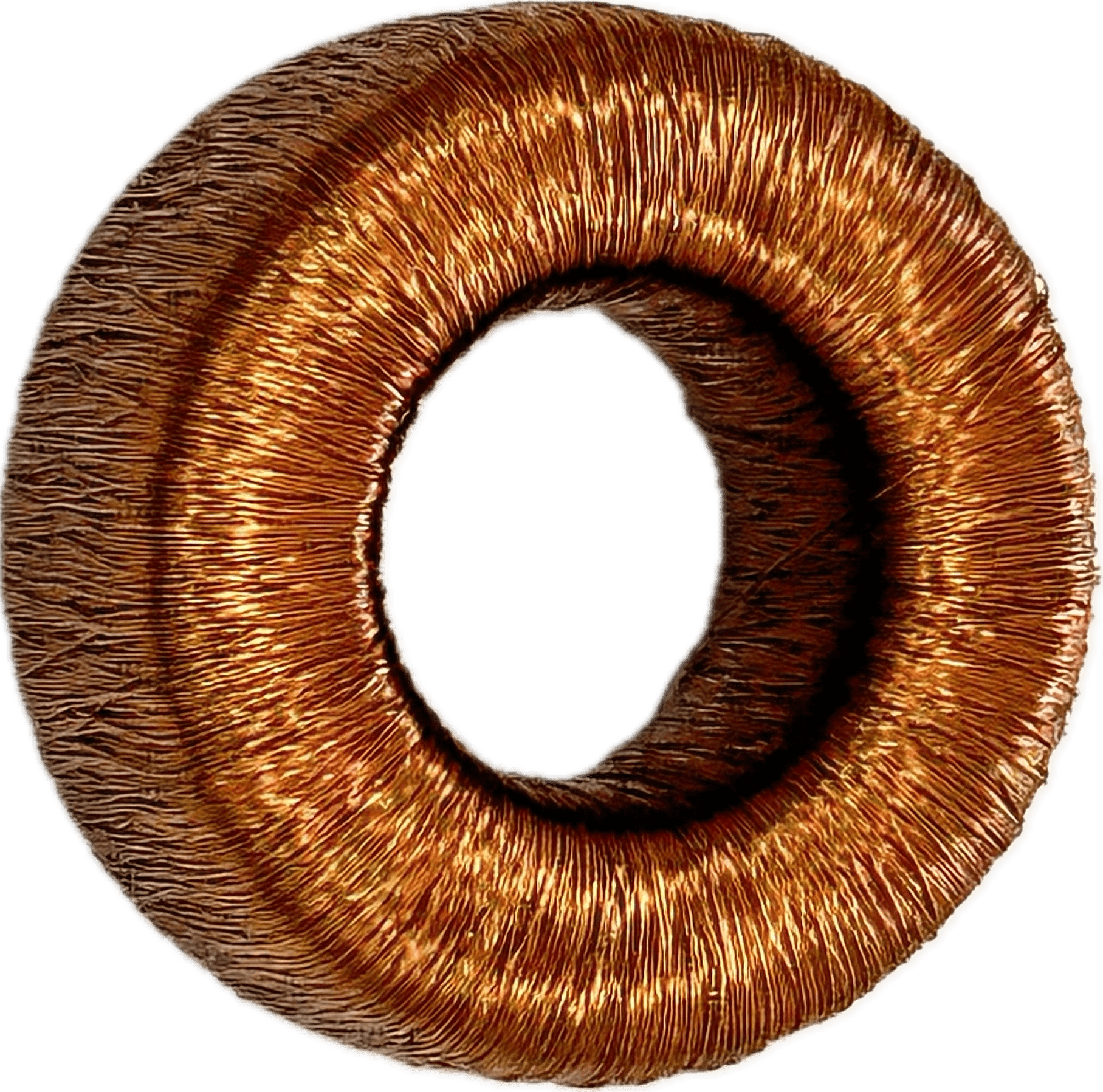

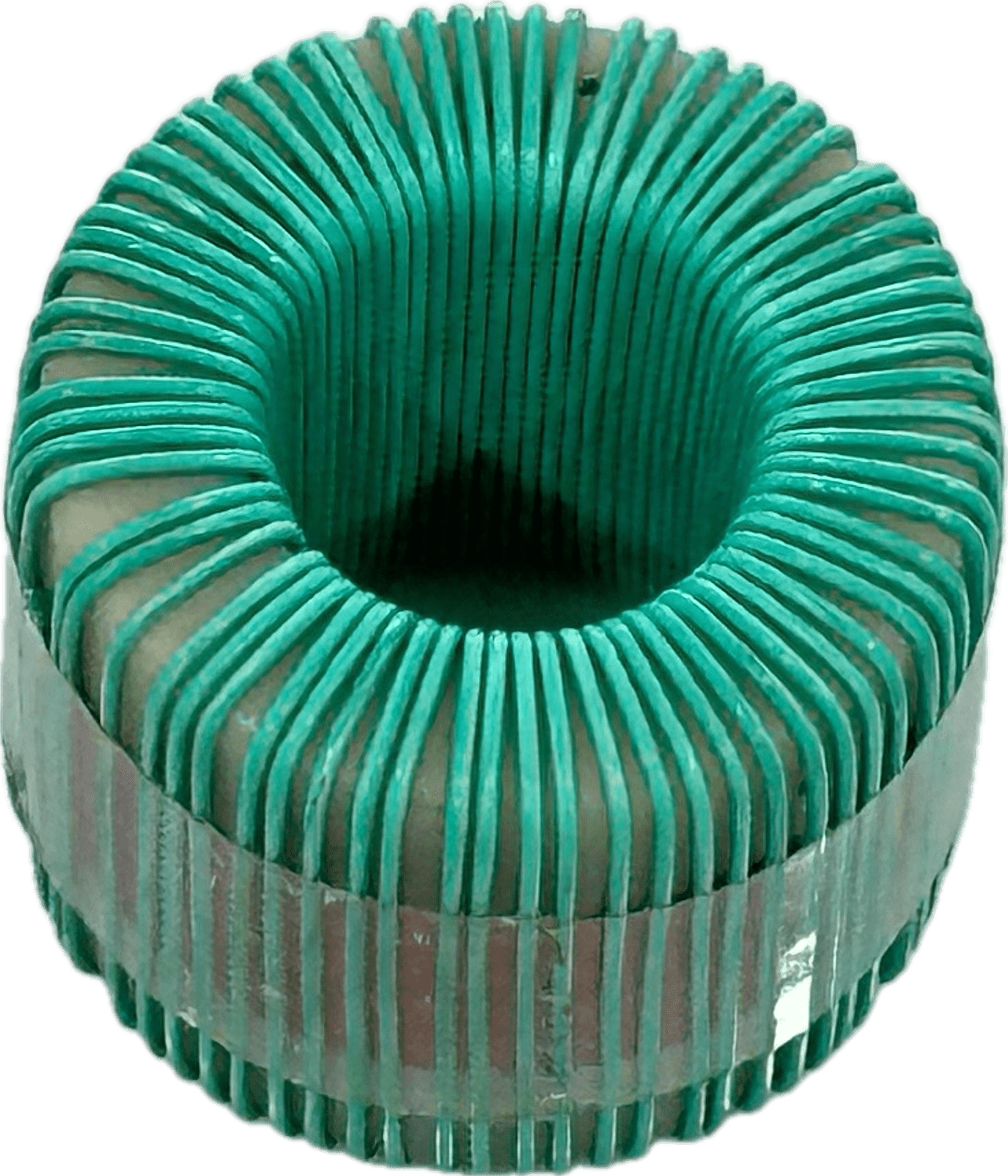

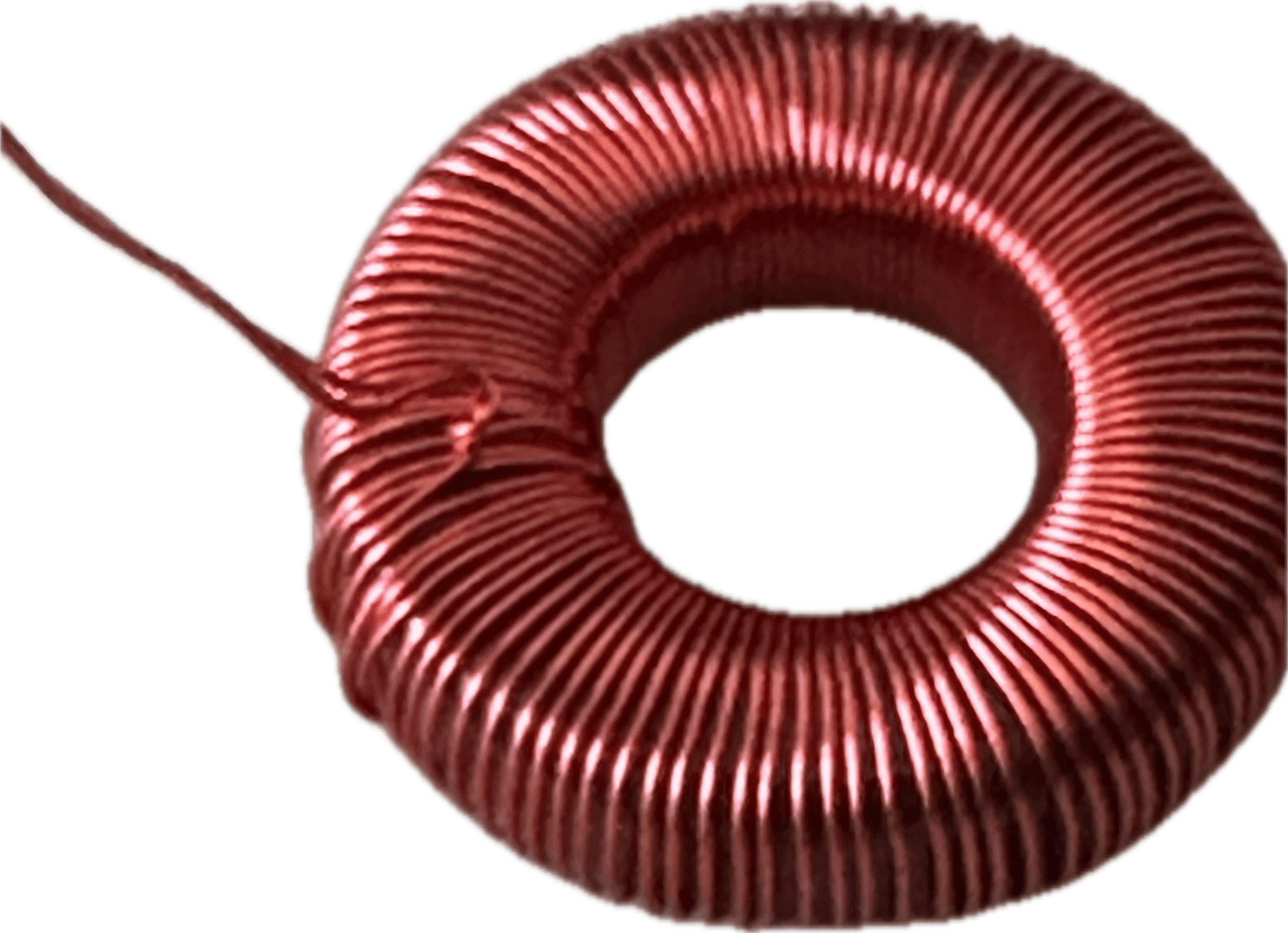

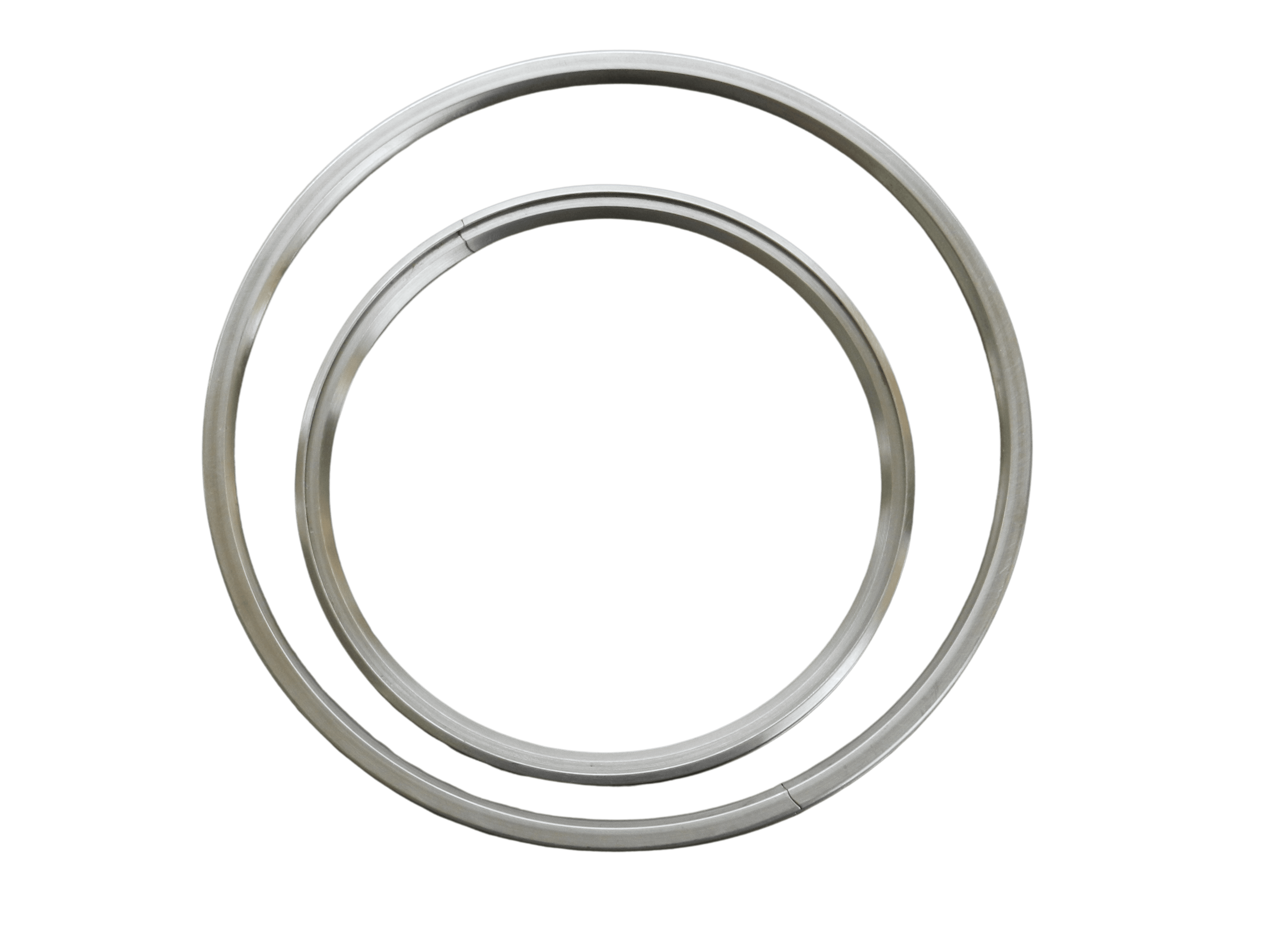

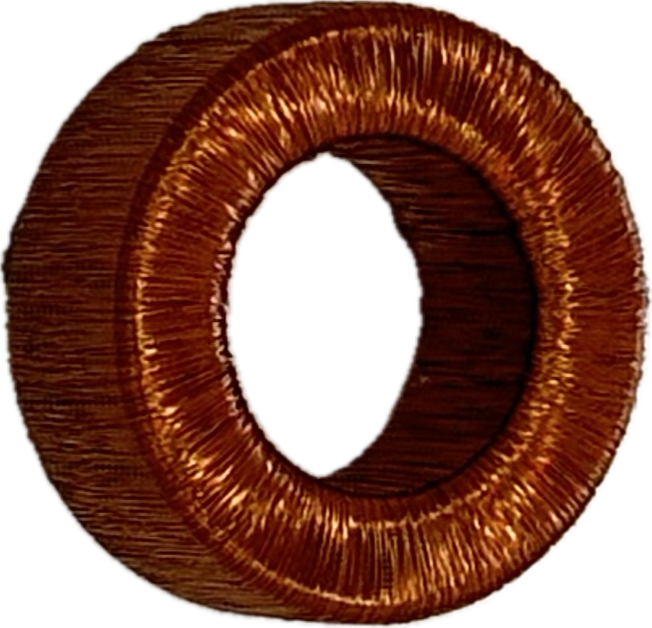

4 inch diameter slider type shuttle to wind toroid’s at high speed for wire 28AWG and higher with ability to wind multiple layer, segment and tapping.
.png)

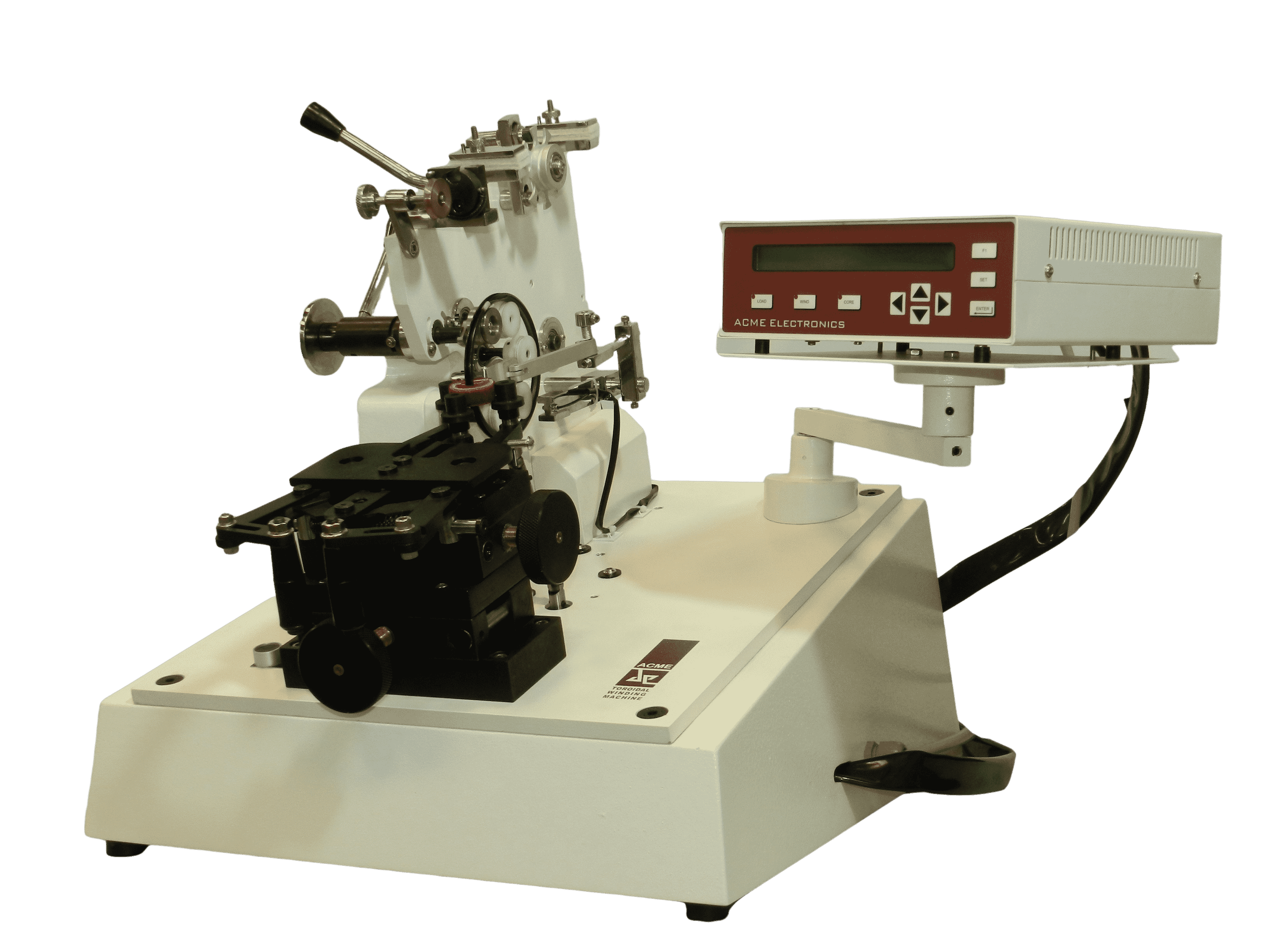

LT-04 Winding Machine
| Inch | mm | |
|---|---|---|
| Finished ID : | 0.30 | 8.0 |
| Finished Height : | 0.70 | 20 |
| Speed(Max) : | 1500 rpm | 1500 rpm |
| Finished OD : | 1.70 | 45 |
| Wire Diameter : | upto 0.020 | 0.40 to 0.10 |
