The AEH series is meticulously designed to cater to the production needs of up to 50HP motor coils. This series provides a programmable successive coil feature with an auto stop-start function, complemented by a programmable wire guiding mechanism boasting a 45-program memory, accommodating up to 16 coils per program.
Precise and Repeatable Operation
With soft start and soft stop features, the AEH series ensures a 0.05 turn accuracy, guaranteeing 100% repeatability in coil winding processes.
Efficient Wire Guiding Mechanism
The programmable wire guiding mechanism enhances flexibility and ease of use, offering a substantial 45-program memory. This allows for versatile configurations with up to 16 coils per program.

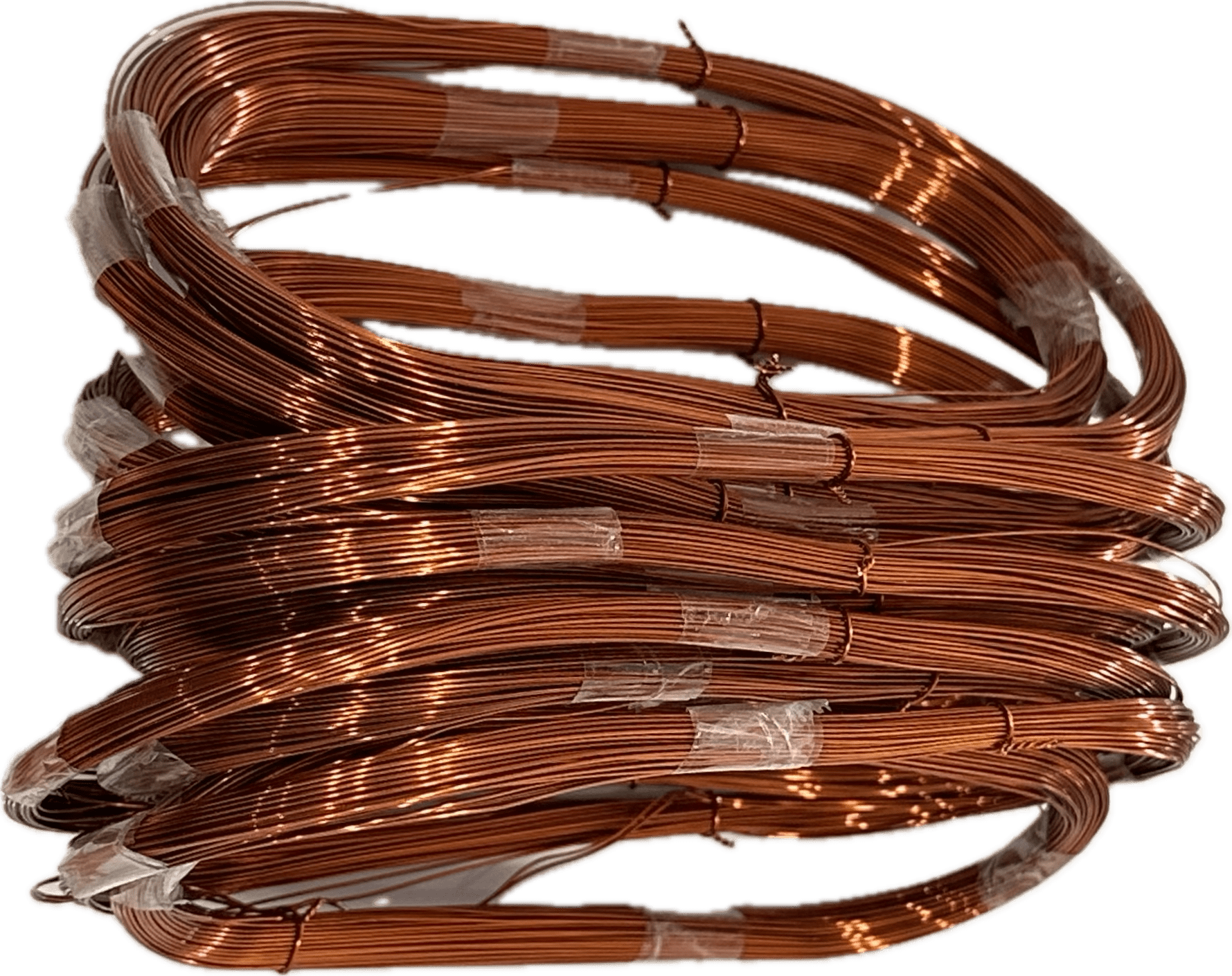

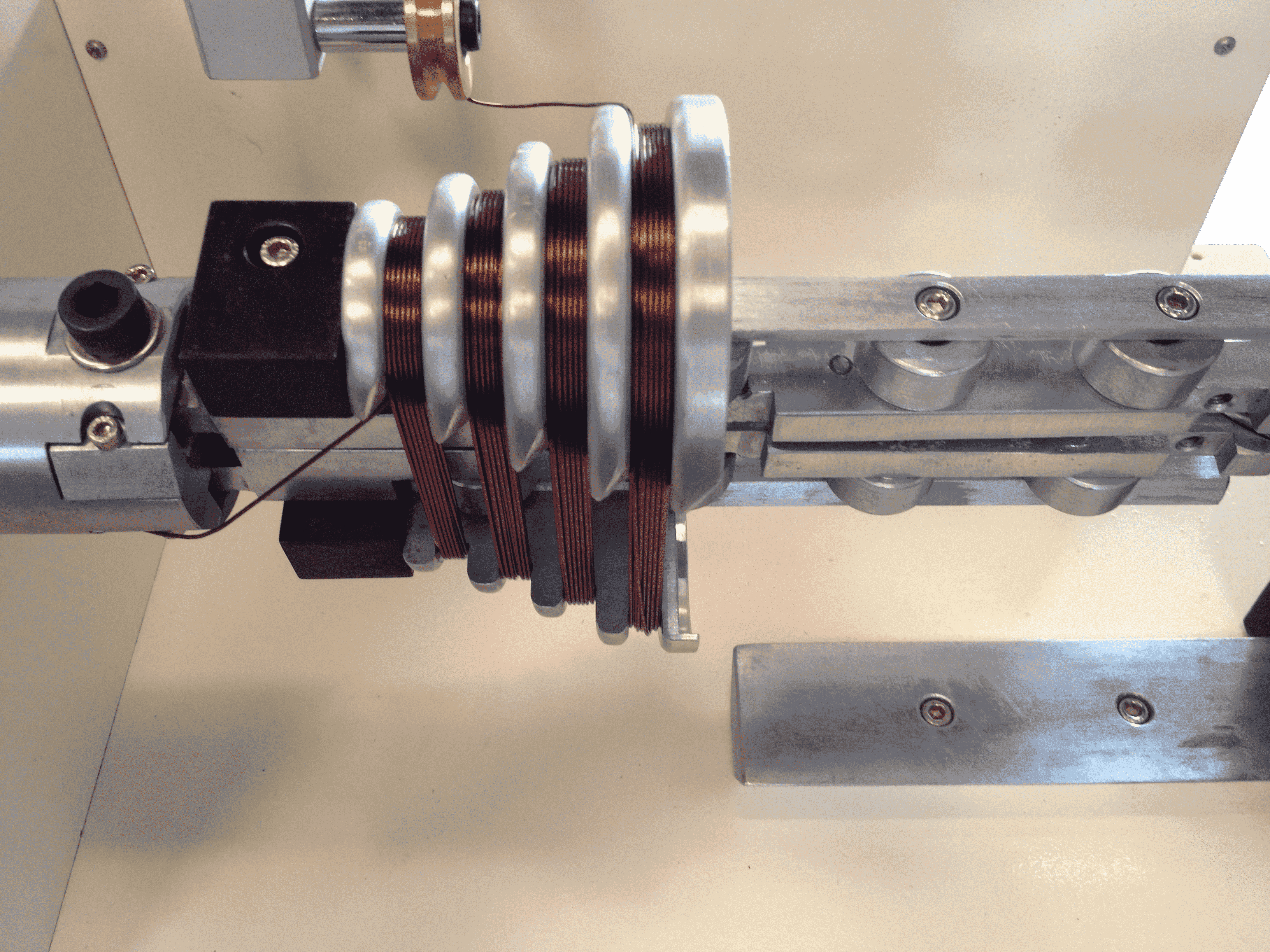

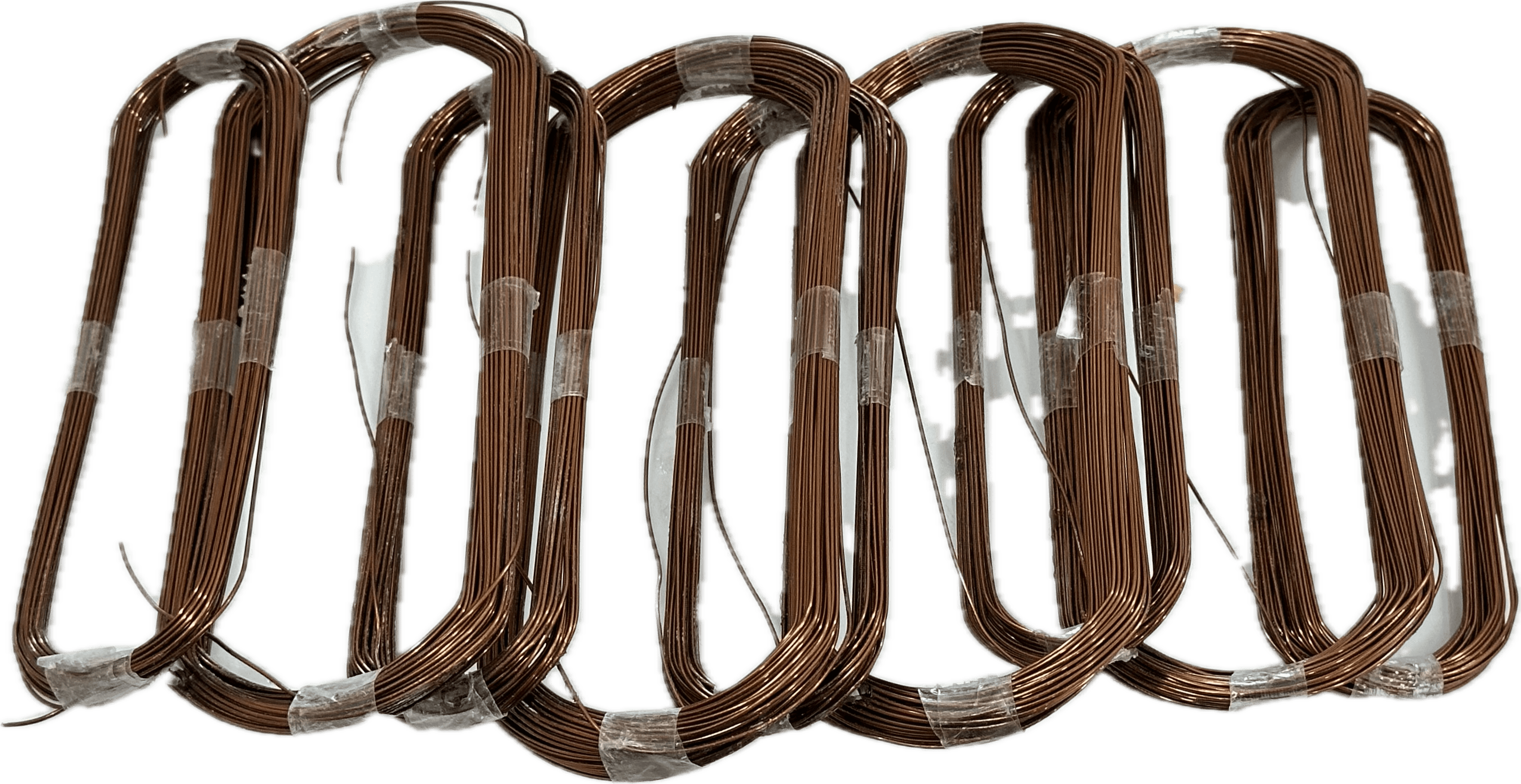

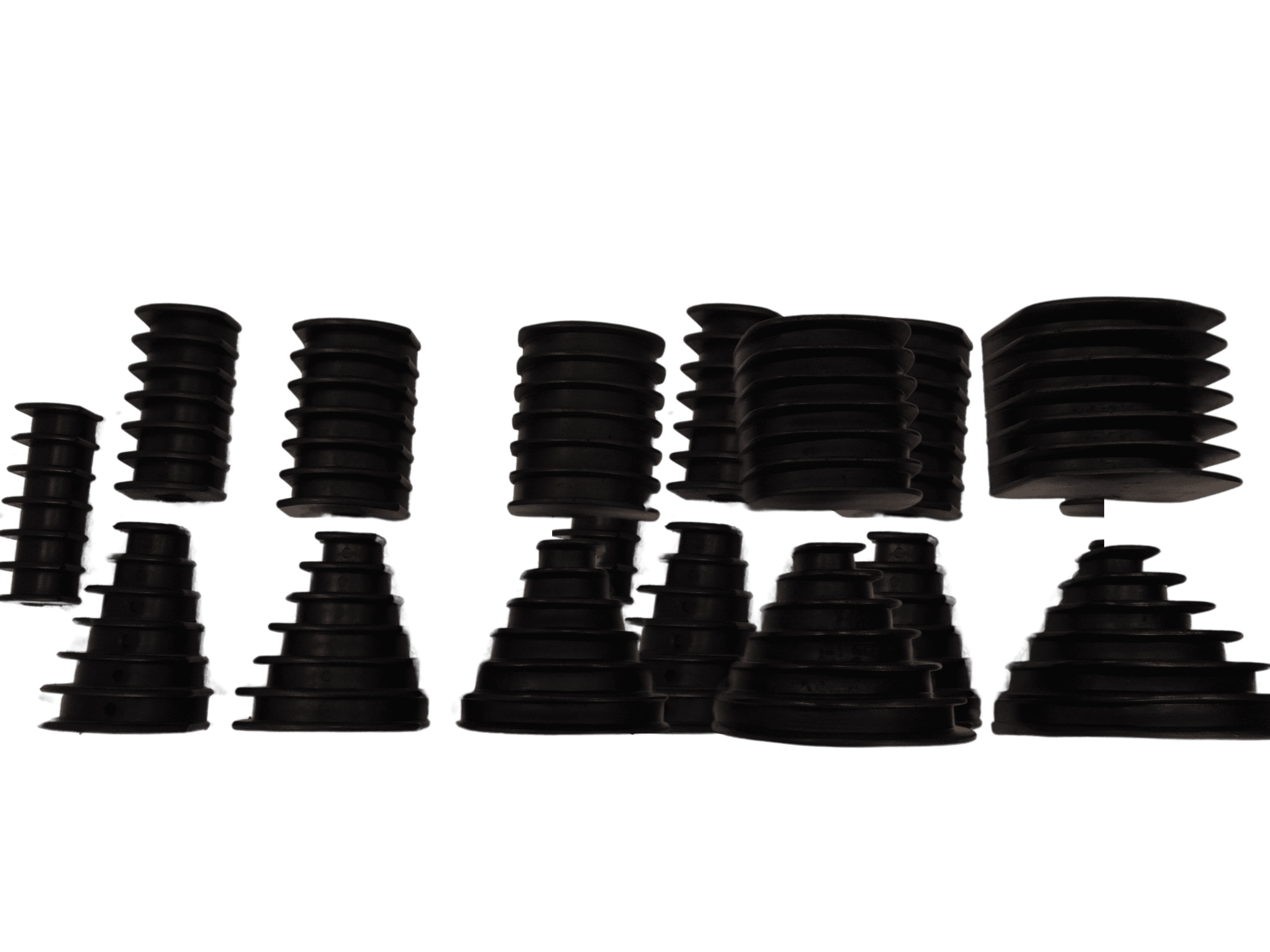

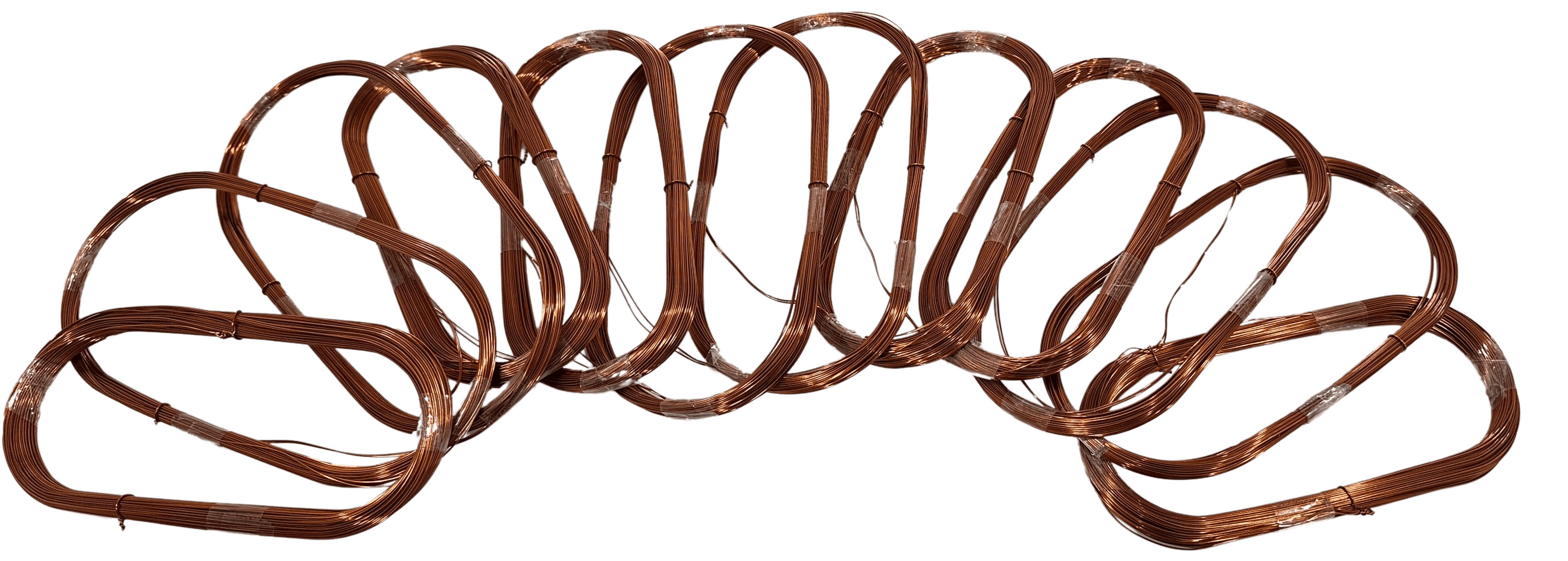

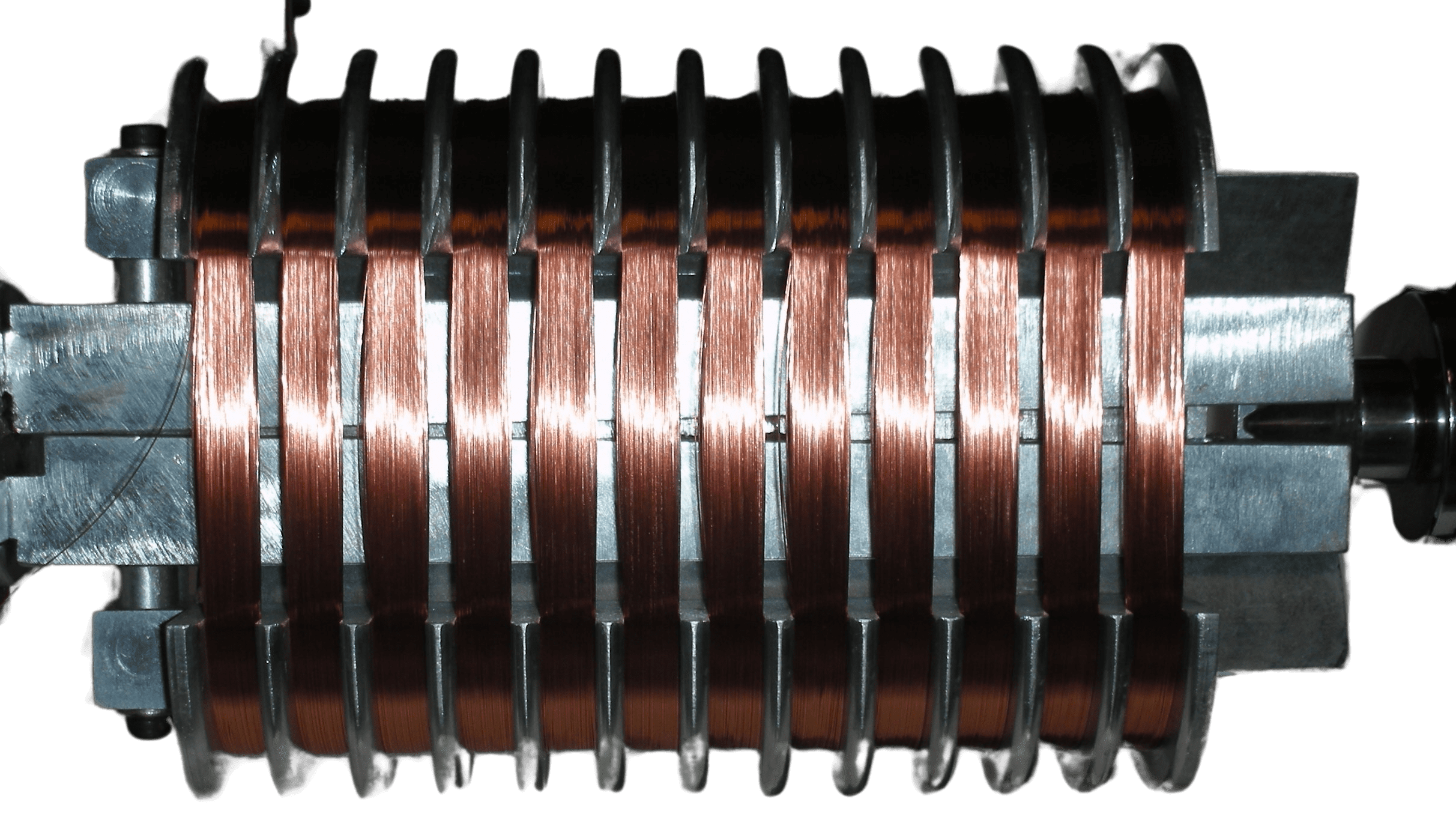

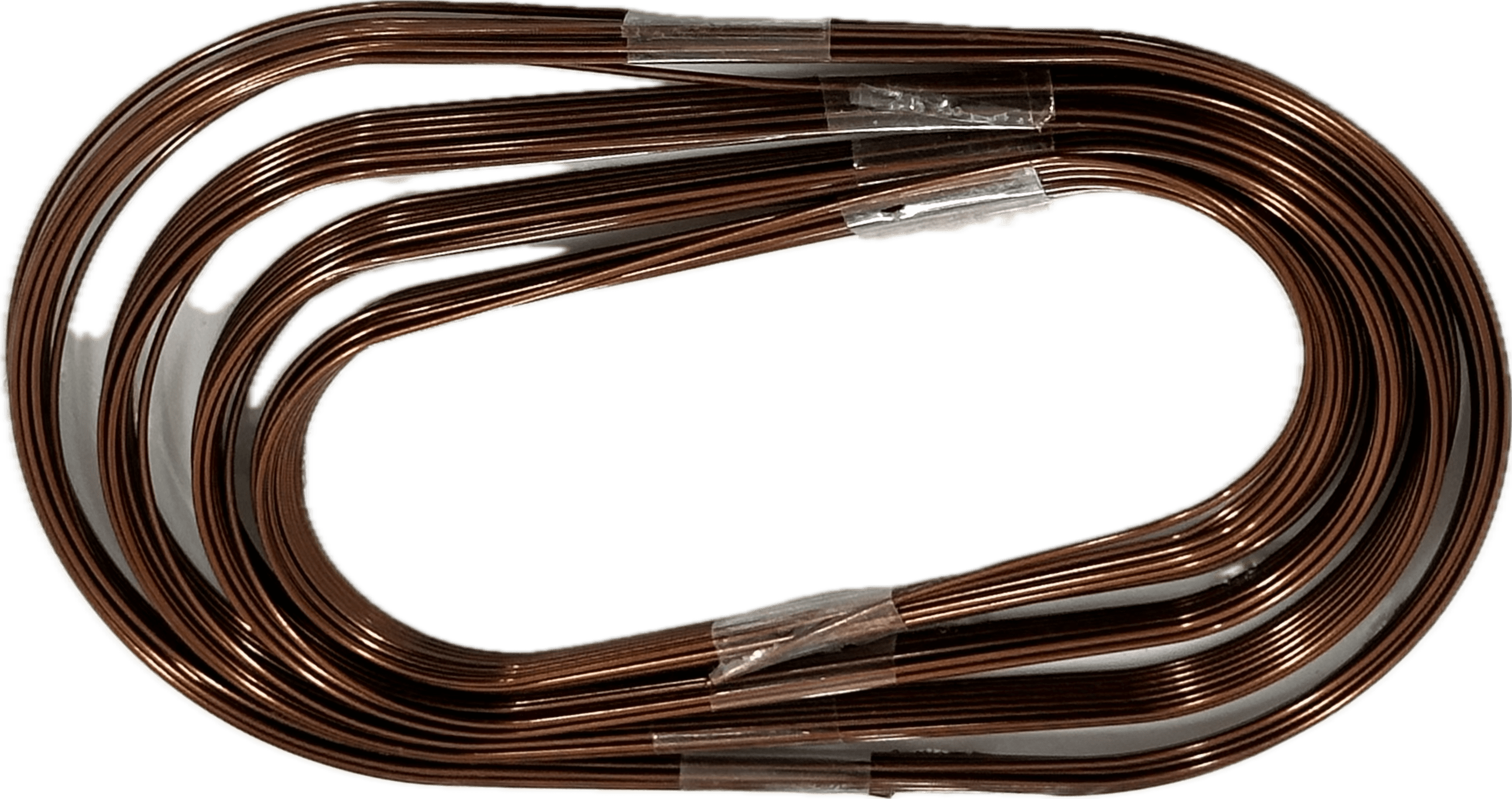

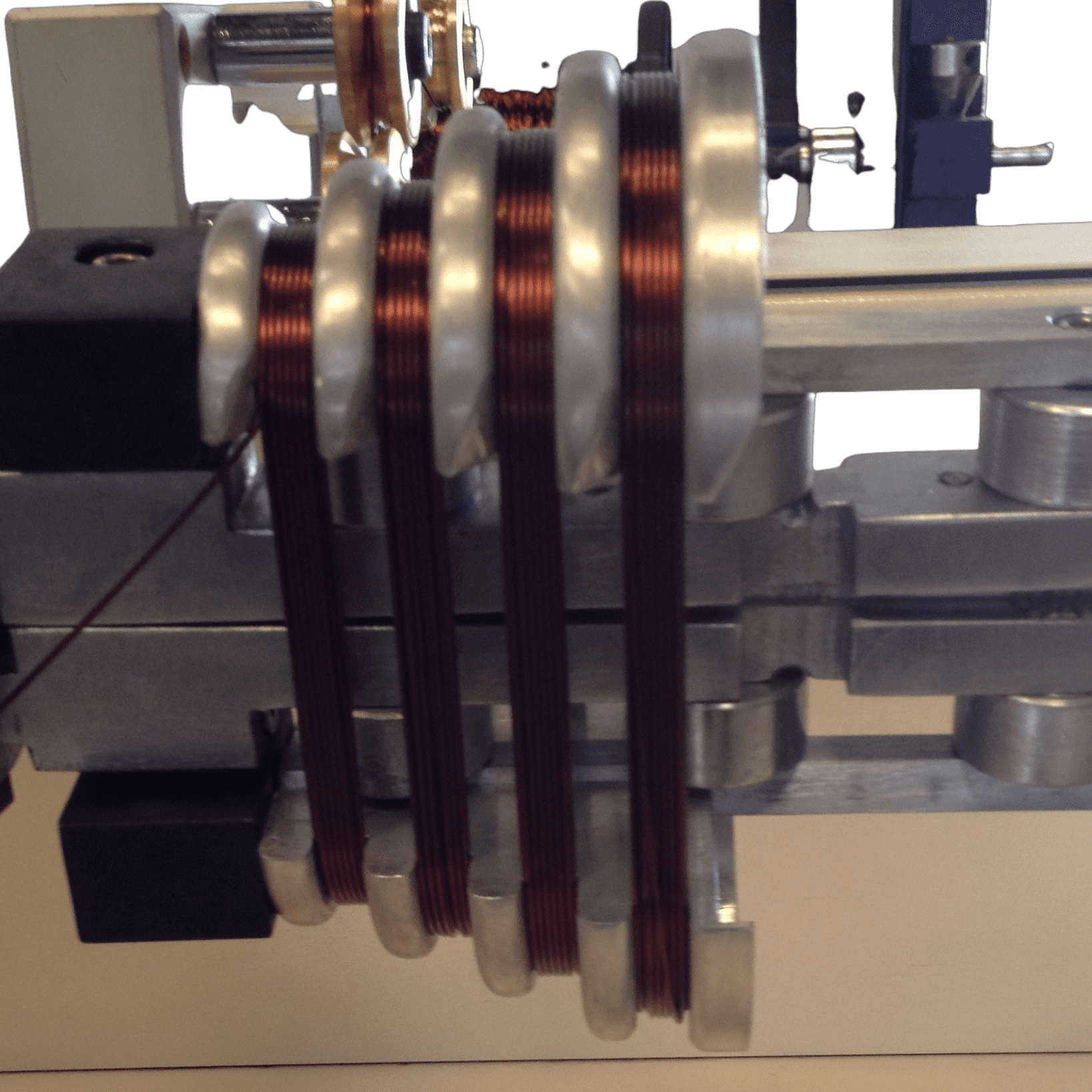

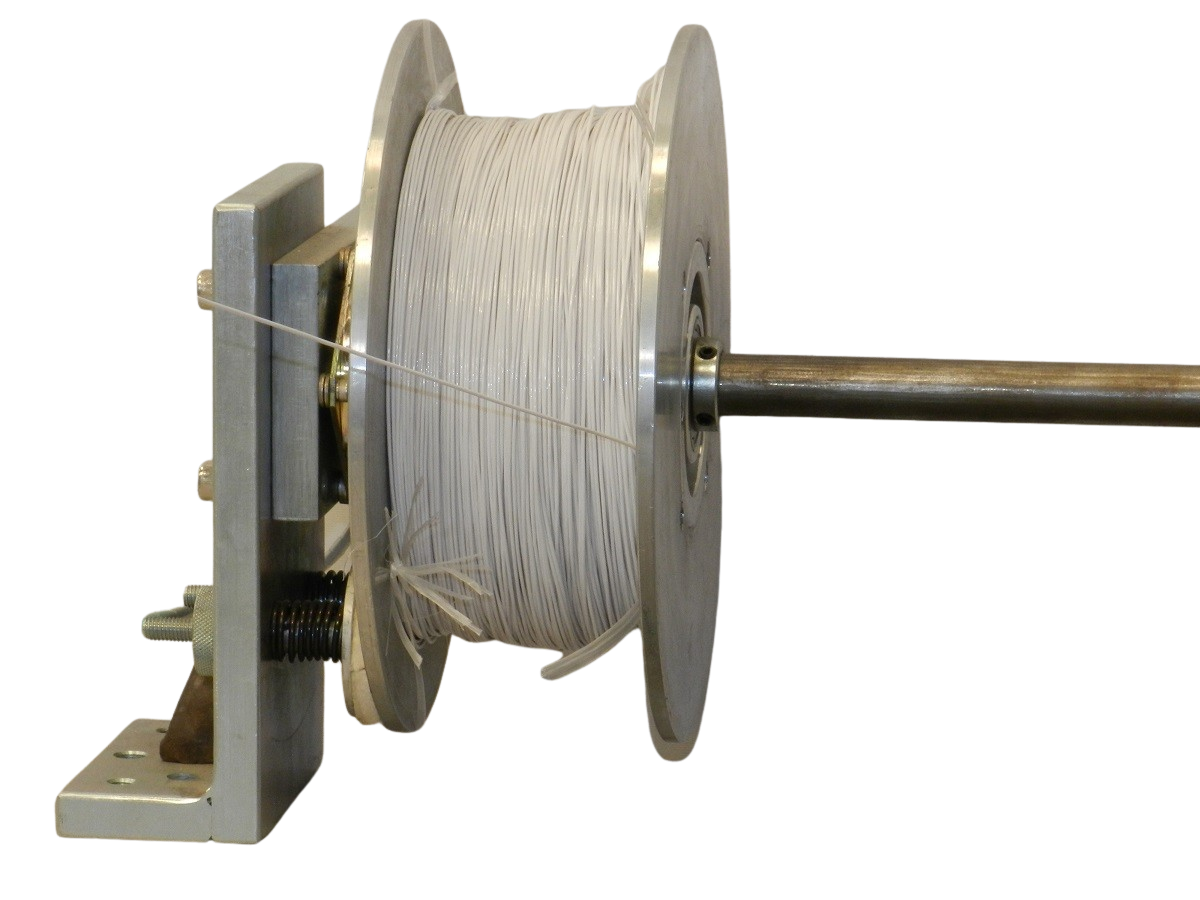

Specialized Mandrel and Former
For quick and efficient loading and unloading of coils, the AEH series provides a special mandrel and former. This feature streamlines the coil handling process, contributing to overall operational efficiency.

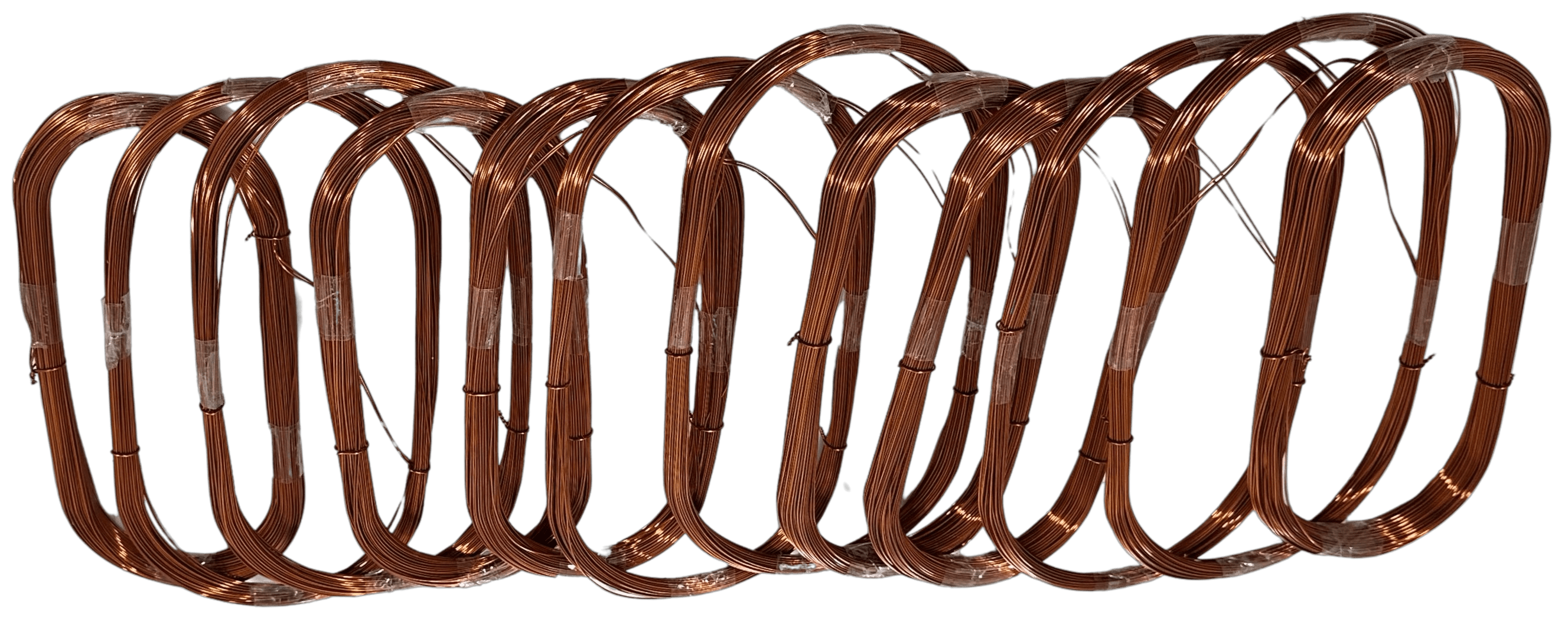

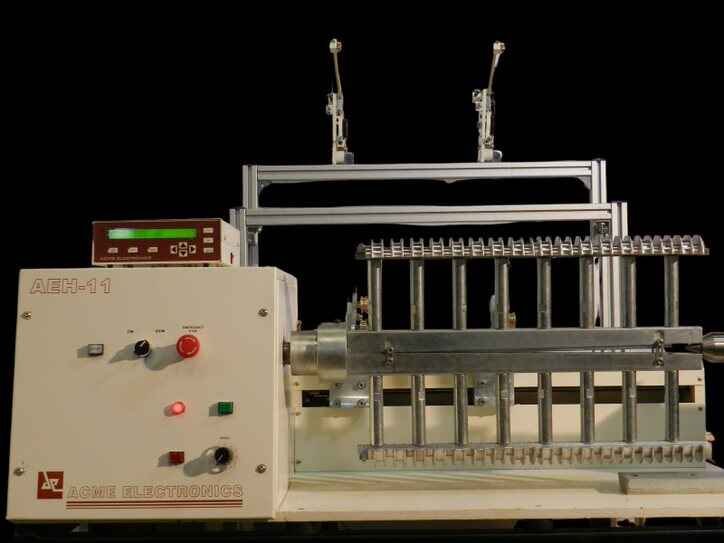

AEH-11
Inch | mm | |
---|---|---|
Spindle Drive | - | 2 H.P. AC Vector |
Winding Width | - | 500mm |
Power Consumption | - | 2500W |
Coil Diameter | - | 500mm(700mm optional) |
Turns | - | Preset upto 16 coils/program |
Wire Diameter | - | 0.1-3.0mm |
Supply Voltage | - | 220V, 3Ph. / 415V, 3Ph |
Face Plate | - | 200mm with 2 slots |
Speed | - | 350rpm |
AEH-01
Inch | mm | |
---|---|---|
Spindle Drive | - | 1H.P. AC Vector |
Winding Width | - | 250mm |
Power Consumption | - | 1000W |
Coil Diameter | - | 250mm(350mm optional) |
Turns | - | Preset upto 16 coils/program |
Wire Diameter | - | 0.1-1.0mm |
Supply Voltage | - | 110V, 1Ph / 220V, 1Ph |
Face Plate | - | 200mm with 2 slots |
Speed | - | 500rpm |
